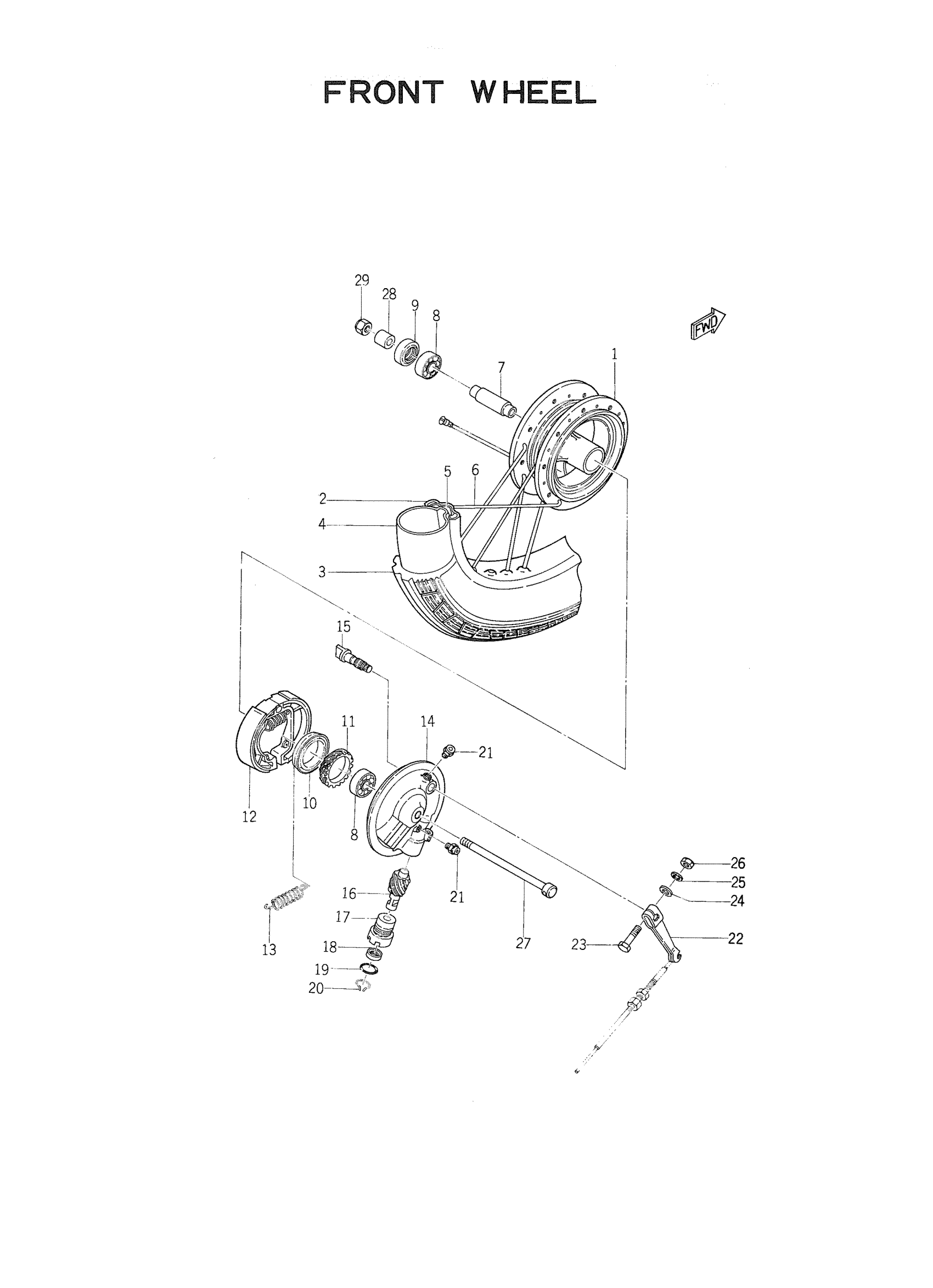

1967 Yamaha U5E (U5E) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

109-25111-00-35

1
Out of stock

2

RIM

94412-16001-00

1
Out of stock

3

TIRE FRONT 225X17

94122-17315-00

1
Out of stock

4

TUBE

94225-17082-00

1
Out of stock

5

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

1
Out of stock

6

SPOKE SET, FRONT

109-25104-00-00

1
Out of stock

7

SPACER, BEARING

109-25117-00-00

1
Out of stock

8

BEARING

93306-20203-00

1

$22.98

In stock

9

OIL SEAL

93106-20001-00

1
Out of stock

10

OIL SEAL, OS-TYPE

93107-42001-00

1
Out of stock

11

GEAR, DRIVE

109-25135-01-00

1
Out of stock

12

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

13

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

14

PLATE, BRAKE SHOE

116-25121-00-35

1
Out of stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

GEAR, METER

141-25138-00-00

1
Out of stock

18

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

19

O-RING (26H)

93210-14579-00

—

$5.69

In stock

20

RING, STOP

102-25137-00-00

—
Out of stock

21

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

22

LEVER, CAMSHAFT 1

109-25155-00-00

1
Out of stock

23

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

AXLE, WHEEL

102-25181-00-00

1
Out of stock

28

COLLAR

90387-10079-00

1
Out of stock

29

NUT,SPEC'L SHAPE

90179-10106-00

1
Out of stock
