1967 Yamaha U5E (U5E) Handle - Cable Diagram

← All diagrams

Find the part on the Handle - Cable diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

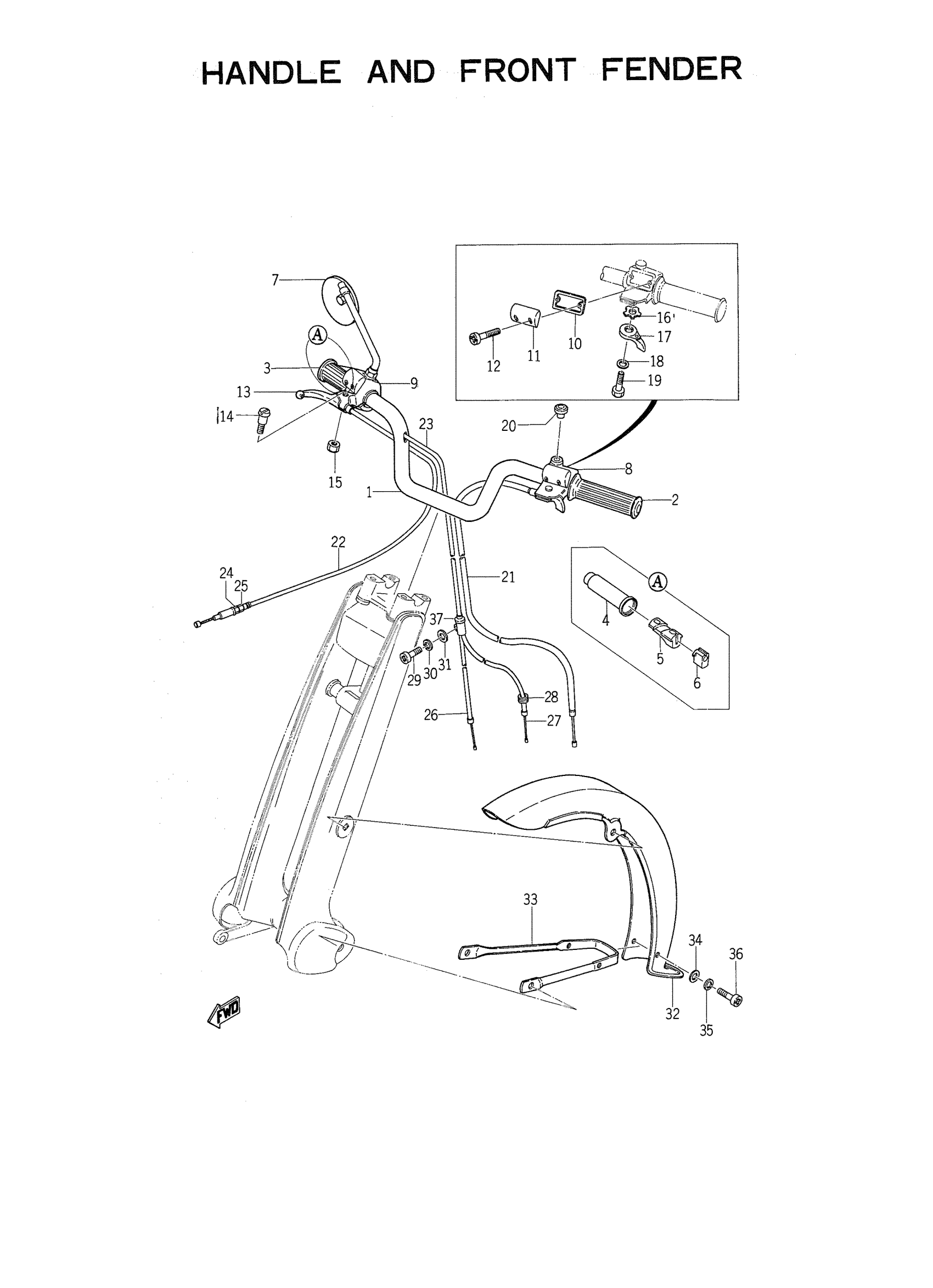

1967 Yamaha U5E (U5E) Handle - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

116-26211-00-00

1
Out of stock

2

GRIP LH

116-26241-00-00

1
Out of stock

3

GRIP RH

116-26242-00-00

1
Out of stock

4

TUBE, THRTL GUIDE

116-26243-00-00

1
Out of stock

5

SLIDER, THROTTLE

116-26244-00-00

1
Out of stock

6

STOPPER, CABLE

116-26245-00-00

1
Out of stock

7

MIRROR

116-26290-02-00

1
Out of stock

8

LEVER HOLDER ASSEMBLY LH

118-82710-00-00

1
Out of stock

9

LEVER HOLDER ASSY RH

118-82720-00-00

1
Out of stock

10

. GASKET, FLASHER LENS

116-83313-10-00

1
Out of stock

11

. COVER, LENS

116-82719-00-00

1
Out of stock

12

SCREW,LENS FITTING

116-83333-10-00

1
Out of stock

13

. LEVER R

116-83922-01-00

1
Out of stock

14

. SCREW, LEVER FITTING

116-83922-00-00

1
Out of stock

15

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

16

WASHER (357)

90209-10131-00

—

$7.94

In stock

17

LEVER,STARTER

116-83941-00-38

1
Out of stock

18

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

19

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

20

PLUG (17J)

90338-07124-00

—

$8.55

In stock

21

CABLE, STARTER

116-26331-00-00

1
Out of stock

22

CABLE,BRAKE

120-26341-00-00

1
Out of stock

23

CABLE, THROTTLE 1

117-26311-00-00

1
Out of stock

24

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

25

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

26

WIRE, THROTTLE 2

117-26312-00-00

1
Out of stock

27

WIRE, PUMP

117-26321-01-00

1
Out of stock

28

GROMMET, WIRE

117-26326-00-00

1
Out of stock

29

SCREW, PAN

98517-06012-00

—

$3.14

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

FENDER,FRONT

116-21511-00-28

1
Out of stock

33

STAY,FENDER 1

116-21513-01-00

1
Out of stock

34

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

35

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

36

SCREW

92503-05008-00

1
Out of stock

37

CYLINDER

116-26261-01-00

1
Out of stock
