1976 Yamaha TZ350 (TZ350C) Frame Diagram

← All diagrams

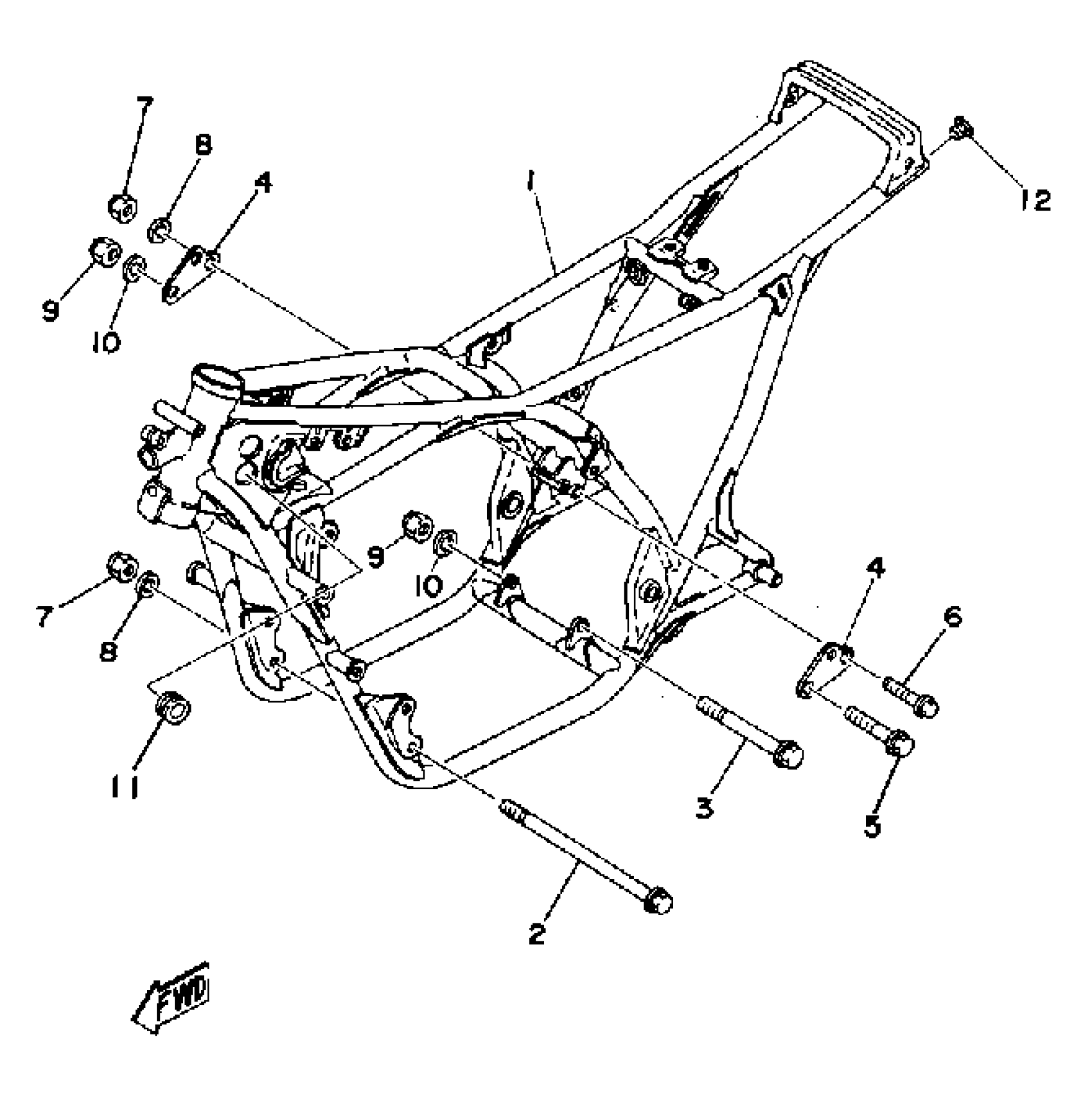

Find the part on the Frame diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TZ350 (TZ350C) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1H3-21110-00-33)

1
Out of stock

1

FRAME

(1H3-21110-01-33)

1
Out of stock

2

BOLT, WASHER BASED

90105-08034-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

1H3-21315-00-00

1
Out of stock

3

BOLT

90101-10313-00

1
Out of stock

3

BOLT

90101-10313-00

1
Out of stock

5

BOLT, FLANGE

95817-10060-00

1
Out of stock

6

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

1

$6.02

In stock

10

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

11

GROMMET (1H3)

90480-28191-00

1

$9.51

In stock

12

GROMMET

(90480-19030-00)

1
Out of stock

13

STAY, ENGINE 3

(1H3-21316-00-00)

1
Out of stock

14

STAY, ENGINE 5

(1H3-21318-00-00)

1
Out of stock

15

STAY, ENGINE 4

(1H3-21317-00-00)

1
Out of stock

16

STAY, ENGINE 6

(1H3-21319-00-00)

1
Out of stock

17

BOLT, FLANGE

95817-08060-00

—

$3.28

In stock

18

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

19

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

20

STAY, ENGINE 1

1H3-21314-00-00

1
Out of stock

21

STAY, ENGINE 7

(1H3-21387-00-00)

1
Out of stock

22

BOLT, FLANGE

95817-08075-00

—

$3.37

In stock

23

GAUGE, LEVEL

(1H3-15361-00-00)

1
Out of stock
