1976 Yamaha TZ350 (TZ350C) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

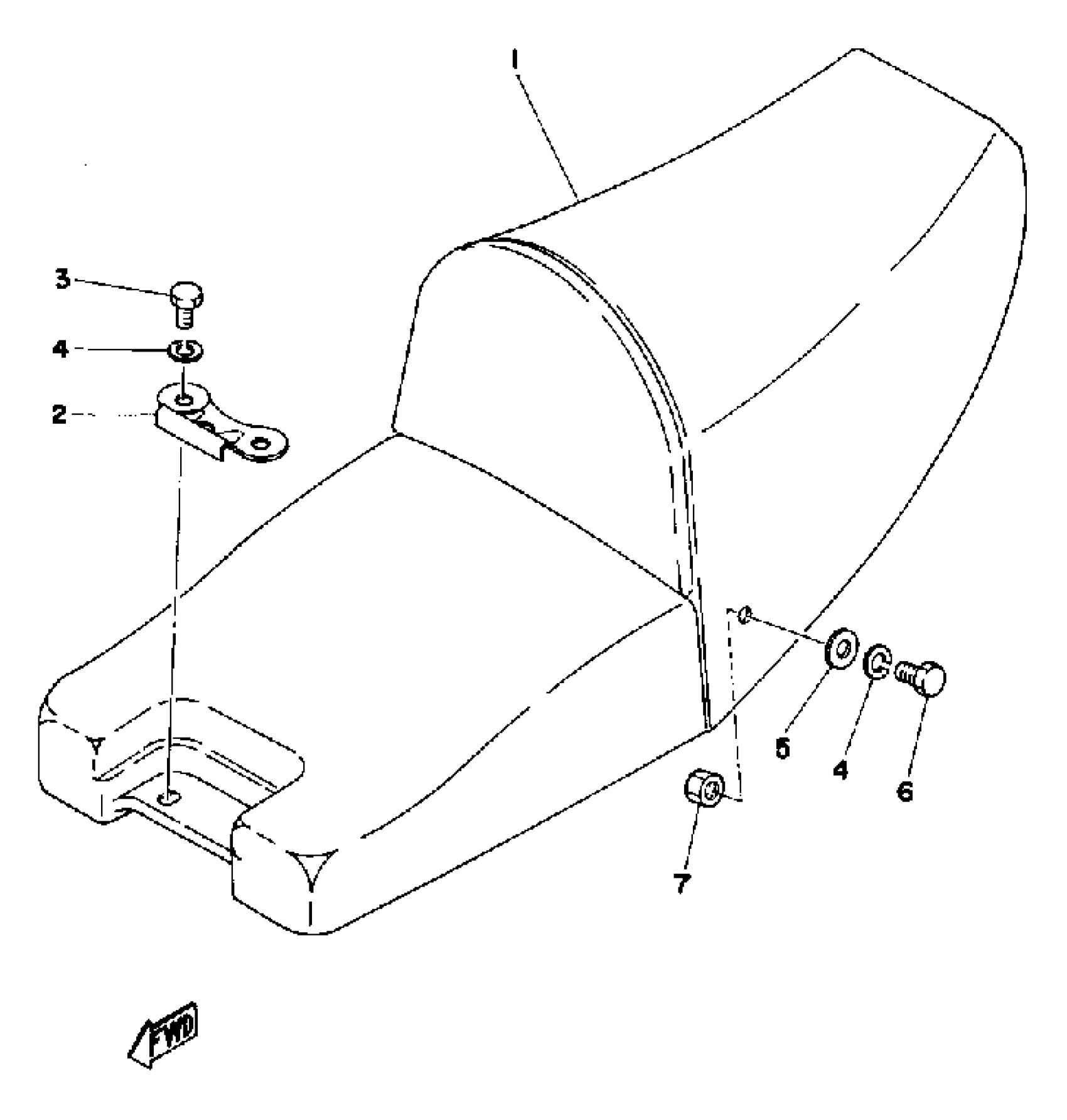

1976 Yamaha TZ350 (TZ350C) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

(1H3-24710-02-00)

1
Out of stock

2

BRACKET, TANK FTNG

(1H3-21345-00-00)

1
Out of stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

6

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock
