1986 Yamaha Trial (TY350S) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

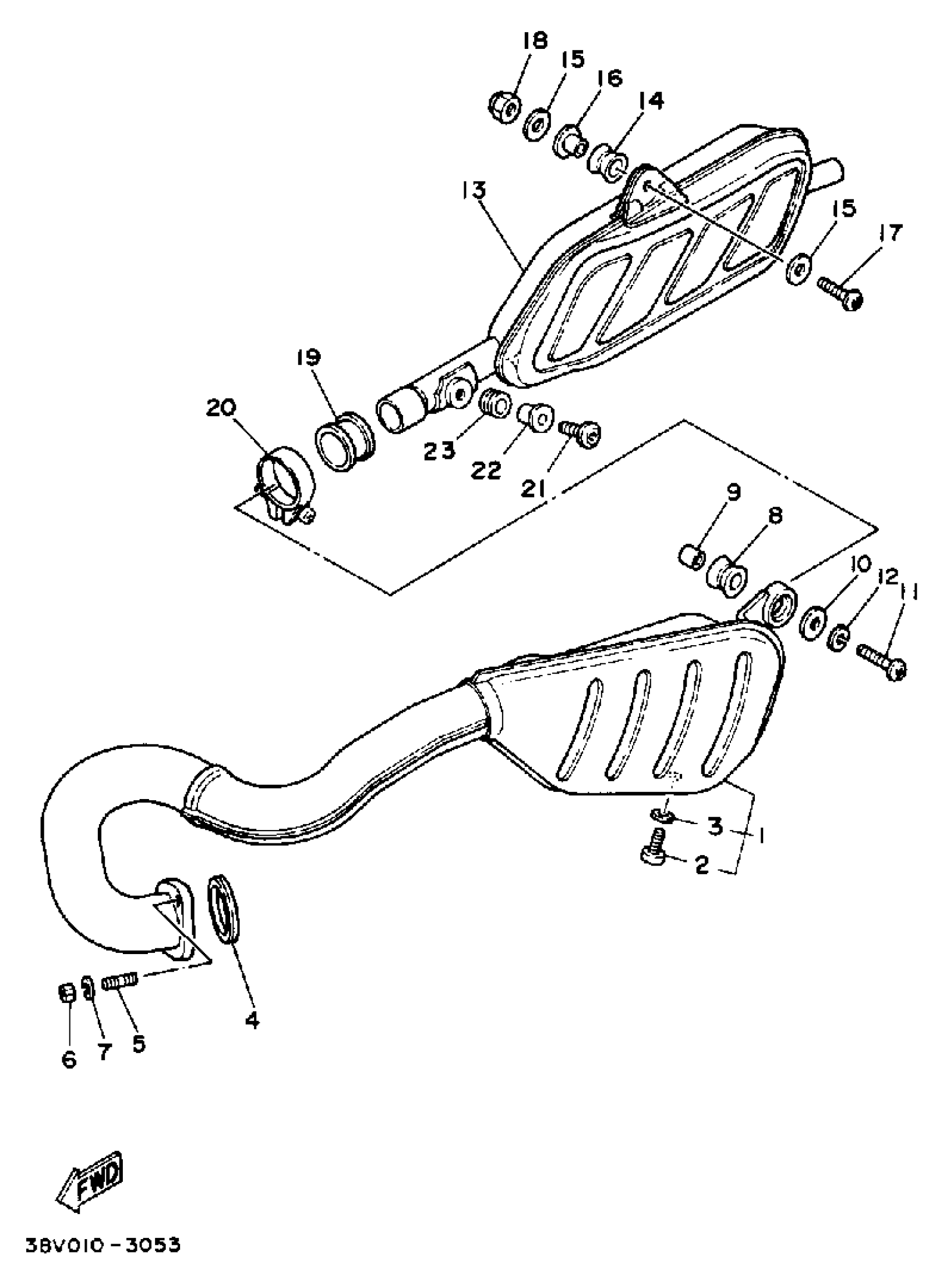

1986 Yamaha Trial (TY350S) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY 1

38V-14610-00-00

1
Out of stock

2

SCREW, BINDING

98907-06008-00

1

$6.68

In stock

3

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

4

GASKET,EXHAUSTPIPE

38V-14613-10-00

1
Out of stock

5

BOLT, STUD(2GG)

95617-08620-00

1

$4.95

In stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

DAMPER

565-14747-00-00

—
Out of stock

9

COLLAR (437)

90387-08258-00

1
Out of stock

10

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

11

1

$7.02

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

SILENCER ASSEMBLY

46Y-14750-00-00

1
Out of stock

14

DAMPER

565-14747-00-00

—
Out of stock

15

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

16

COLLAR 46Y

90387-081K6-00

1
Out of stock

17

1

$7.02

In stock

18

NUT, U

95617-08100-00

—

$6.78

In stock

19

GASKET, MUFFLER

5X8-14714-00-00

1
Out of stock

20

CLAMP, HOSE

90460-39202-00

1
Out of stock

21

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

—
Out of stock

22

COLLAR (21X)

90387-093H1-00

—

$8.29

In stock

23

DAMPER, FRONT

168-21638-00-00

—

$8.52

In stock
