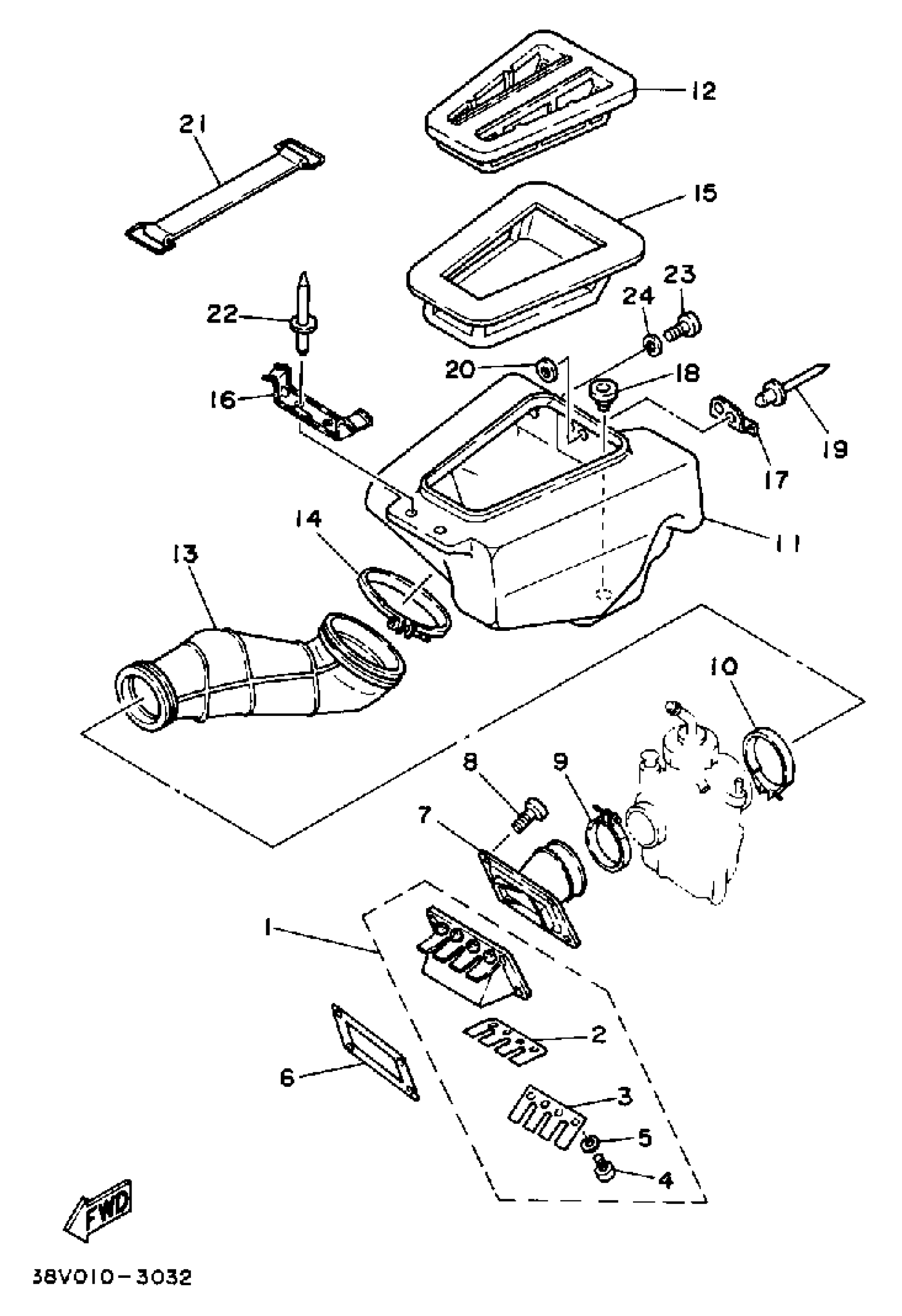

Yamaha TY350S (TRIAL) 1986 AIR CLEANER Diagram

#

Description
Price

1

REED VALVE ASSY

46Y-13610-00-00

Unavailable

2

REED, VALVE

8AT-13613-00-00

$26.98

3

STOPPER, REED VALVE

(46Y-13616-00-00)

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

5

WASHER, SPRING

92990-03100-00

$5.75

6

GASKET, MANIFOLD

8Y7-13556-01-00

$6.46

7

JOINT, CARBURETOR

38V-13565-00-00

Unavailable

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

CLAMP, HOSE (5H0)

90460-43179-00

$15.59

10

CLAMP HOSE 278144550000

90460-49058-00

$6.29

11

CASE, AIR CLEANER 1

38V-14411-00-00

Unavailable

12

CAP, CLEAN CASE 1

38V-14412-00-00

Unavailable

13

JOINT,AIR CLEAN 1

38V-14453-00-00

Unavailable

14

CLAMP, HOSE

90460-01186-00

Unavailable

15

ELEMENT, AIR CLEANER

38V-14451-01-00

Unavailable

16

STAY 1

(38V-14493-00-00)

Unavailable

17

HOOK

26A-14436-00-00

Unavailable

18

GROMMET

(90480-09211-00)

Unavailable

19

RIVET, BLIND

90267-40029-00

Unavailable

20

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

21

BAND, BATTERY

133-82131-00-00

Unavailable

22

RIVET, BLIND 46Y

(90267-40043-00)

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

24

WASHER, SPRING

92995-06100-00

$2.95
