1986 Yamaha Trial (TY350S) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

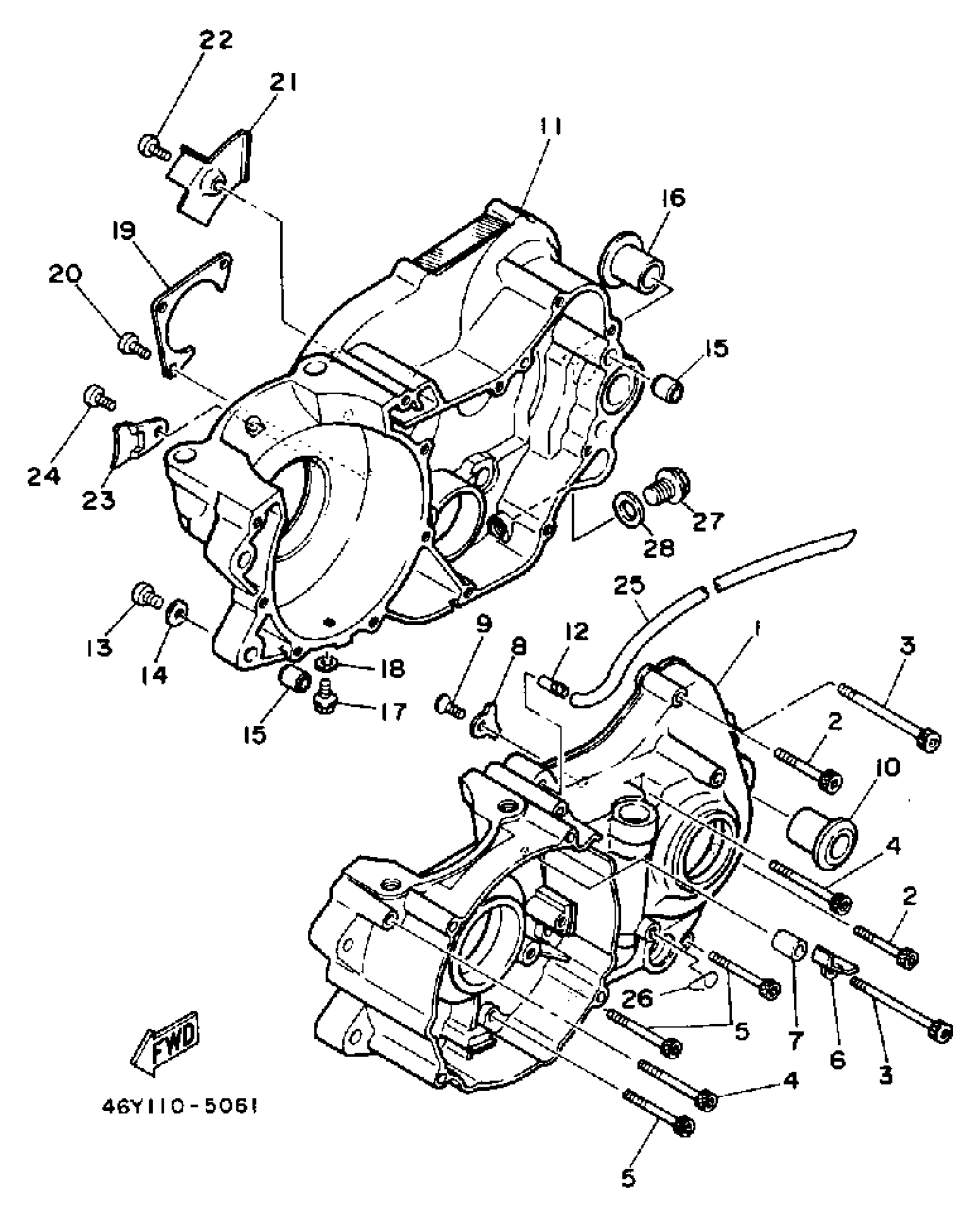

1986 Yamaha Trial (TY350S) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(38V-15111-01-00)

1
Out of stock

2

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

3

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

4

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

5

BOLT,SOCKET

91317-06045-00

1
Out of stock

6

CLAMP (46Y)

(90465-16279-00)

1
Out of stock

7

COLLAR(1AE)

90387-060N3-00

1

$8.74

In stock

8

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

9

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

10

COLLAR

90387-160H4-00

1
Out of stock

11

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

12

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

13

UNAVAILABLE IN PRICE BOOK

92506-80100-0

1
Out of stock

14

WASHER, PLATE (33N)

90201-084G3-00

—
Out of stock

15

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

16

COLLAR

90387-160H4-00

1
Out of stock

17

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

18

GASKET (4V2)

90430-06166-00

—

$3.45

In stock

19

PLATE, BEARING COVER

23X-15381-00-00

1
Out of stock

20

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

21

HOLDER

3R4-15118-00-00

1
Out of stock

22

SCREW, PAN

98507-08010-00

—
Out of stock

23

PLATE

5X5-15113-00-00

1
Out of stock

24

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

25

HOSE 46Y

(90445-081A0-00)

1
Out of stock

26

CLAMP

90465-20035-00

1
Out of stock

27

—

$2.82

In stock

28

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
Crankcase Cover →
