1986 Yamaha Trial (TY350S) Electrical 1 Diagram

← All diagrams

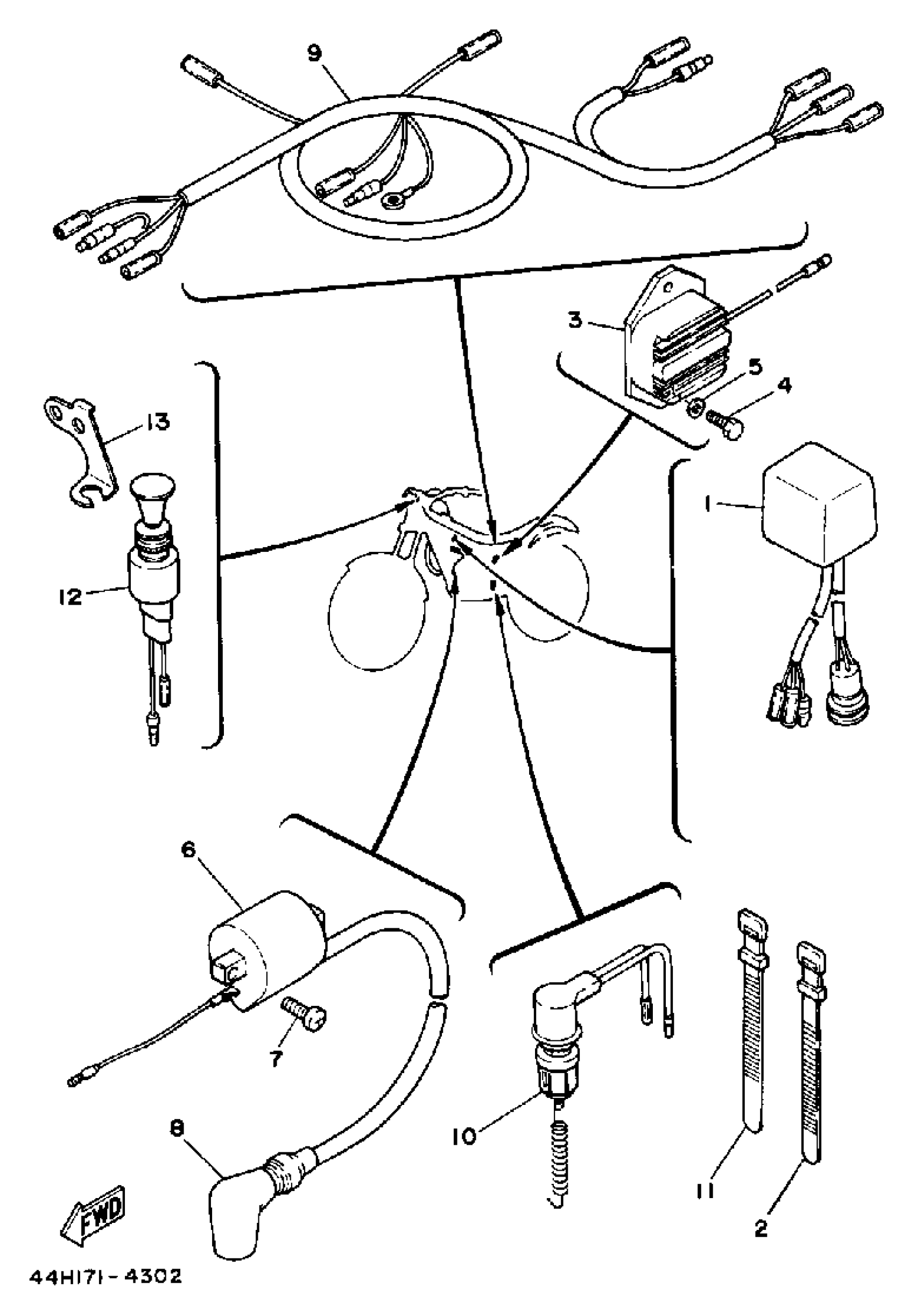

Find the part on the Electrical 1 diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

38V-85540-20-00

1
Out of stock

2

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

3

VOLTAGE REG ASY

443-81910-62-00

1
Out of stock

4

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

9

WIRE HARNESS ASSEMBLY

44H-82590-00-00

1
Out of stock

10

STOP SWITCH ASSY

5R2-82530-03-00

—
Out of stock

11

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

12

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

1
Out of stock

13

STAY, LAMP SWITCH

44H-82527-00-00

1
Out of stock
