1986 Yamaha Trial (TY350S) Headlight Diagram

← All diagrams

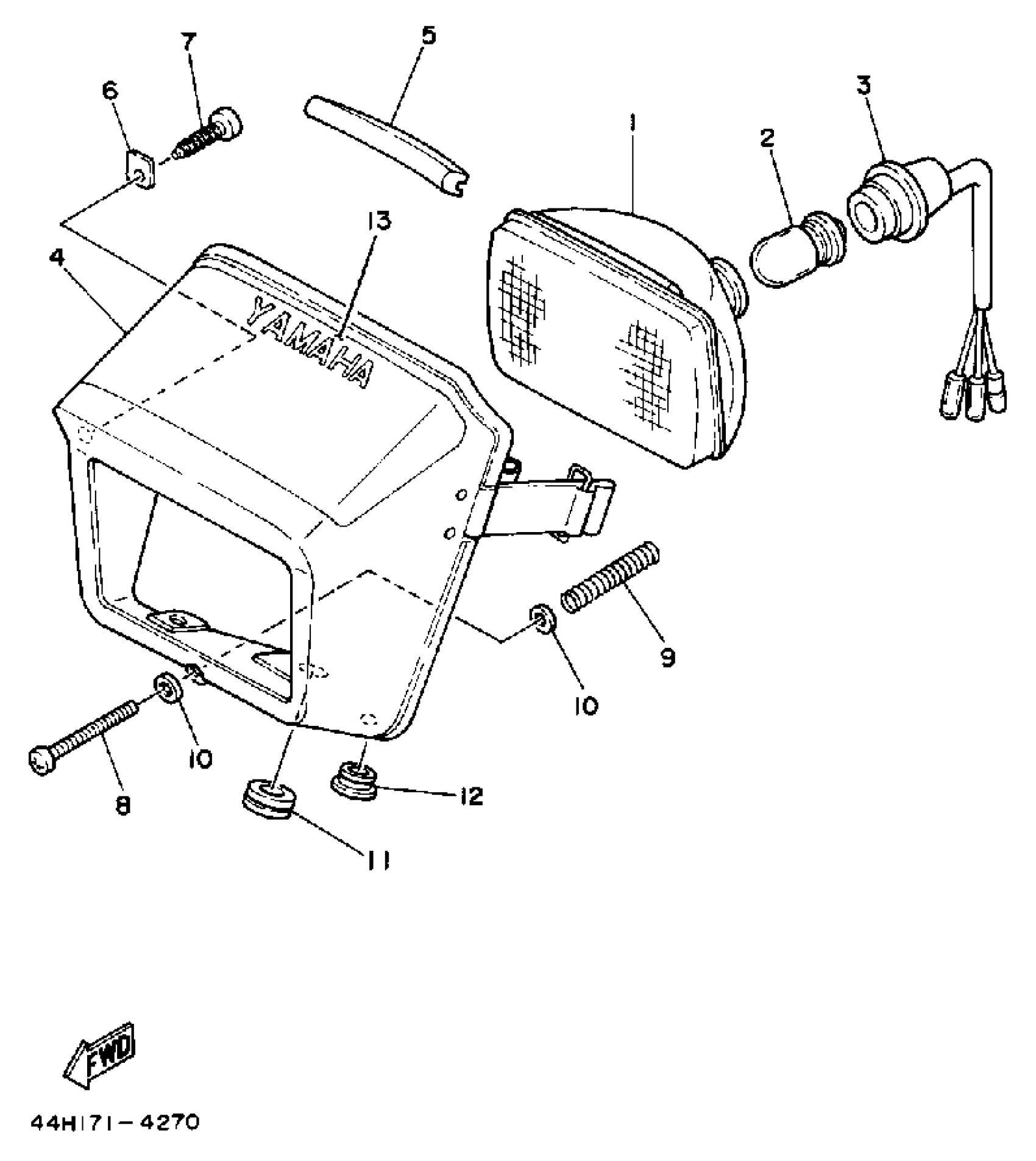

Find the part on the Headlight diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

18A-84120-00-00

—

$25.91

In stock

2

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

3

SOCKET CORD ASSEMBLY

26A-84140-00-00

1
Out of stock

4

BODY ASSEMBLY, HEADLIGHT

44H-84130-00-00

1
Out of stock

5

DAMPER, HEADLIGHT STAY

26A-84143-00-00

1
Out of stock

6

PLATE, STOPPER

26A-8411H-00-00

1
Out of stock

7

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

8

SCREW, RIM ADJUSTING

18A-84131-00-00

—
Out of stock

9

SPRING, SCREW

18A-84132-00-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

11

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

12

GROMMET

90480-10017-00

—

$6.80

In stock

13

EMBLEM, HEADLIGHT

44H-84141-00-00

1
Out of stock
