1985 Yamaha Trial (TY350N) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

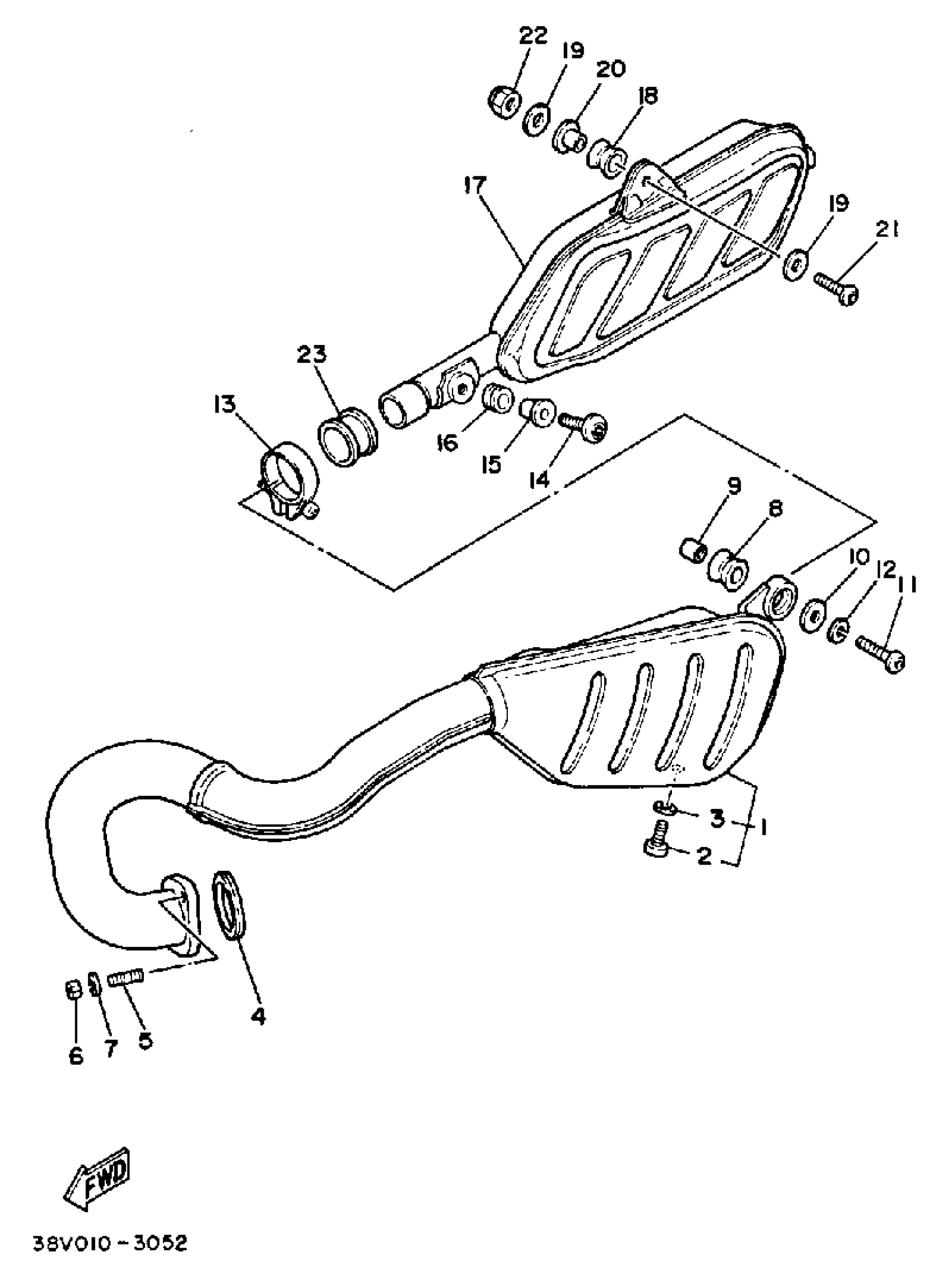

1985 Yamaha Trial (TY350N) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY 1

38V-14610-00-00

1
Out of stock

2

SCREW, BINDING

98907-06008-00

1

$6.68

In stock

3

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

4

GASKET,EXHAUSTPIPE

38V-14613-10-00

1
Out of stock

5

BOLT STUD 811135580000

90116-08042-00

1
Out of stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

DAMPER

565-14747-00-00

—
Out of stock

9

COLLAR (437)

90387-08258-00

1
Out of stock

10

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

11

1

$7.02

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

CLAMP, HOSE

90460-39202-00

1
Out of stock

14

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

15

COLLAR (21X)

90387-093H1-00

—

$8.29

In stock

16

DAMPER, FRONT

168-21638-00-00

—

$8.52

In stock

17

SILENCER ASSEMBLY

46Y-14750-00-00

1
Out of stock

18

DAMPER

565-14747-00-00

—
Out of stock

19

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

20

COLLAR 46Y

90387-081K6-00

1
Out of stock

21

1

$7.02

In stock

22

NUT, U

95617-08100-00

—

$6.78

In stock

23

GASKET, MUFFLER

5X8-14714-00-00

1
Out of stock
