1985 Yamaha Trial (TY350N) Crankcase Diagram

← All diagrams

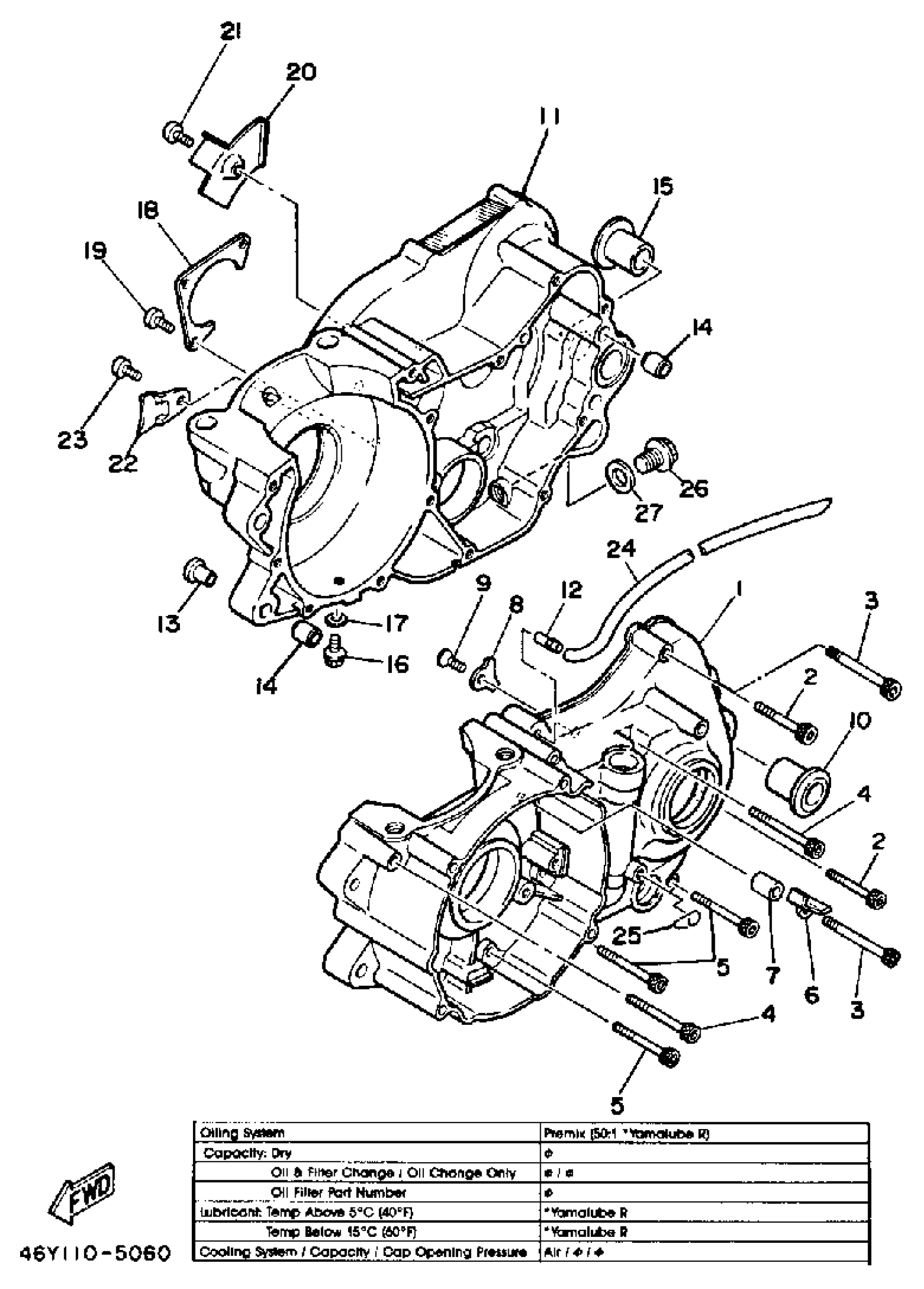

Find the part on the Crankcase diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Trial (TY350N) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(38V-15111-01-00)

1
Out of stock

2

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

3

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

4

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

5

BOLT,SOCKET

91317-06045-00

1
Out of stock

6

CLAMP (46Y)

(90465-16279-00)

1
Out of stock

7

COLLAR(1AE)

90387-060N3-00

1

$8.74

In stock

8

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

9

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

10

COLLAR

90387-160H4-00

1
Out of stock

11

CRANKCASE 2

38V-15121-01-00

1
Out of stock

12

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

13

PLUG (17J)

90338-07124-00

1

$8.55

In stock

14

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

15

COLLAR

90387-160H4-00

1
Out of stock

16

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

17

GASKET (4V2)

90430-06166-00

—

$3.45

In stock

18

PLATE, BEARING COVER

23X-15381-00-00

1
Out of stock

19

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

20

HOLDER

3R4-15118-00-00

1
Out of stock

21

SCREW, PAN

98507-08010-00

—
Out of stock

22

PLATE

5X5-15113-00-00

1
Out of stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

24

HOSE 46Y

(90445-081A0-00)

1
Out of stock

25

CLAMP

90465-20035-00

1
Out of stock

26

—

$2.82

In stock

27

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
