1985 Yamaha Trial (TY350N) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

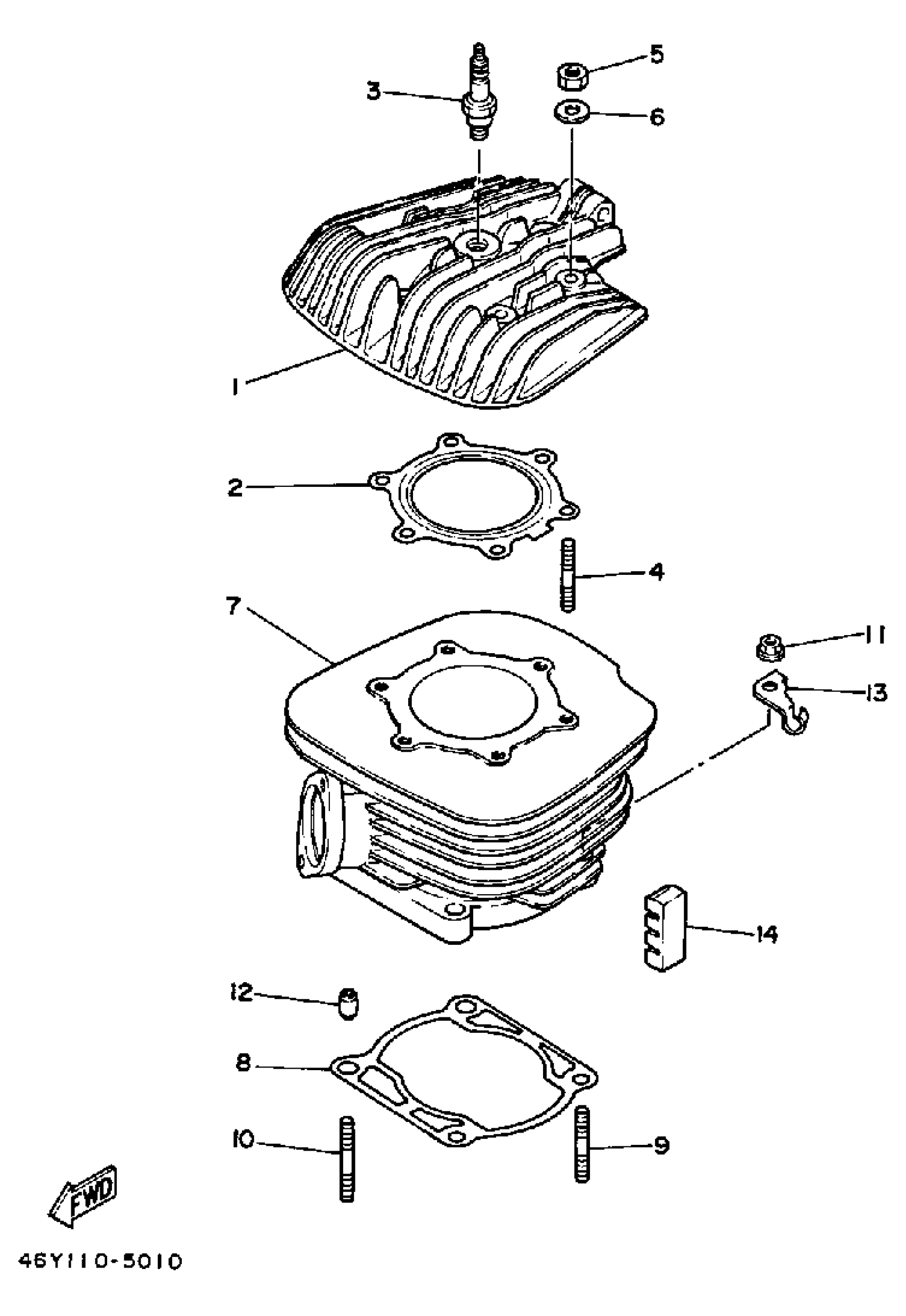

1985 Yamaha Trial (TY350N) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(46Y-11111-00-00)

1
Out of stock

2

GASKET, CYLINDER HEAD 1

46Y-11181-00-00

1
Out of stock

3

NGK BP6EV 4PK

NGK-BP6EV-00-00

1
Out of stock

4

BOLT, STUD (5V6)

90116-08394-00

1
Out of stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

WASHER (1T1)

90201-08649-00

1
Out of stock

7

CYLINDER 1

46Y-11311-00-00

1
Out of stock

8

GASKET,CYLINDER

46Y-11351-10-00

1
Out of stock

9

BOLT, STUD

90116-10313-00

1
Out of stock

10

BOLT, STUD (3R4)

90116-10314-00

1

$3.37

In stock

11

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

12

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

13

HOLDER 1

38V-1131E-00-00

1
Out of stock

14

ABSORBER 2

3R6-11162-00-00

—
Out of stock
