1975 Yamaha TY175 (TY175B) OIL Pump Diagram

← All diagrams

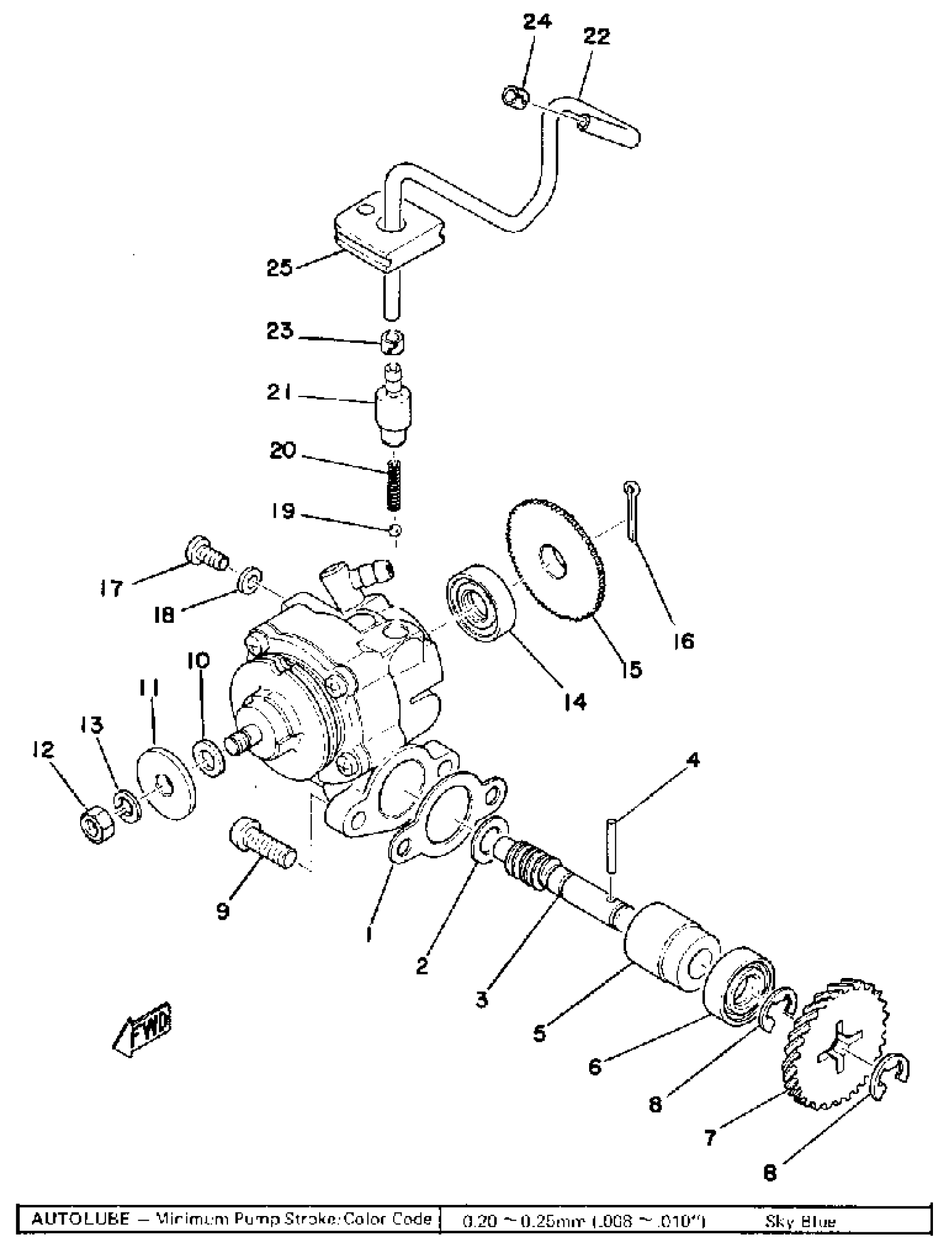

Find the part on the OIL Pump diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha TY175 (TY175B) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSY

525-13101-01-00

—
Out of stock

2

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

3

SHAFT, WORM

(525-13175-01-00)

1
Out of stock

4

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

GEAR, PUMP DRIVE

353-13178-00-00

1
Out of stock

8

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

10

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

10

SHIM, PLUNGER

(137-13137-00-30)

1
Out of stock

11

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

14

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

15

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

16

. PIN, COTTER

91401-12018-00

1
Out of stock

17

SCREW, BIND

98980-04008-00

1

$3.26

In stock

18

GASKET 137131870000

90430-04004-00

—
Out of stock

19

BALL

93505-32002-00

—

$2.22

In stock

20

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

21

NOZZLE

402-13552-00-00

—

$10.32

In stock

22

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

23

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

24

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

25

HOLDER OIL PIPE

525-13174-01-00

—
Out of stock
