1975 Yamaha TY175 (TY175B) Crankcase Cover Diagram

← All diagrams

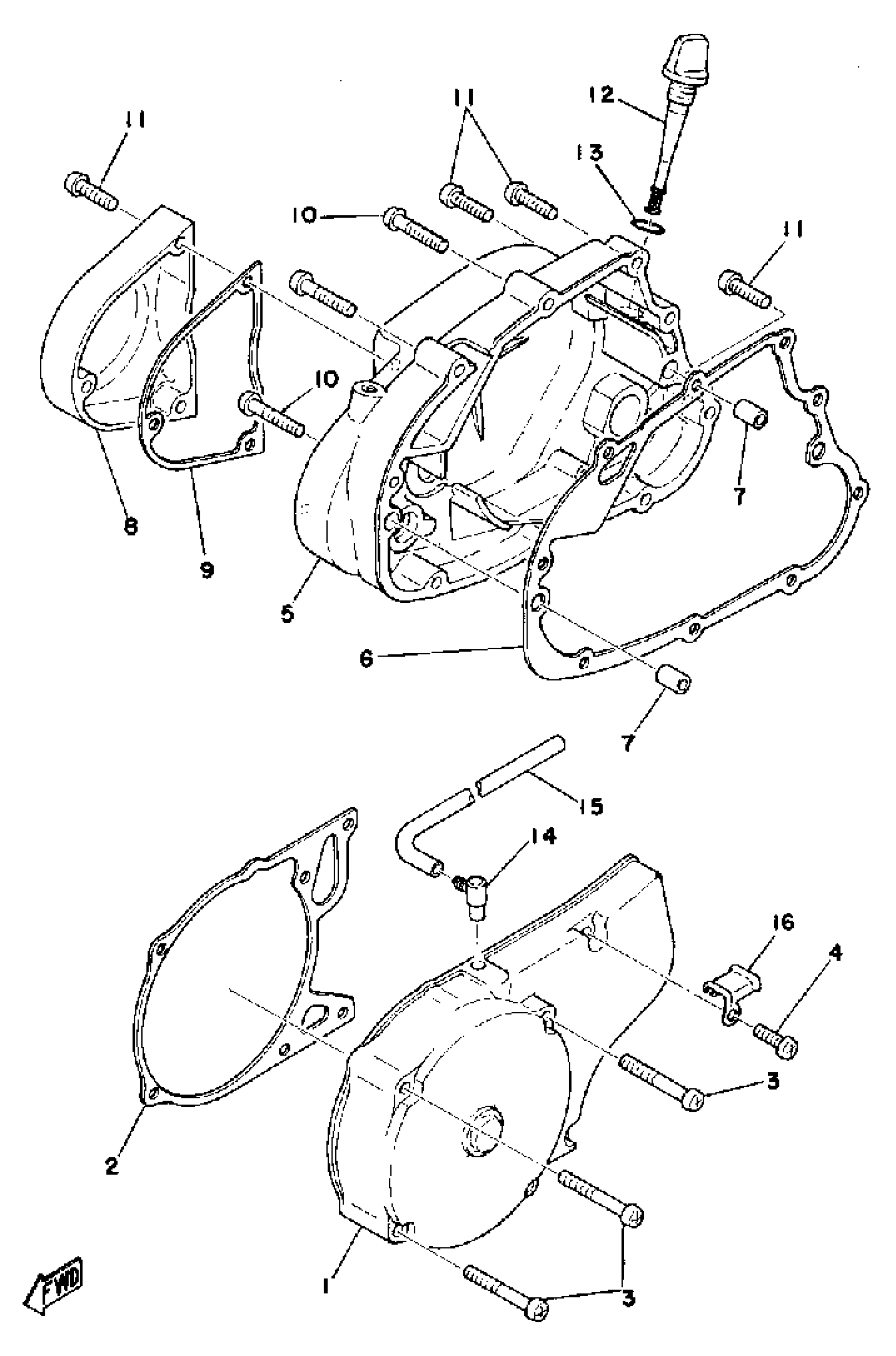

Find the part on the Crankcase Cover diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha TY175 (TY175B) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(525-15411-00-00)

1
Out of stock

2

GASKET, CRANKCASE COVER L

525-15455-10-00

—

$23.35

In stock

3

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

4

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

5

COVER, CRANKCASE 3

(525-15431-00-00)

1
Out of stock

6

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

1

$18.18

In stock

7

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

8

COVER, OIL PUMP

(525-15416-00-00)

1
Out of stock

9

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

1

$9.88

In stock

10

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

11

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

12

PLUG, OIL LEVEL

(525-15362-01-00)

1
Out of stock

13

O-RING (26H)

93210-14579-00

1

$5.69

In stock

14

BREATHER

583-15371-00-00

1
Out of stock

15

HOSE (L570)

90445-07MF1-00

1

$8.45

In stock

16

CLAMP

90461-10016-00

1
Out of stock
