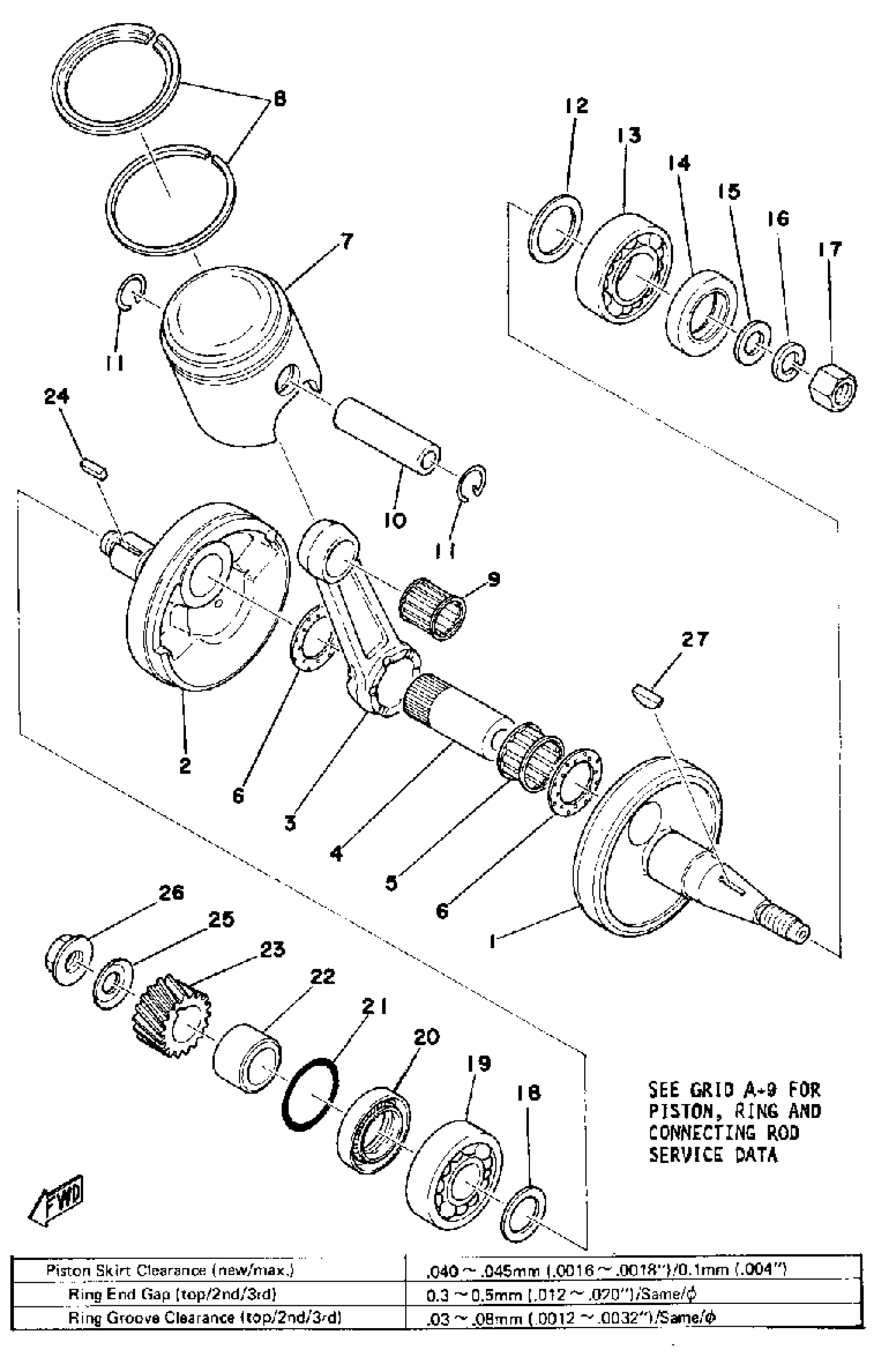

Find the part on the Crank-Piston diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha TY175 (TY175B) Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(525-11400-00-00)

1
Out of stock

1

CRANK 1

(525-11412-00-00)

1
Out of stock

2

CRANK 2

(525-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

4

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

5

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

PISTON STD

443-11631-03-96

1
Out of stock

7

PISTON 1 O/S 0.25 (66.25MM 1ST O.S)

443-11635-03-00

1
Out of stock

7

PISTON 2 O/S 0.50 (66.50MM 2ND O.S)

443-11636-03-00

1
Out of stock

7

PISTON 3 O/S 0.75

443-11637-03-00

1
Out of stock

7

PISTON 4 O/S 1.00

443-11638-03-00

1
Out of stock

8

PISTON RINGSET STD

443-11610-00-00

1
Out of stock

8

PISTON RINGSET 1ST (1ST O.S)

443-11610-10-00

1
Out of stock

8

PISTON RINGSET 2ND (2ND O.S)

443-11610-20-00

1
Out of stock

8

PISTON RINGSET 3RD (3RD O.S)

443-11610-30-00

1
Out of stock

8

PISTON RINGSET 4TH (4TH O.S0)

443-11610-40-00

1
Out of stock

8

PISTON KIT STD

(443-11630-00-00)

1
Out of stock

8

PISTON KIT 1ST

(443-11630-10-00)

1
Out of stock

8

PISTON KIT 2ND

(443-11630-20-00)

1
Out of stock

8

PISTON 3 O/S 0.75

443-11637-03-00

1
Out of stock

8

PISTON 4 O/S 1.00

443-11638-03-00

1
Out of stock

9

—

$23.03

In stock

10

PIN, PISTON

251-11633-00-00

—

$23.85

In stock

11

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

12

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

12

SHIM, CRANK 1

132-11561-00-05

1
Out of stock

13

—

$35.25

In stock

14

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

15

WASHER (492)

90201-12535-00

—
Out of stock

16

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

17

NUT, HEXAGON (525)

90170-12181-00

—

$11.51

In stock

18

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

19

—

$54.91

In stock

20

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

21

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

22

COLLAR, DISTANCE (525)

90387-20488-00

—

$21.72

In stock

23

GEAR, PRI DRIVE

525-16111-00-00

1
Out of stock

24

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

25

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

26

NUT(1EE)

90179-12659-00

—

$5.37

In stock

27

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock
