1973 Yamaha TX500 (TX500) Front Fork Diagram

← All diagrams

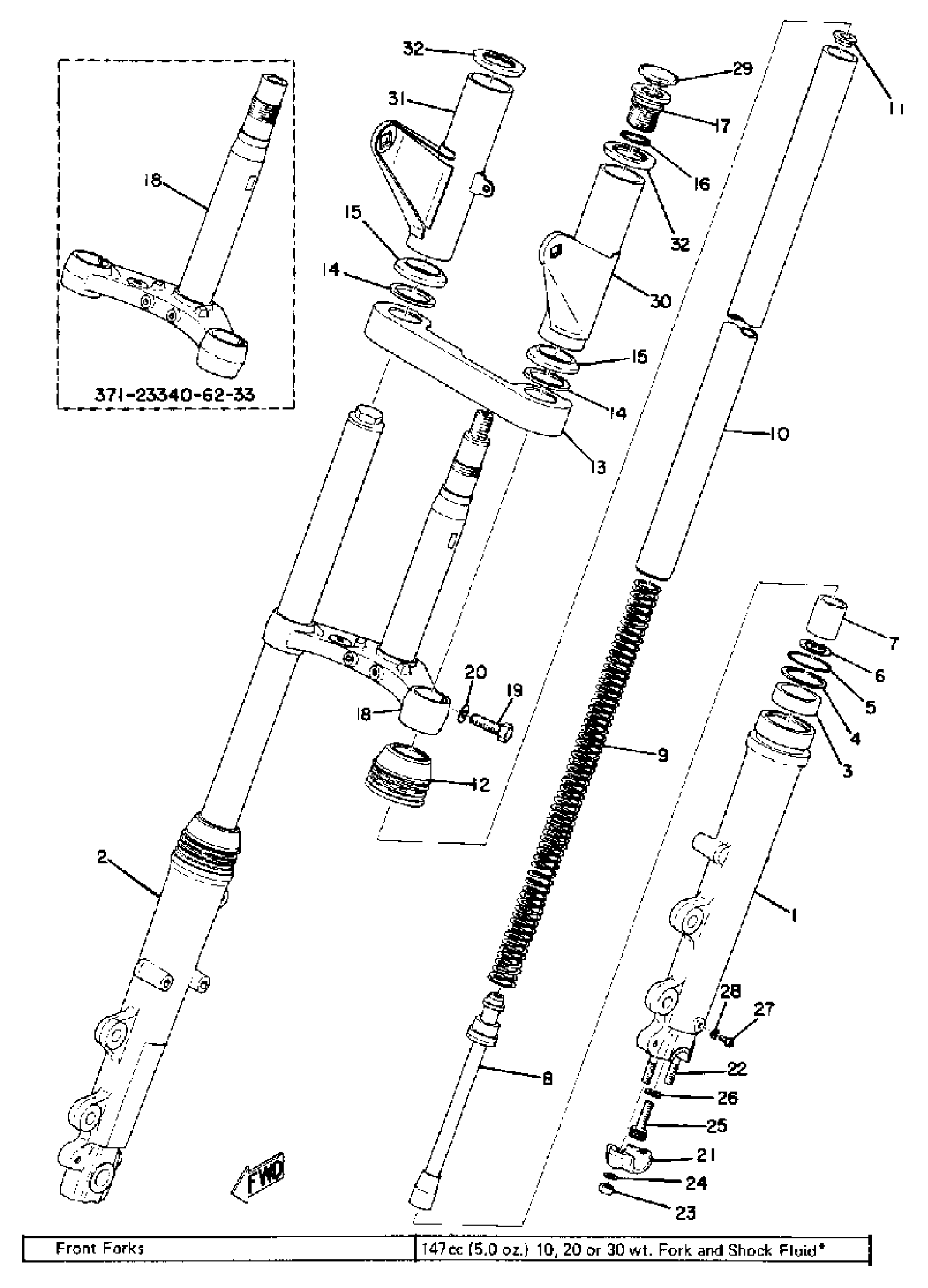

Find the part on the Front Fork diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(371-23101-63-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(371-23101-64-00)

1
Out of stock

1

TUBE, OUTER 1

(371-23126-60-00)

1
Out of stock

2

TUBE, OUTER 2

(351-23136-50-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

CLIP, OIL SEAL

(371-23156-60-00)

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(278-23171-50-00)

1
Out of stock

7

PISTON, FRONT FORK

(371-23171-60-00)

1
Out of stock

8

CYLINDER, FRTFRK

(371-23170-61-00)

1
Out of stock

8

CYLINDER, FRTFRK

(371-23170-62-00)

1
Out of stock

9

SPRING, FRONT FORK

(371-23141-61-00)

1
Out of stock

9

SPRING, FRONT FORK

(371-23141-62-00)

1
Out of stock

10

TUBE, INNER 1

(371-23124-62-00)

1
Out of stock

10

TUBE, INNER 1

(533-23124-31-00)

1
Out of stock

11

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

11

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

12

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

13

COVER, OUTER 1

(371-23122-60-00)

1
Out of stock

14

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

15

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

16

. GASKET

214-23114-00-00

1
Out of stock

17

. BOLT, CAP

341-23111-51-00

1
Out of stock

18

UNDER BRACKET

(371-23340-61-33)

1
Out of stock

18

UNDER BRACKET

(371-23340-62-33)

1
Out of stock

19

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

20

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

21

HOLDER, AXLE

(306-23167-60-00)

1
Out of stock

22

BOLT, STUD (278)

90116-08261-00

—
Out of stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

26

GASKET

509-23158-L0-00

—

$14.34

In stock

27

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

28

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

29

. CAP, FRONT FORK

371-23168-60-00

1
Out of stock

30

COVER, UPPER 1

(371-23121-61-E4)

1
Out of stock

30

COVER, UPPER 1

(371-23121-61-F8)

1
Out of stock

30

COVER, UPPER 1

(371-23121-61-M3)

1
Out of stock

31

COVER, UPPER 2

(371-23131-61-E4)

1
Out of stock

31

COVER, UPPER 2

(371-23131-61-F8)

1
Out of stock

31

COVER, UPPER 2

(371-23131-61-M3)

1
Out of stock

32

GUIDE, COVER UPPER

(2R8-23115-00-00)

1
Out of stock
