1973 Yamaha TX500 (TX500) Rear Wheel Diagram

← All diagrams

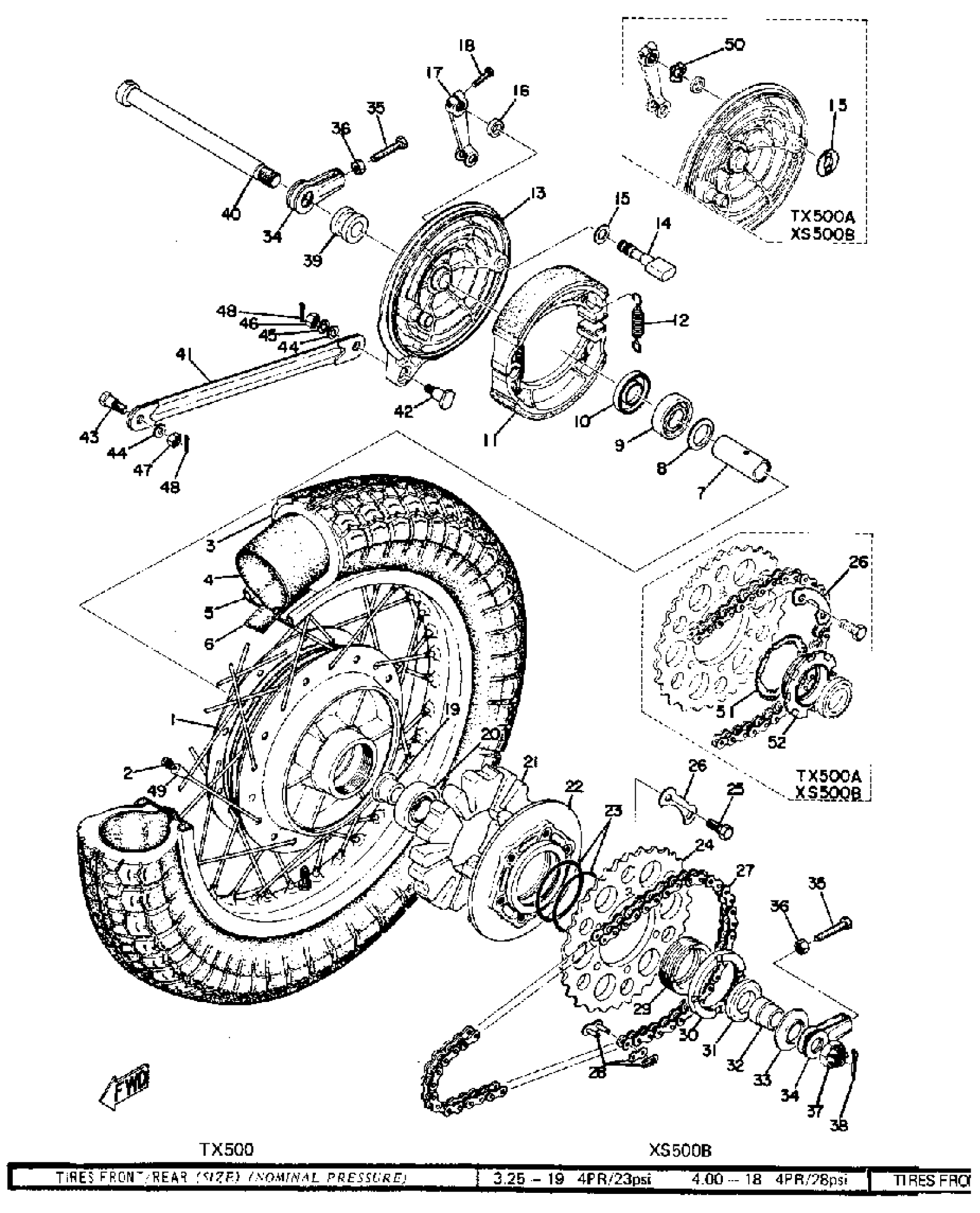

Find the part on the Rear Wheel diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX500 (TX500) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(371-25311-00-00)

1
Out of stock

1

HUB, REAR

(371-25311-01-00)

1
Out of stock

2

SPOKE SET, REAR

256-25304-00-00

1
Out of stock

2

SPOKE SET, INNER 2

(256-25396-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(256-25397-90-00)

1
Out of stock

3

4.00-18 DUNLOP

(94140-18304-00)

1
Out of stock

4

TUBE (5A8)

94212-18188-00

1

$32.23

In stock

5

RIM 2.15X18

(94421-18049-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

NO LONGER AVAILABLE

240-25317-00-00

1
Out of stock

8

FLANGE, SPACER

4V4-25315-00-00

1
Out of stock

9

BEARING(3BC)

93306-30437-00

1

$55.54

In stock

10

OIL SEAL (27X52X5-256)

93104-27026-00

1

$17.69

In stock

11

BRAKE SHOE KIT

3LT-W253E-00-00

—

$58.71

In stock

12

1

$8.09

In stock

13

PLATE, BRAKE SHOE

(371-25321-00-00)

1
Out of stock

13

PLATE, BRAKE SHOE

(371-25321-10-00)

1
Out of stock

14

CAMSHAFT

341-25351-00-00

1
Out of stock

15

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

15

SHIM, CAMSHAFT

(447-25353-00-00)

1
Out of stock

16

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

17

LEVER, CAMSHAFT

371-25355-02-00

1
Out of stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

COLLAR

90387-20166-00

1
Out of stock

20

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

—
Out of stock

21

DAMPER

(371-25364-00-00)

1
Out of stock

22

CLUTCH, HUB

(371-25366-00-00)

1
Out of stock

23

O-RING (371)

93210-76211-00

—

$4.15

In stock

24

SPROCKET, DRIVN 43T

371-25443-20-00

1
Out of stock

25

BOLT (583)

90101-10303-00

—

$6.25

In stock

26

WASHER, LOCK

256-25412-00-00

—

$9.48

In stock

26

WASHER

(371-25412-00-00)

1
Out of stock

27

50 HDS DID 108L

94580-05108-00

1
Out of stock

28

CHAIN JOINT

94680-05011-00

1
Out of stock

29

RETAINER

(371-25369-01-00)

1
Out of stock

29

PIN, DOWEL (278)

93604-08071-00

—

$6.17

In stock

30

NUT, LOCK

(371-25413-01-00)

1
Out of stock

31

OIL SEAL(3BC)

93106-30029-00

—

$12.66

In stock

31

OIL SEAL, SDD-TYPE (93110-32002)

93105-32008-00

1
Out of stock

32

COLLAR, WHEEL

(371-25377-00-00)

1
Out of stock

32

COLLAR

(90387-20438-00)

1
Out of stock

33

COVER, HUB DUST

(371-25367-00-00)

1
Out of stock

34

PULLER, CHAIN 1

256-25388-00-00

1
Out of stock

35

BOLT

90101-08060-00

—

$4.92

In stock

36

. NUT

95380-08700-00

1

$3.07

In stock

37

NUT, CASTLE

90171-18043-00

1
Out of stock

38

PIN, COTTER

91490-40045-00

—

$6.80

In stock

39

COLLAR

90387-20444-00

1
Out of stock

40

AXLE, WHEEL

(371-25381-00-00)

1
Out of stock

41

BAR, TENSION

(256-25371-00-00)

1
Out of stock

42

BOLT

90109-08184-00

1
Out of stock

43

BOLT

90109-08375-00

1
Out of stock

44

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

. NUT

95380-08700-00

1

$3.07

In stock

47

NUT(6L2)

95333-08600-00

—

$3.20

In stock

48

PIN, COTTER

91490-20025-00

—

$1.31

In stock

49

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

50

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

51

WASHER

(371-25349-00-00)

1
Out of stock

52

BOLT, CLUTCH

(371-25416-00-00)

1
Out of stock
