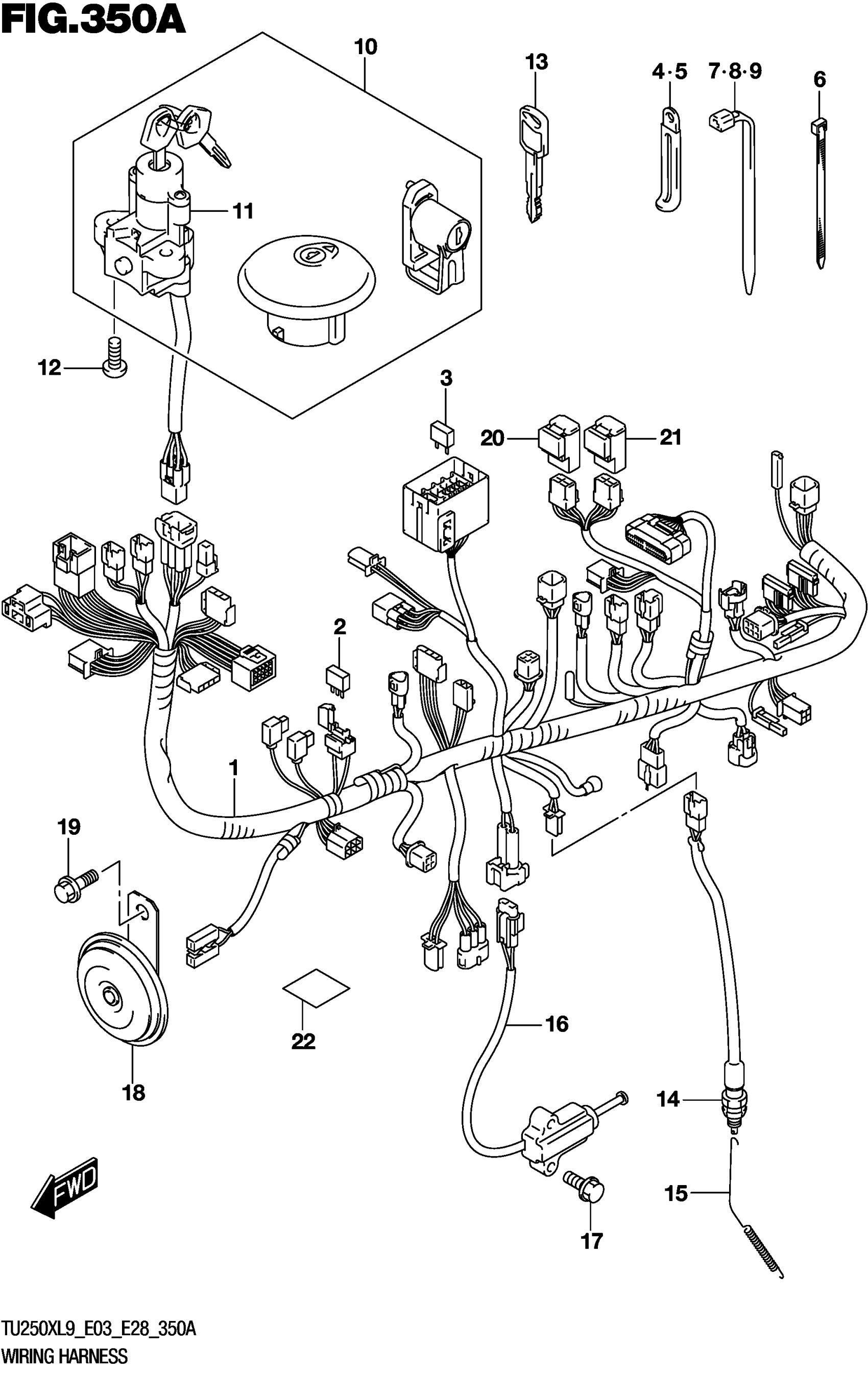

Suzuki TU250XL9 (2019) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS

36610-26G70

Unavailable

2

.DIODE

36611-38A10

$12.39

3

.FUSE (10A)

09481-10501

$2.07

4

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

5

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88

6

CLAMP (L:95)

09407-10403

Unavailable

7

CLAMP (L:95)

09407-11401

$2.87

8

CLAMP (L:125)

09407-14403

$2.24

9

CLAMP (L:190)

09407-19401

$3.32

10

LOCK SET This part replaces 37106-33890.

37106-33892

$380.82

11

LOCK ASSY,STEER This part replaces 37100-33EB0.

37100-33EB1

$231.48

12

BOLT (8X20)

09139-08016

$3.04

13

KEY,BLANK | OPT

37146-33E00

$19.42

14

SWITCH ASSY,STOP LAMP

37740-45D00

$20.62

15

SPRING

09443-06031

$4.49

16

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$45.34

17

BOLT

01550-0616B

$2.53

18

HORN ASSY

38500-26G10

$98.98

19

BOLT

01550-0812B

$2.73

20

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

21

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

22

PROTECTOR,WIRING HARNESS (30X

36611-41F00

Unavailable
