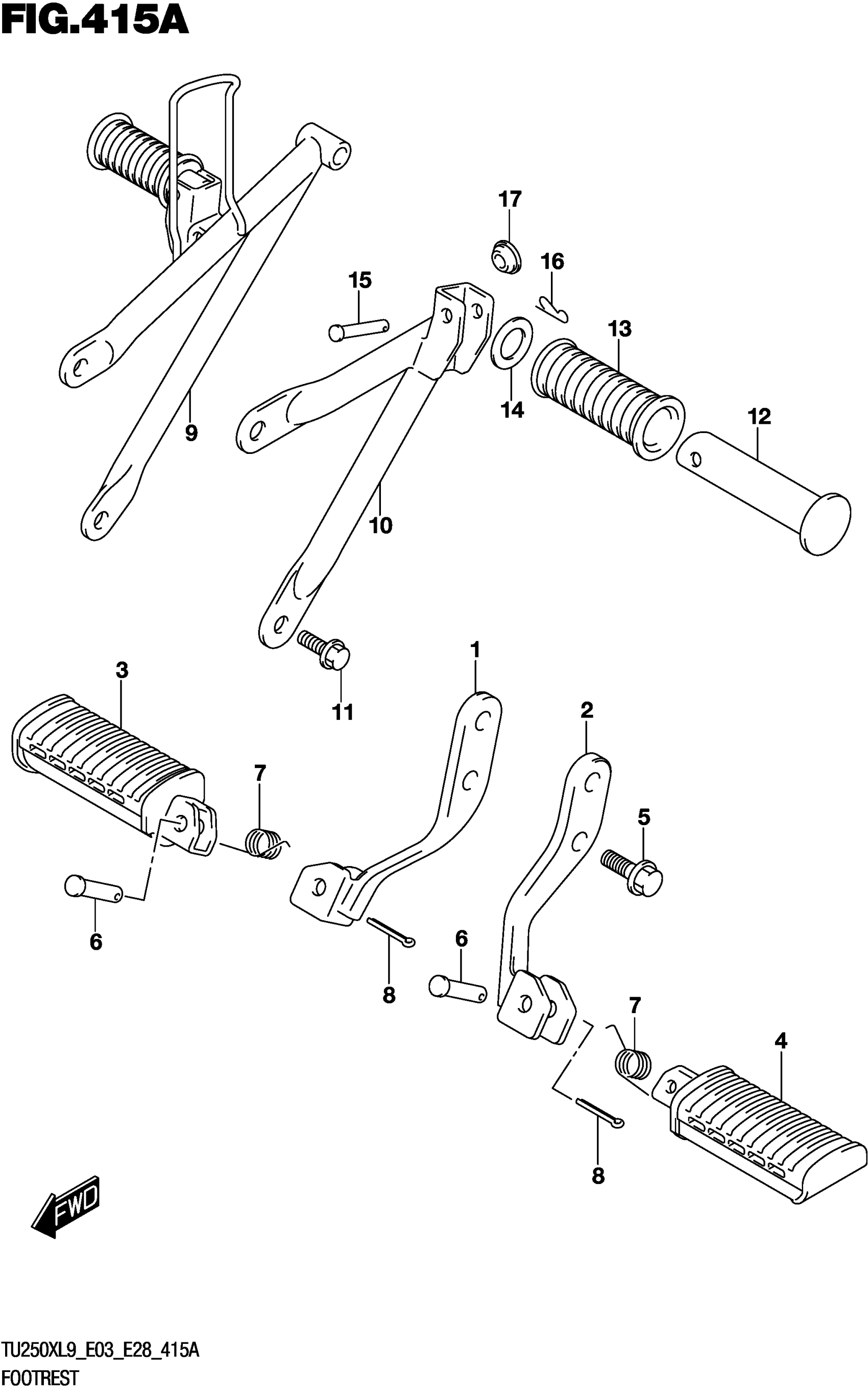

Suzuki TU250XL9 (2019) FOOTREST Diagram

#

Description
Price

1

BAR

43510-26G00

$49.49

2

BAR

43520-26G00

$49.49

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$23.98

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$30.19

5

BOLT

01550-1025B

$4.45

6

PIN

09200-08002

$1.97

7

SPRING

09448-14012

$2.80

8

PIN

04111-2020A

$1.22

9

TUBE

43810-26G01-019

$169.10

10

TUBE

43820-26G01-019

$124.32

11

BOLT

01550-1020B

$4.62

12

BAR

43610-03001

$6.14

13

RUBBER, PILLION FOOTREST

43612-33210

$6.60

14

.WASHER (19.5X32X2)

09160-19024

$2.76

15

PIN

09200-06033

$2.87

16

CLIP

09385-06012

$1.89

17

PLUG (OD:19) | LH

09250-15010

$2.15
