2019 Suzuki TU250XL9 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2019 Suzuki TU250XL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

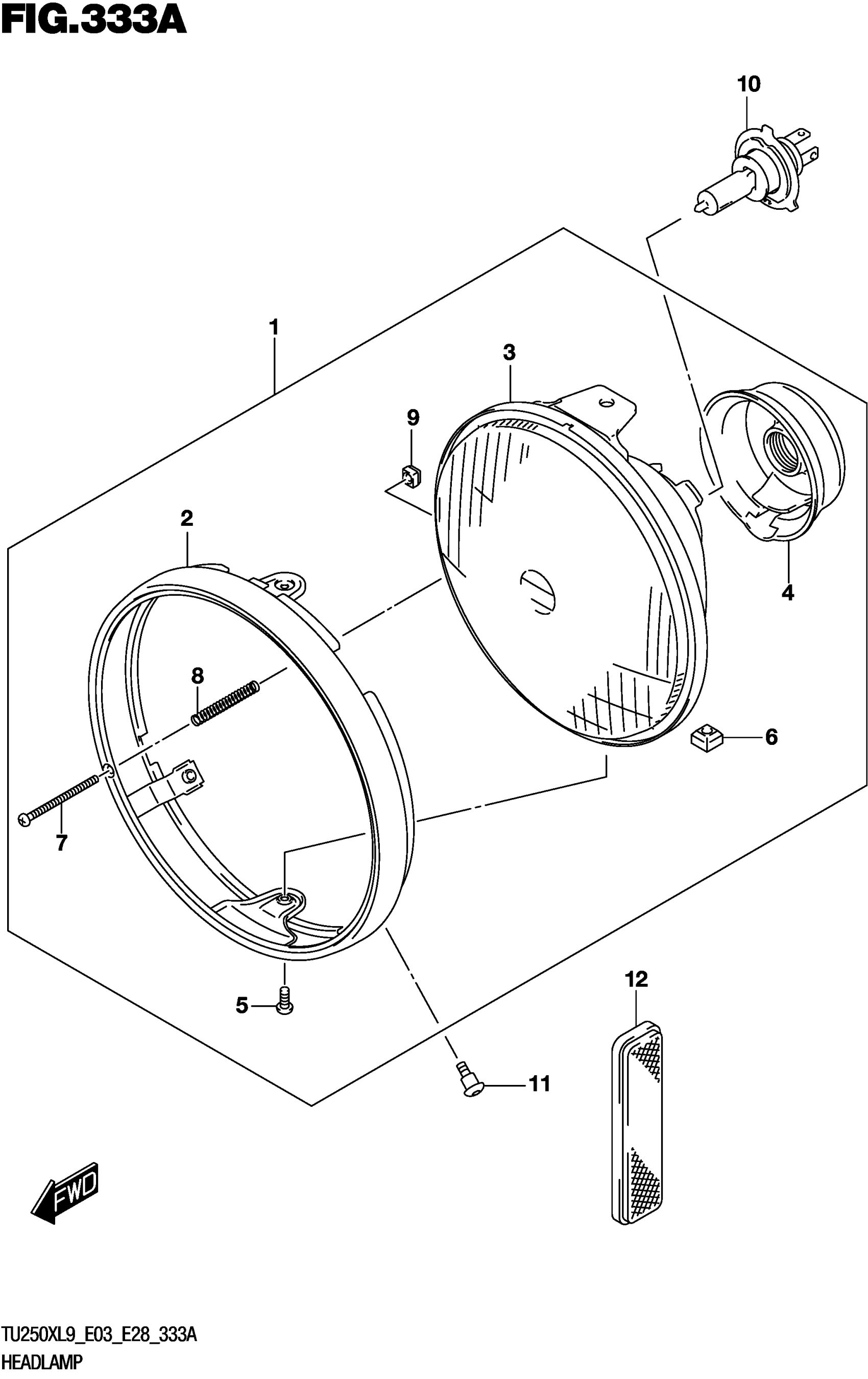

2019 Suzuki TU250XL9 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-26G00-999

1
Out of stock

2

.RIM

35111-26G00

1
Out of stock

3

.UNIT

35121-26G00

1
Out of stock

4

.COVER

35173-38A00

1
Out of stock

5

SCREW

02112-0510A

2
Out of stock

6

.NUT

35135-45900

2

$3.67

In stock

7

.SCREW (4X45)

35151-26G00

1
Out of stock

8

.SPRING

35154-35300

1
Out of stock

9

.NUT

35152-45600

1
Out of stock

10

.BULB (12V60/55W,H4)

09471-12060

1
Out of stock

11

SCREW (5X12)

09139-05081

2
Out of stock

12

REFLEX REFLECTOR ASSY

35950-22H10

2
Out of stock
