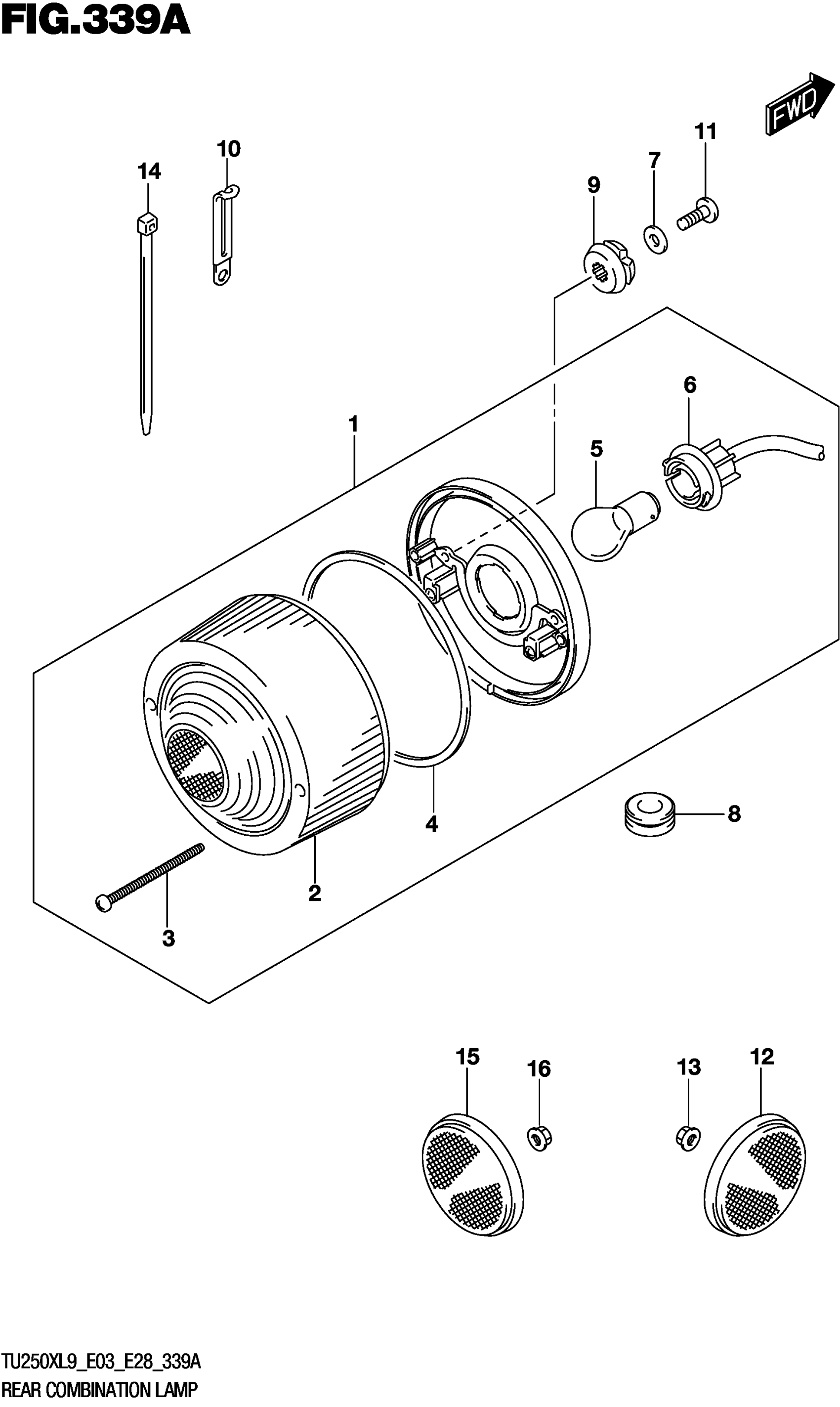

Suzuki TU250XL9 (2019) REAR COMBINATION LAMP Diagram

Description

Price

LAMP ASSY

35710-26G30

$381.12

.LENS

35712-26G30

$67.93

.SCREW

03211-04556

$2.55

.GASKET

35713-26G00

$25.99

.BULB (12V21/5W,BF141-49642A)

09471-12128

$6.08

.CORD ASSY

35718-26G00

$46.72

WASHER (5.5X20X1.2)

09160-05501

$1.86

GROMMET

09308-07011

$2.64

CUSHION

09320-09010

$2.80

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

SCREW

02142-0525B

$2.95

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

NUT

08316-1005B

$2.50

CLAMP (L:145)

09407-14407
