2011 Suzuki TU250XL1 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2011 Suzuki TU250XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

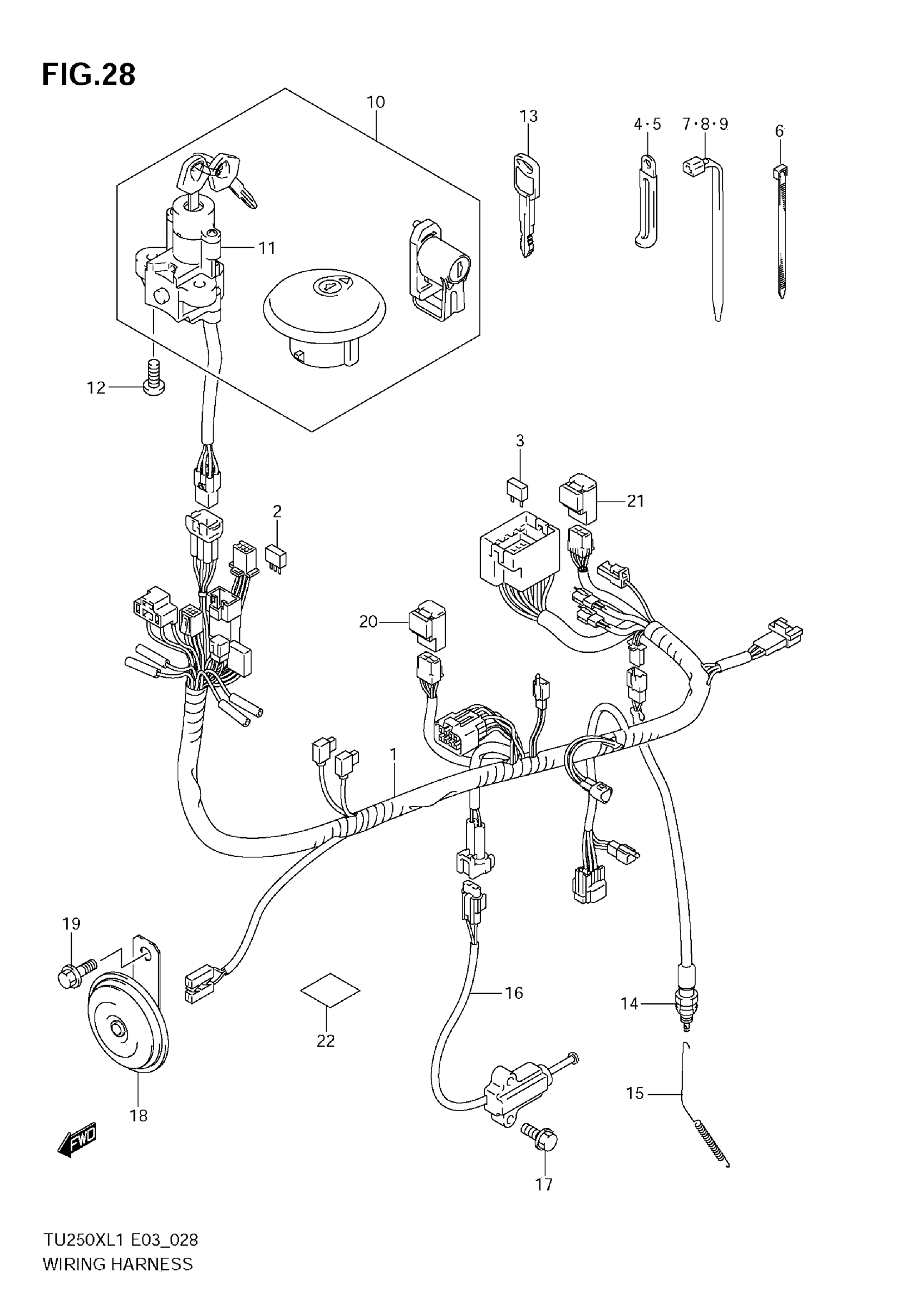

2011 Suzuki TU250XL1 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-26G41

1
Out of stock

2

1

$13.49

In stock

3

FUSE (10A)

09481-10501

4
Out of stock

4

2

$1.89

In stock

5

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

3
Out of stock

6

CLAMP (L:95)

09407-10403

1
Out of stock

7

CLAMP (L:95)

09407-11401

1
Out of stock

8

CLAMP (L:125)

09407-14403

4
Out of stock

9

CLAMP (L:190)

09407-19401

1
Out of stock

10

1

$380.82

In stock

11

1

$231.48

In stock

12

BOLT (8X20)

09139-08016

2
Out of stock

13

KEY, BLANK | OPT

37146-33E00

1

$21.15

In stock

14

1

$20.62

In stock

15

SPRING

09443-06031

1

$4.49

In stock

16

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

1
Out of stock

17

BOLT

01550-0616B

2
Out of stock

18

HORN ASSY

38500-26G10

1

$98.98

In stock

19

BOLT

01550-0812B

1
Out of stock

20

1

$39.56

In stock

21

1

$39.56

In stock

22

PROTECTOR (35X35)

36611-41F00

1
Out of stock
← Turnsignal Lamp Footrest →
