2011 Suzuki TU250XL1 Battery Holder Diagram

← All diagrams

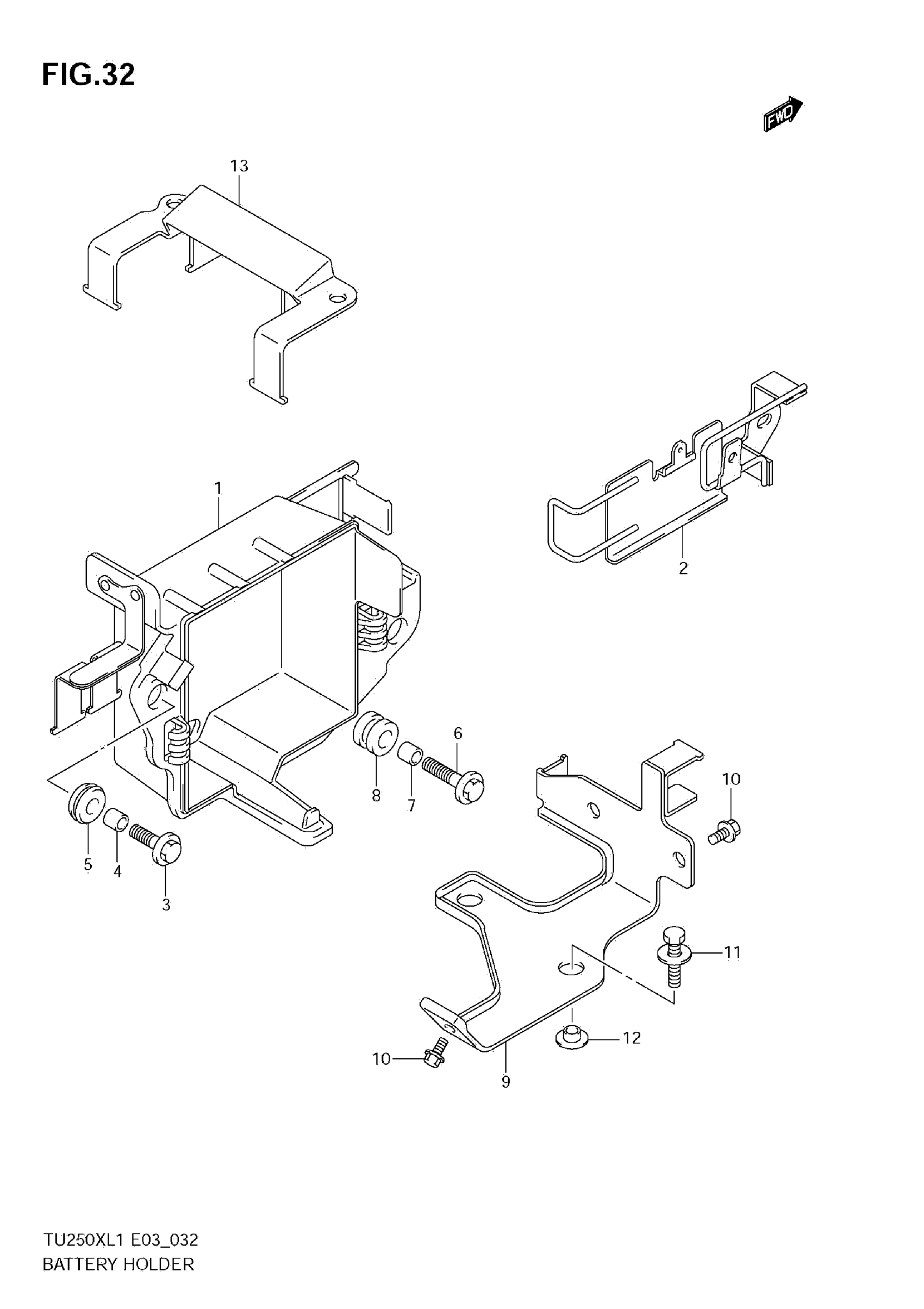

Find the part on the Battery Holder diagram for your 2011 Suzuki TU250XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki TU250XL1 Battery Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

41540-26G10

1
Out of stock

2

BAND, BATTERY

41560-26G10

1
Out of stock

3

BOLT (6X25)

09116-06150

2
Out of stock

4

SPACER (6.5X9X9)

09180-06263

2
Out of stock

5

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

2
Out of stock

6

BOLT (6X25)

09116-06150

1
Out of stock

7

SPACER (6.5X9X9)

09180-06263

1
Out of stock

8

CUSHION

09320-09016

1
Out of stock

9

PLATE, PARTS NO.1

47410-26G00

1
Out of stock

10

BOLT

02162-0610B

3
Out of stock

11

BOLT

02162-0612B

2
Out of stock

12

SPACER (6.5X10X2.5)

09180-06176

2
Out of stock

13

PLATE, PARTS NO.2

47420-26G00

1
Out of stock
