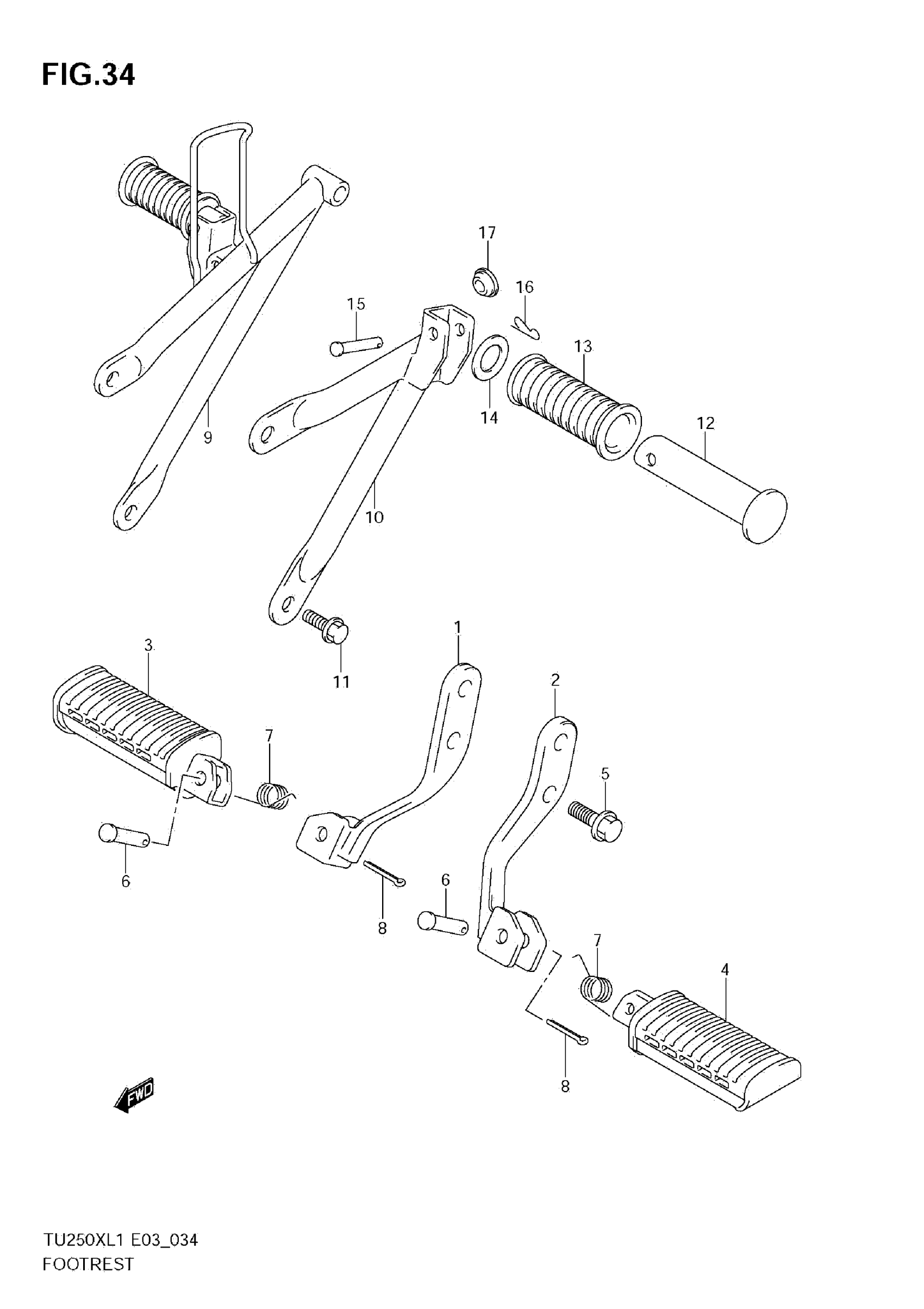

Find the part on the Footrest diagram for your 2011 Suzuki TU250XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki TU250XL1 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FRONT FOOTREST RH

43510-26G00

1
Out of stock

2

BAR, FRONT FOOTREST LH

43520-26G00

1
Out of stock

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

1
Out of stock

4

1

$32.87

In stock

5

BOLT

01550-1025B

4
Out of stock

6

PIN

09200-08002

2
Out of stock

7

SPRING

09448-14012

2
Out of stock

8

COTTER PIN

04111-2020A

2
Out of stock

9

TUBE, PILLION RH (BLACK)

43810-26G01-019

1

$169.10

In stock

10

TUBE, PILLION LH (BLACK)

43820-26G01-019

1

$124.32

In stock

11

BOLT

01550-1020B

4

$4.62

In stock

12

BAR, PILLION

43610-03001

2
Out of stock

14

WASHER (19.5X32X2)

09160-19024

2
Out of stock

15

PIN

09200-06033

2
Out of stock

16

CLIP

09385-06012

2
Out of stock

17

PLUG | LH

09250-15010

1
Out of stock
