FRONT FORK

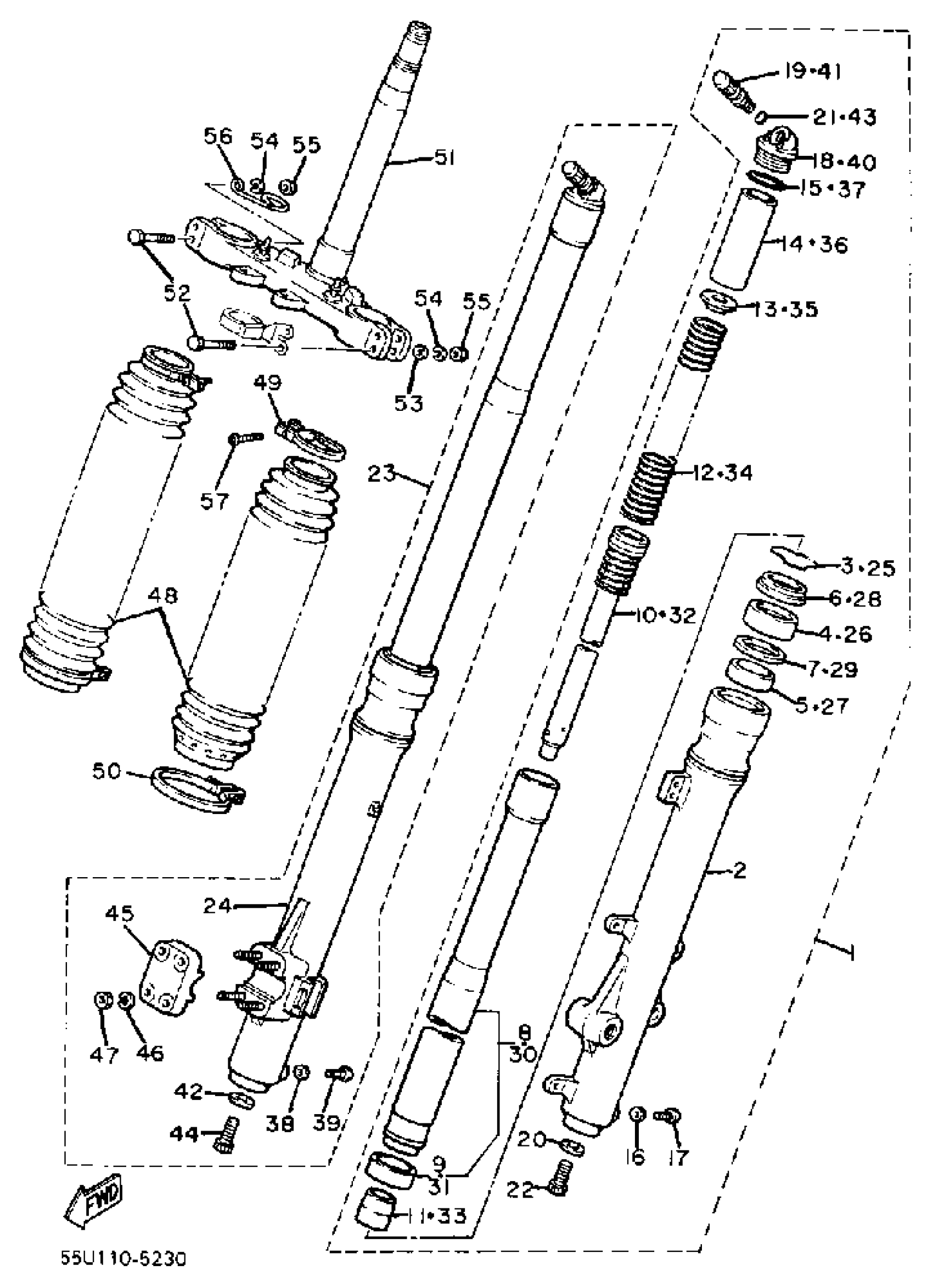

1986 Yamaha TT600 (TT600S) Front Fork Diagram
Find the part on the Front Fork diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSEMBLY L
(55U-23102-00-00)
2
TUBE, OUTER 1
(55U-23126-00-00)
5
METAL, SLIDE 1
5EB-23125-00-00
8
INNER TUBE COMP.
55U-23110-00-00
9
. PISTON, FRONT FORK
4V4-23171-L0-00
10
CYLINDER, FRT FORK
(55U-23170-00-00)
11
. SPINDLE, TAPER
4V4-23173-L0-00
12
. SPRING, FRONT FORK
55U-23141-00-00
13
SEAT, SPRING UPPER
4V4-23142-L0-00
14
. SPACER (L=110)
5X6-23118-M0-00
15
GASKET
4V4-23158-L0-00
18
BOLT,CAP
43M-23111-L0-00
19
AIR VALVE COMP.
23X-23190-L0-00
21
O-RING
3J2-23147-00-00
22
. BOLT, HEX SCKT HEADSOCKET HEAD
34K-23181-00-00
23
FRONT FORK ASSEMBLY R (R.H)
55U-23103-00-00
24
. TUBE, OUTER RH
55U-23136-00-38
27
METAL, SLIDE 1
5EB-23125-00-00
30
INNER TUBE COMP.
55U-23110-00-00
31
. PISTON, FRONT FORK
4V4-23171-L0-00
32
CYLINDER, FRT FORK
(55U-23170-00-00)
33
. SPINDLE, TAPER
4V4-23173-L0-00
34
. SPRING, FRONT FORK
55U-23141-00-00
35
SEAT, SPRING UPPER
4V4-23142-L0-00
36
. SPACER (L=110)
5X6-23118-M0-00
37
GASKET
4V4-23158-L0-00
40
BOLT,CAP
43M-23111-L0-00
41
AIR VALVE COMP.
23X-23190-L0-00
43
O-RING
3J2-23147-00-00
44
. BOLT, HEX SCKT HEADSOCKET HEAD
34K-23181-00-00
45
HOLDER, AXLE
1LX-23167-L0-00
48
BOOT
55U-23191-00-00
49
BAND
43M-23192-L0-00
51
UNDER BRACKETCOMP (26A-23340-L0-39)
34K-23340-00-39
57
SCREW, PAN HEAD
98507-04018-00
