1986 Yamaha TT600 (TT600S) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

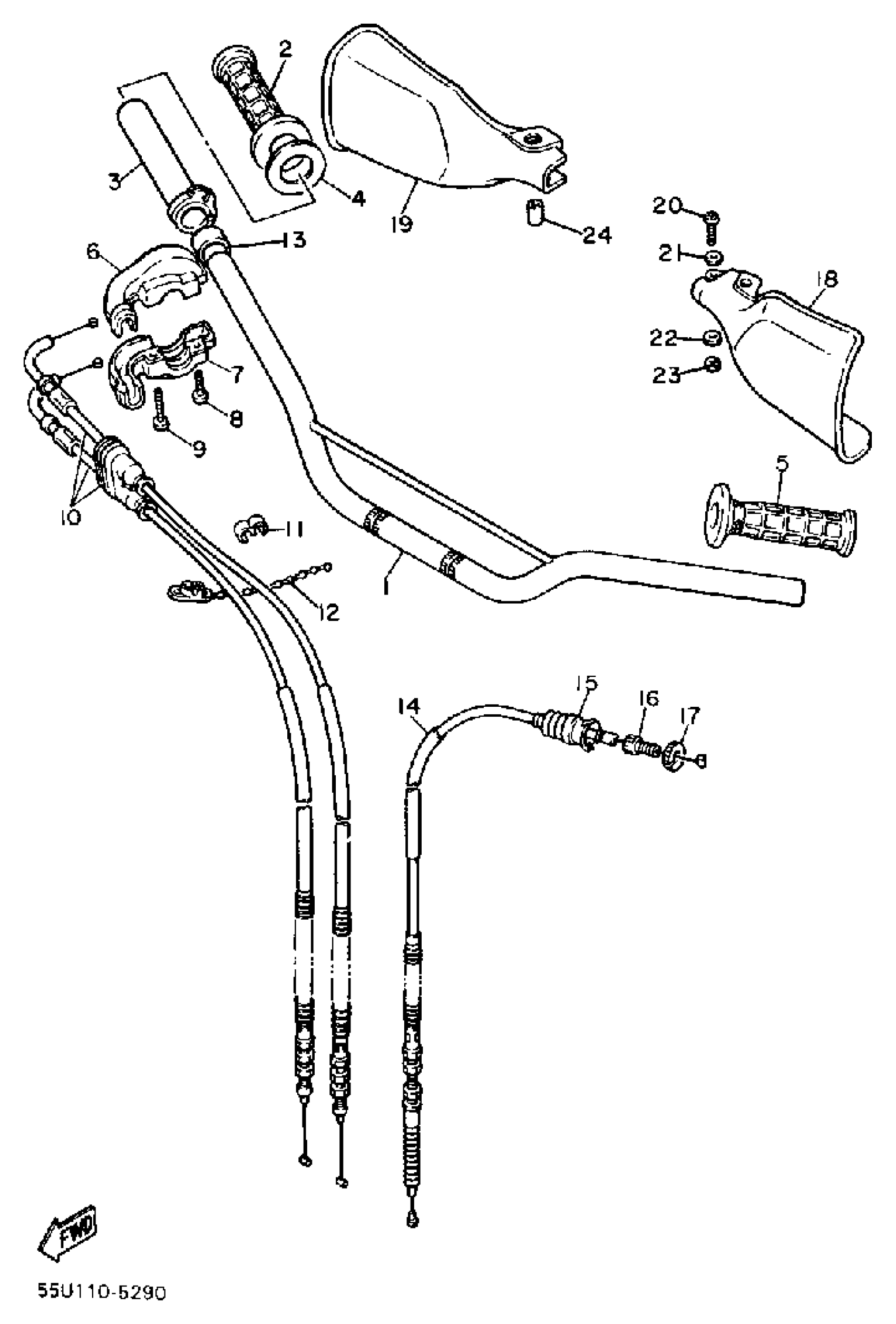

1986 Yamaha TT600 (TT600S) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

34K-26111-00-00

1
Out of stock

2

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

6

CAP, GRIP UPPER

34K-26281-00-00

—
Out of stock

7

CAP, GRIP LOWER

1VJ-26282-00-00

—
Out of stock

8

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

9

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

10

THROTTLE CABLE ASSEMBLYASSY

34K-26302-00-00

1
Out of stock

11

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

12

CLAMP

90464-20031-00

1

$2.62

In stock

13

COLLAR(34X)

90387-227H7-00

1

$6.68

In stock

14

WIRE, CLUTCH

55U-26335-01-00

1

$58.78

In stock

15

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

16

BOLT (23X)

90123-08090-00

—

$14.46

In stock

17

NUT

90179-08401-00

1
Out of stock

18

GUARD, BRUSH 1

3Y0-26141-00-00

1
Out of stock

19

XT600L BUSH GD RH

(34L-26142-10-00)

1
Out of stock

20

SCREW, PAN

98507-06014-00

—

$6.18

In stock

21

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

NUT(650)

95380-06700-00

—

$6.17

In stock

24

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock
