1986 Yamaha TT600 (TT600S) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

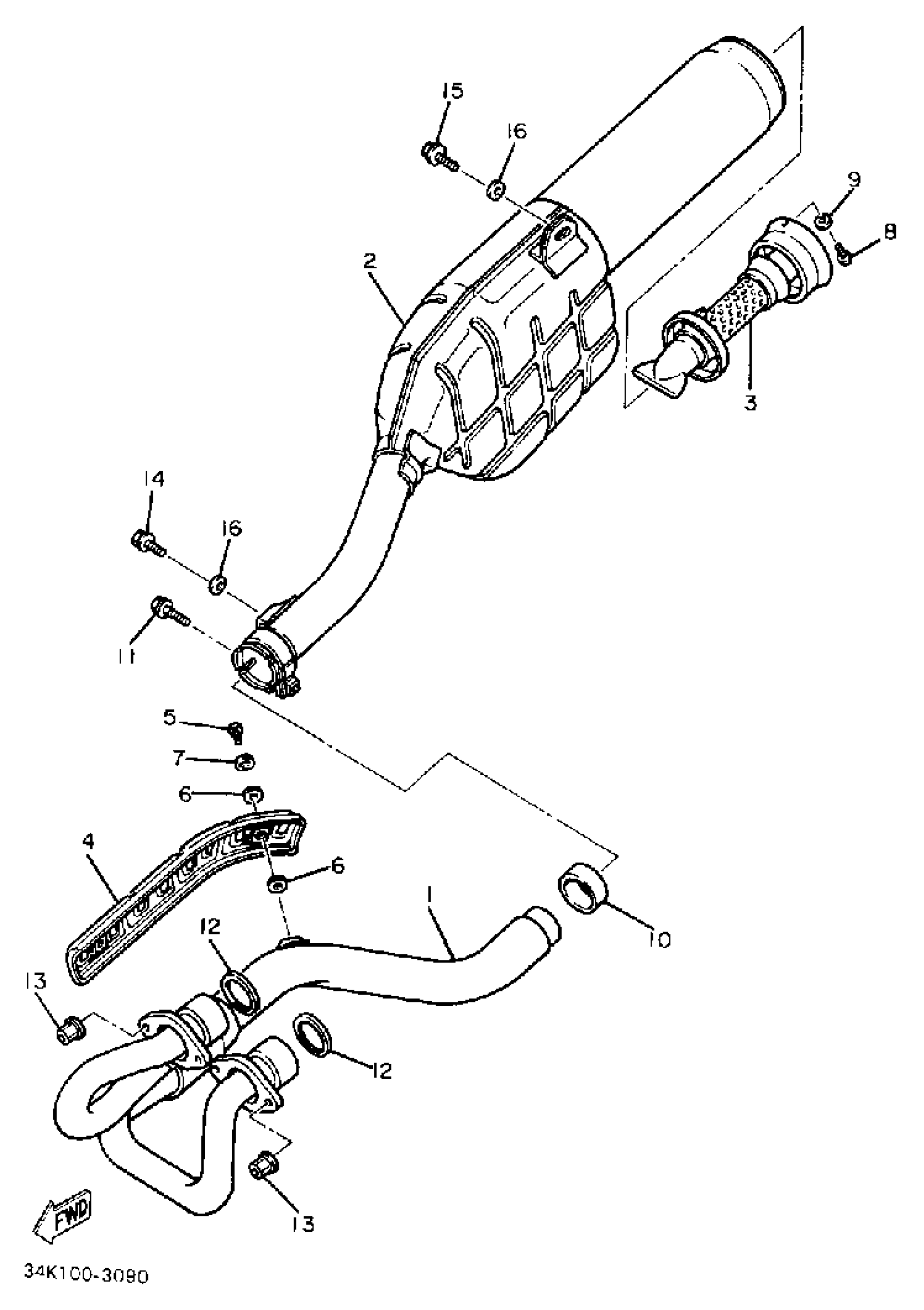

1986 Yamaha TT600 (TT600S) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST 1

34K-14611-01-00

1
Out of stock

2

MUFFLER L

34K-14711-02-00

1
Out of stock

3

PIPE, OUTLET

34K-14752-00-00

1
Out of stock

4

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

1
Out of stock

5

SCREW, TAPPING (30X)

90164-06017-00

1
Out of stock

6

WASHER, PROTECTOR

30X-14766-00-00

1
Out of stock

7

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

8

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

GASKET, SILENCER

3YF-14755-00-00

1

$29.10

In stock

11

BOLT, FLANGE(JN5)

95817-08045-00

1
Out of stock

12

GASKET, EXHAUST PIPE

3YF-14613-01-00

1

$11.58

In stock

13

NUT (1AE)

90179-06500-00

1
Out of stock

14

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

15

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

16

WASHER (853)

90201-08326-00

—

$6.17

In stock
