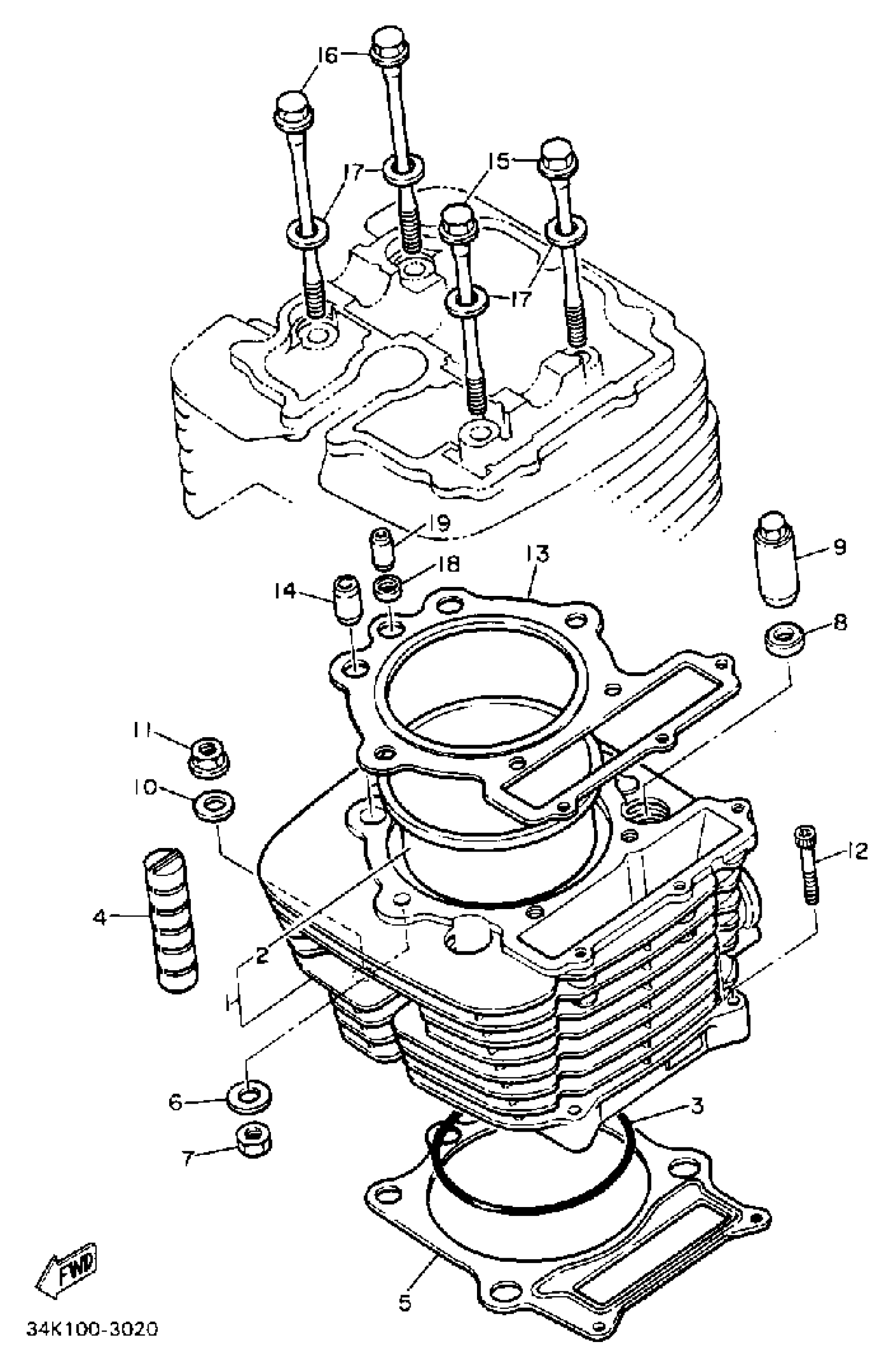

Yamaha TT600S (TT600) 1986 CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSEMBLY

99999-01957-00

Unavailable

2

. SLEEVE, CYLINDER

34K-11312-09-00

Unavailable

3

O-RING (5Y1)

93210-97524-00

$14.47

4

ABSORBER

583-11127-00-00

$6.28

5

GASKET, CYLINDER

1VJ-11351-00-00

Unavailable

6

WASHER, PLATE

90201-080L8-00

$2.61

7

NUT, CROWN (4G0)

90176-08026-00

$10.85

8

WASHER, PLATE (583)

90201-10590-00

$4.63

9

NUT

90179-10021-00

$20.11

10

WASHER, PLATE 3711117500

90201-10124-00

$6.15

11

NUT (2Y5)

90179-10279-00

$5.69

12

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

13

GASKET, CYLINDER HEAD

1JK-11181-02-00

Unavailable

14

PIN, DOWEL

99530-12016-00

$3.85

15

BOLT, WASHER BASED

90105-08464-00

Unavailable

16

BOLT,WASHER BASED

90105-08465-00

Unavailable

17

WASHER, PLATE

90201-080L7-00

Unavailable

18

GASKET (5Y1)

90430-08178-00

Unavailable

19

PIN, DOWEL(3XW)

91808-16023-00

Unavailable
