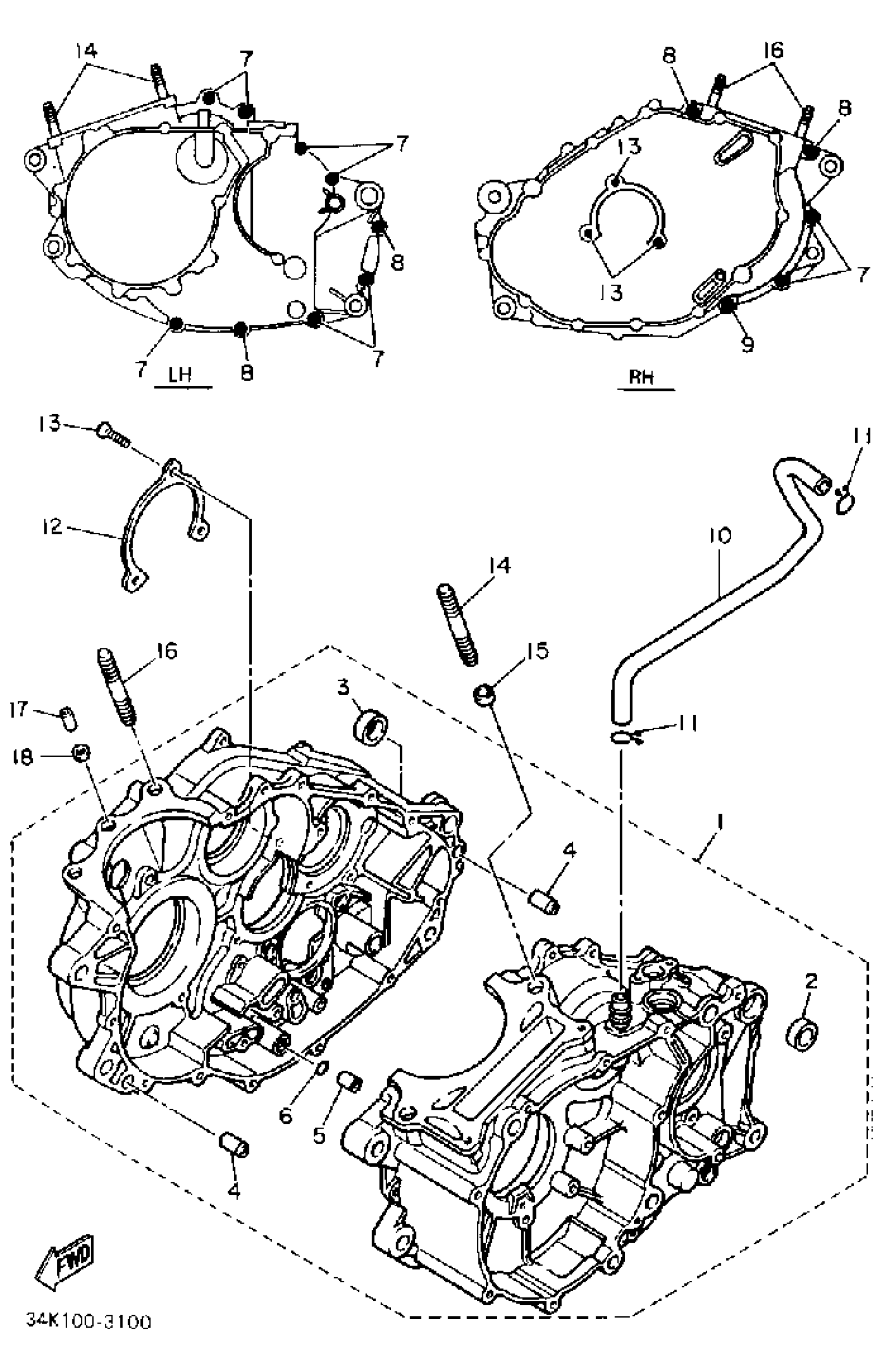

Yamaha TT600S (TT600) 1986 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

34L-15100-05-00

Unavailable

2

COLLAR

90387-17009-00

$13.50

3

COLLAR (3Y1)

90387-16782-00

$4.58

4

PIN, DOWEL

99530-12016-00

$3.85

5

PIN, DOWEL(3XW)

91808-16023-00

$5.26

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.00

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

8

BOLT,SOCKET

91317-06045-00

$3.14

9

BOLT,SOCKET

91317-06060-00

$3.05

10

PIPE, BREATHER 1

34L-11166-00-00

Unavailable

11

CLIP (371)

90467-14015-00

$7.03

12

PLATE, BEARING COVER

5Y1-15383-00-00

Unavailable

13

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

14

BOLT (363-11361-00)

90116-10087-00

$15.06

15

PIN, DOWEL

99530-14016-00

$2.98

16

BOLT, STUD (1W4)

90116-10263-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$5.26

18

GASKET (5Y1)

90430-08178-00

Unavailable
