1978 Yamaha TT500 (TT500E) Front Wheel Diagram

← All diagrams

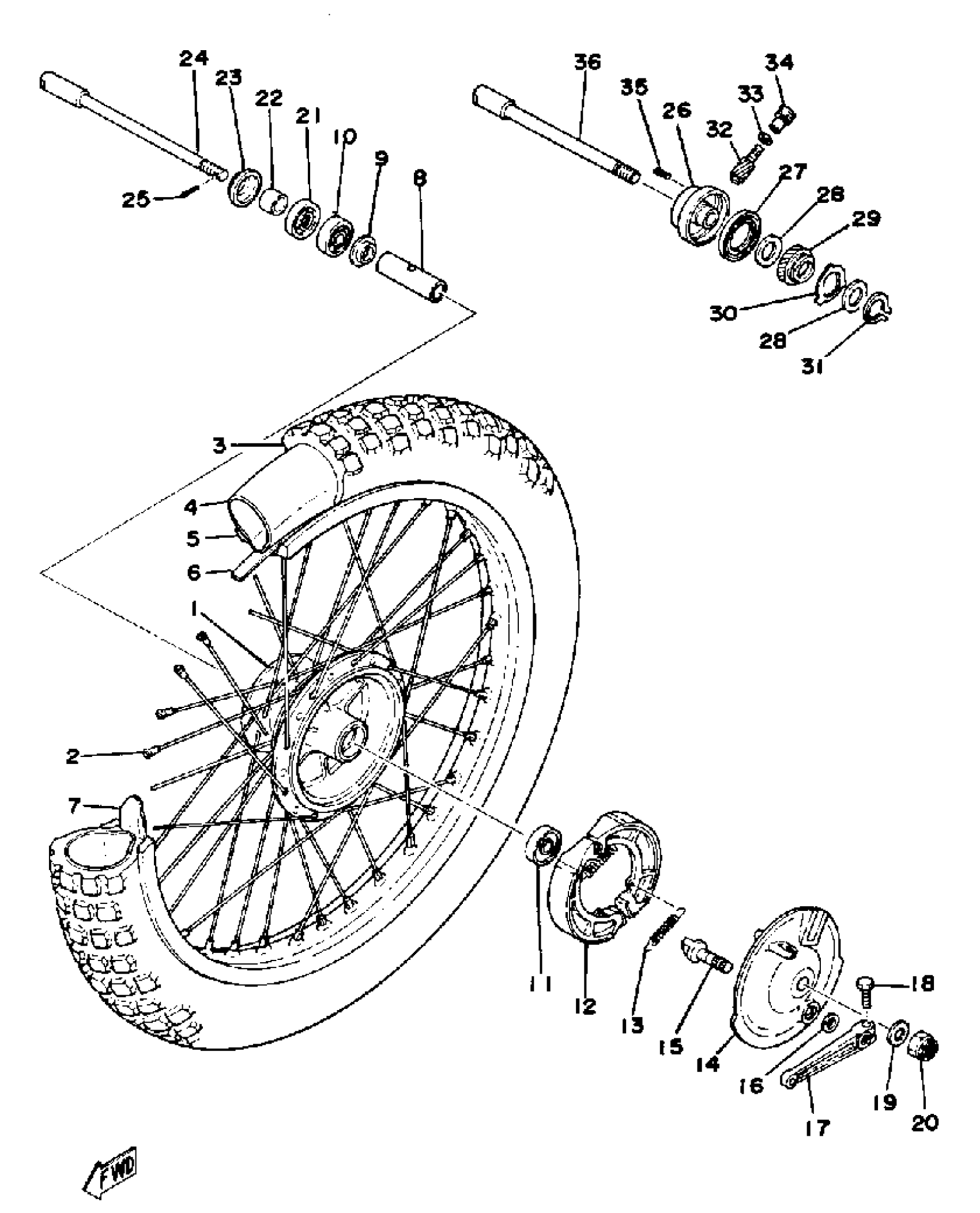

Find the part on the Front Wheel diagram for your 1978 Yamaha TT500 (TT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha TT500 (TT500E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

2

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK (3.00-21-4PR)

94-13021-24-80

1
Out of stock

4

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

5

RIM 1.60X21

94416-21326-00

1
Out of stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-15116-00

1
Out of stock

9

FLANGE, SPACER

146-25116-00-00

1
Out of stock

10

BEARING

93306-20205-00

1

$32.63

In stock

11

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

12

BRAKE SHOE KIT

322-W253A-10-00

1

$31.99

In stock

13

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

14

PLATE, BRAKE SHOE

(483-25121-00-98)

1
Out of stock

15

CAMSHAFT

23X-25151-00-00

1
Out of stock

16

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

17

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

18

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

19

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

20

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

21

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

22

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

23

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

24

AXLE, WHEEL

583-25181-00-00

1
Out of stock

25

PIN, COTTER

91490-30030-00

—

$7.15

In stock

26

HOUSING, GEAR

(1K7-25191-00-00)

1
Out of stock

27

OIL SEAL(3BC)

93106-40027-00

—

$13.22

In stock

28

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

29

GEAR, DRIVE

(1K7-25135-00-00)

1
Out of stock

30

CLUTCH, METER

1K7-25149-00-00

1
Out of stock

31

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

32

GEAR, METER

(1K7-25138-00-00)

1
Out of stock

33

SHIM, ROD

102-18416-00-00

1
Out of stock

34

BUSH

306-25136-00-00

1
Out of stock

35

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

36

AXLE, WHEEL

(3R3-25181-00-00)

1
Out of stock
