1970 Suzuki TS250 Piston - Crankshaft Diagram

← All diagrams

Find the part on the Piston - Crankshaft diagram for your 1970 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

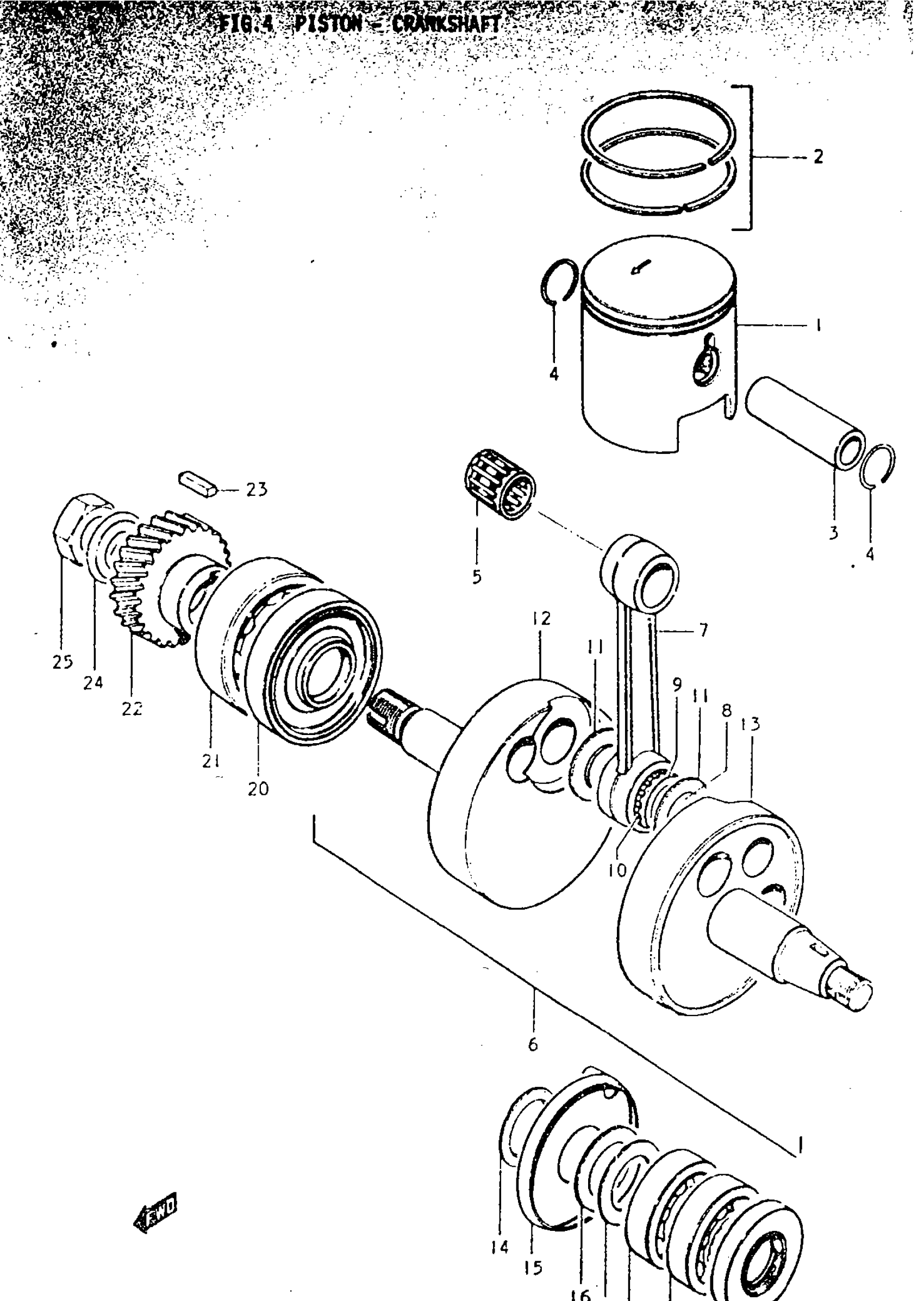

1970 Suzuki TS250 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12110-16400

—
Out of stock

1

PISTON | OS: 0.5

12110-16700

1
Out of stock

1

PISTON | OS: 1.0

12110-16710

1
Out of stock

2

RING ASSY, PISTON This part replaces 12140-15011.

12140-15013

1
Out of stock

2

RING ASSY, PISTON | OS:0.5 This part replaces 12140-15700.

12140-15013-050

1
Out of stock

2

RING ASSY, PISTON | OS:1.0 This part replaces 12140-15710.

12140-15013-100

1
Out of stock

3

PIN, PISTON This part replaces 12151-15000.

12151-13A00-0A0

1
Out of stock

4

CIRCLIP

09381-18002

2
Out of stock

5

BEARING (18X23X24) This part replaces 09263-18005.

09263-18021

1
Out of stock

6

CRANKSHAFT ASSY | ~F. NO.23125 TO 12200-16860

12003-16809

—
Out of stock

6

CRANKSHAFT ASSY | 2; TO 12200-16840; Includes Item(s) 7 - 13

12004-16809

—
Out of stock

7

ROD, CONNECTING

12161-16400

1
Out of stock

8

PIN, CRANK

12211-16400

1
Out of stock

9

BEARING | TO 09263-25008 OD:3, L:15.8 This part replaces 12215-16410.

09263-25008

1
Out of stock

10

NEEDLE ROLLER | TO 09263-25008 OD:3, L:15.8

09261-03006

14
Out of stock

11

WASHER | 25x42x1 This part replaces 09160-25004.

09160-25024

2
Out of stock

12

CRANKSHAFT, RH

12221-16401

—
Out of stock

13

CRANKSHAFT, LH | 12 SCREW ~F.NO. 23215

12261-16402

1
Out of stock

13

CRANKSHAFT, LH | 2; 14 SCREW

12261-16403

1
Out of stock

14

SPACER, CRANKSHAFT LH

12353-16300

—
Out of stock

15

PLATE, OIL GUIDE

12511-15000

1
Out of stock

16

WASHER, SUB T/M DRIVE This part replaces 08211-25401.

09181-25251

2
Out of stock

17

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

18

BEARING, LH This part replaces 08113-62050.

09262-25003

1
Out of stock

19

SEAL,OIL,25X44X | 24x44x7 This part replaces 09283-25009.

09283-25107

1
Out of stock

20

OIL SEAL | 35x62x9

09283-35004

1
Out of stock

21

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

22

GEAR, PRIMARY DRIVE | 1; NT:22

21111-16400

—
Out of stock

22

GEAR, PRIMARY DRIVE | 2; NT:20

21111-16401

—
Out of stock

23

KEY

09421-07001

1
Out of stock

24

LOCK WASHER

09166-16006

1
Out of stock

25

NUT

09140-16004

1
Out of stock
