1970 Suzuki TS250 Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1970 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

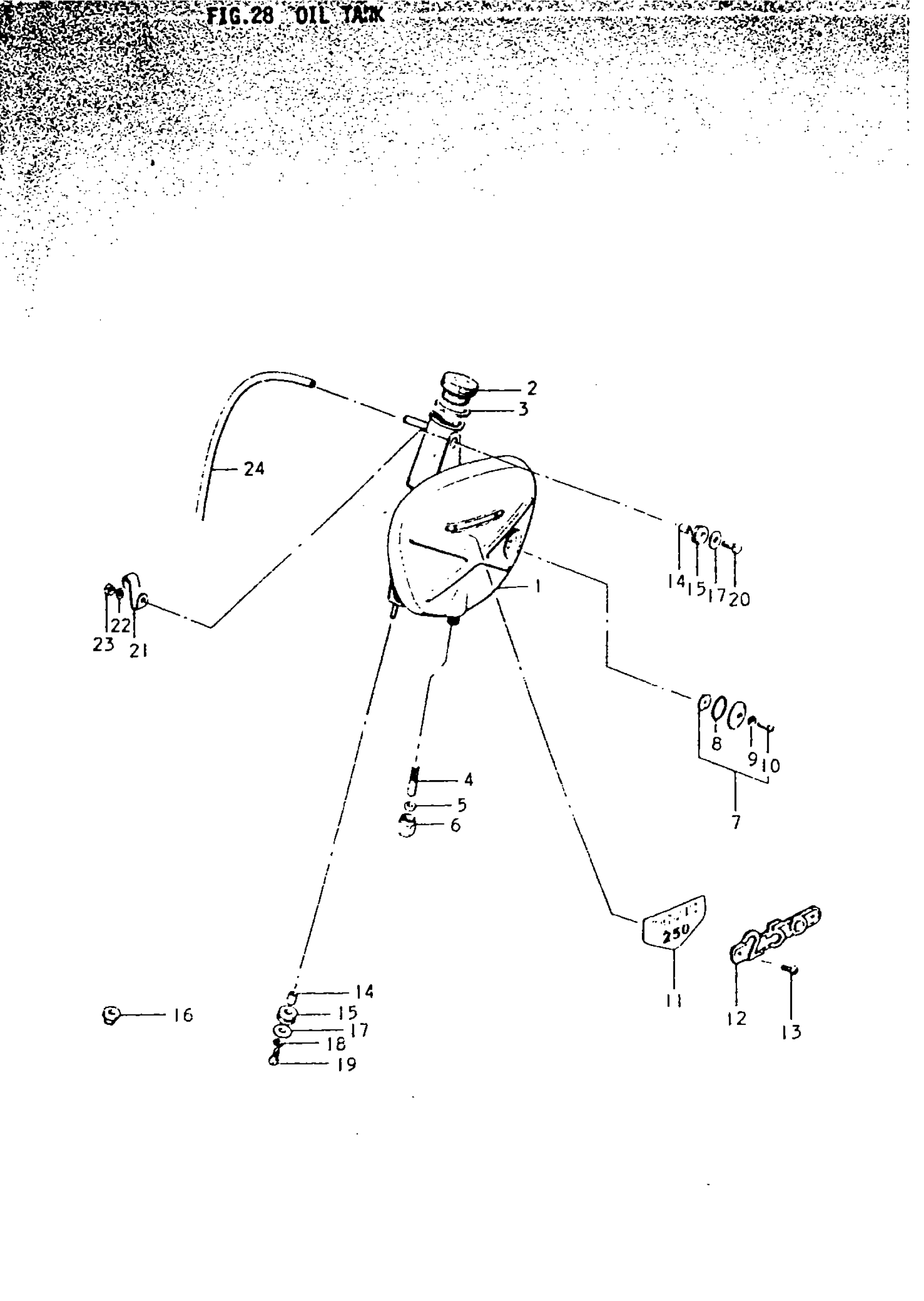

1970 Suzuki TS250 Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL | 1

44610-16400-126

—
Out of stock

1

TANK, OIL | 2

44610-16401-126

—
Out of stock

2

CAP, OIL TANK

44651-11040

1

$16.98

In stock

3

GASKET,OIL TANK This part replaces 44661-11000.

44661-11001

1
Out of stock

4

NET, FILTER

44720-11030

1

$6.08

In stock

5

GASKET

44733-11030

1

$2.58

In stock

6

NUT

09361-14001

1
Out of stock

7

LENS SET, OIL LEVEL INSPECTION | FROM 44642-11000 AND 44641-11000 ID:23, D:3; Includes Item(s) 8 - 10

44640-11843

1
Out of stock

8

O RING | ID:23, D:3

09280-23001

1
Out of stock

9

GASKET | 5x9.5x1

09168-05001

1

$2.17

In stock

10

1

$2.10

In stock

11

EMBLEM | 2

68171-16400

1
Out of stock

12

EMBLEM | 1

68141-18400

1
Out of stock

13

2

$2.35

In stock

15

CUSHION (8.5X20X8) | 8.5x20x88.5x20x8 This part replaces 09320-08007.

09320-08510

3
Out of stock

16

CUSHION | 1

09320-05005

—
Out of stock

17

WASHER (6.5X20X1.2) | 6.5x20x1.26.5x20x1.2 This part replaces 09160-06027.

09160-06077

3
Out of stock

18

2

$2.28

In stock

19

BOLT | 2

01111-06168

—
Out of stock

20

1

$2.48

In stock

21

CLAMP

09403-00035

—
Out of stock

22

1

$2.28

In stock

23

1

$1.82

In stock

24

HOSE, BREATHER

09344-05010

—
Out of stock
