1976 Suzuki TS185 Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1976 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

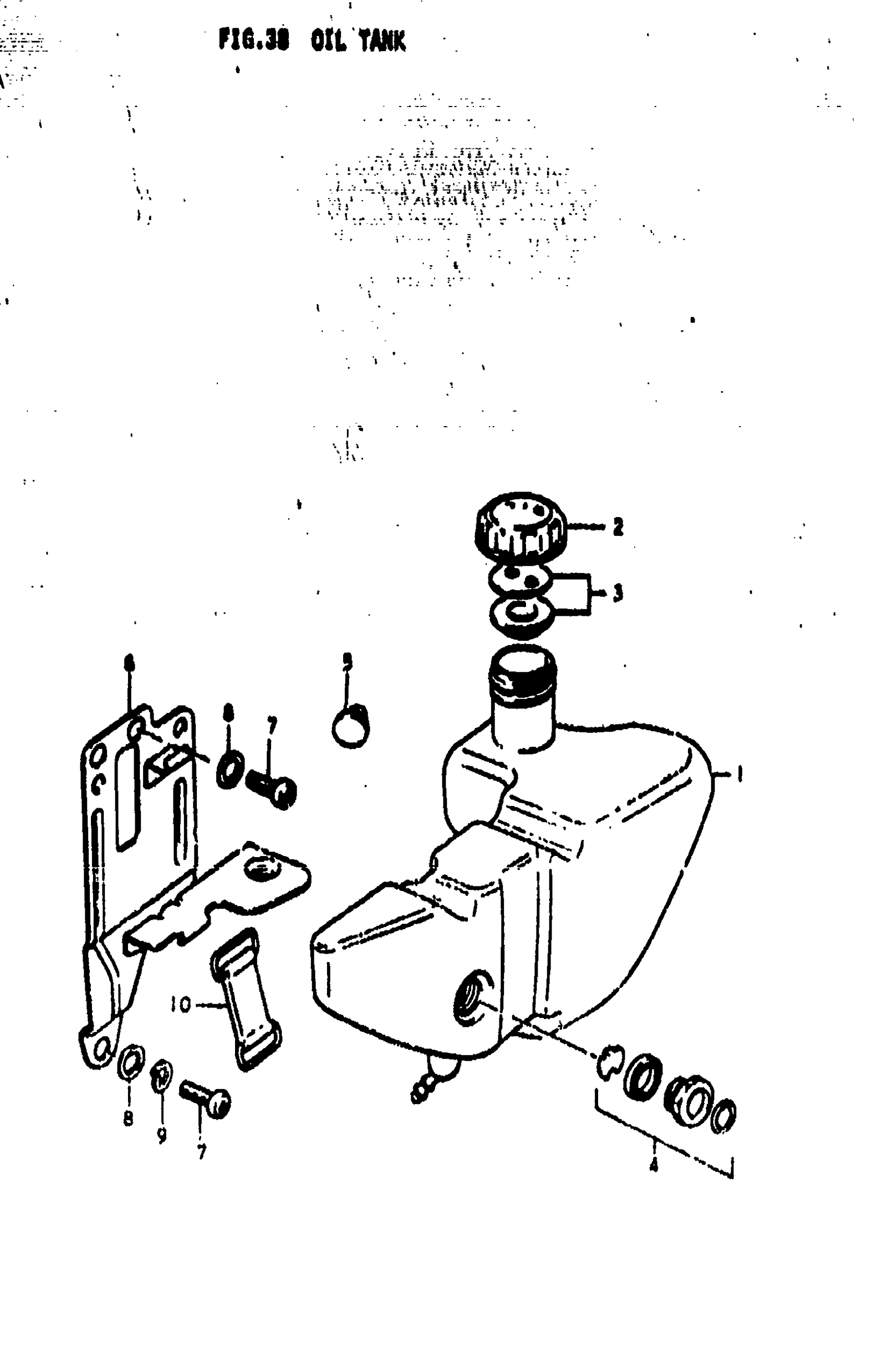

1976 Suzuki TS185 Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL | K,L,M

44611-29001

1
Out of stock

1

TANK, OIL | A

44611-29600

1
Out of stock

2

CAP, OIL TANK | K,L,M This part replaces 44651-05000.

44651-05003

1
Out of stock

2

CAP, OIL TANK | A; FROM 44651-05001 This part replaces 44651-05002.

44651-05003

1
Out of stock

3

GASKET SET | FROM 44600-35820 TO 44600-30832 This part replaces 44600-35821.

44600-30833

1
Out of stock

4

OIL LEVEL INSPE This part replaces 44600-31830.

44600-31832

1
Out of stock

5

CUSHION This part replaces 09321-06013.

09321-06036

1
Out of stock

6

HOLDER, OIL TANK | K,L,M

44820-29000

1
Out of stock

6

HOLDER, OIL TANK | A

44820-29600

1
Out of stock

7

SCREW This part replaces 02111-06128.

02112-06127

3
Out of stock

8

.WASHER | KL,M,A This part replaces 08322-21065.

08322-0106B

3
Out of stock

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

3
Out of stock

10

BAND

09462-00046

1
Out of stock
