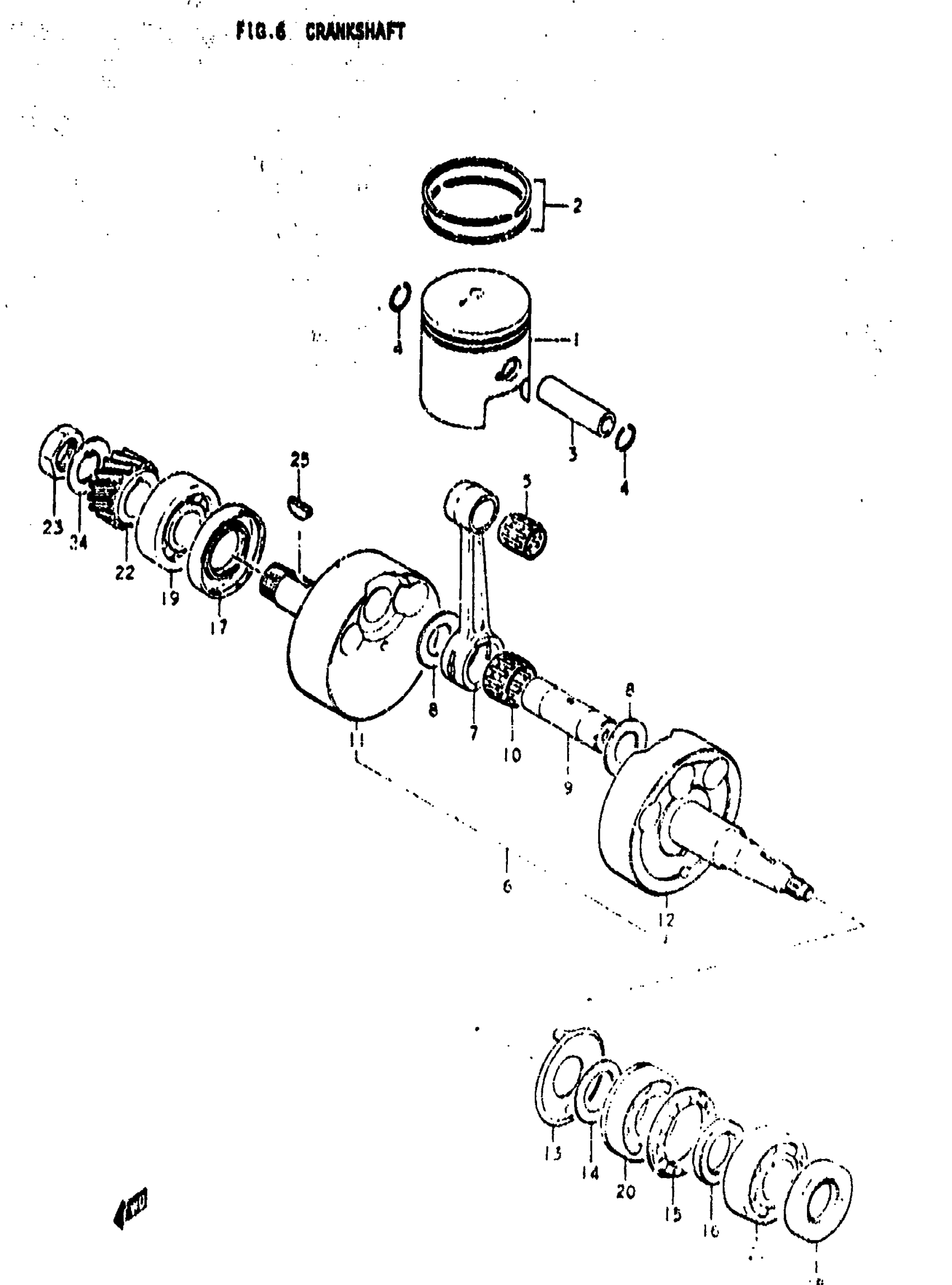

Suzuki TS185 (1976) CRANKSHAFT Diagram

PISTON | K,L,M; TO 12110-29001 This part replaces 12110-29000.

12110-29001

Unavailable

PISTON

12110-29001

Unavailable

PISTON SET | K,L,M This part replaces 12110-29710.

12103-29830-050

Unavailable

PISTON SET | A This part replaces 12110-29711.

12103-29830-050

Unavailable

NO DESCRIPTION AVAILABLE | K,L,M;OS 1.0 TO 12110-29711 This part replaces 12110-29720.

12110-29001-100

Unavailable

NO DESCRIPTION AVAILABLE | OS: 1.0 This part replaces 12110-29721.

12110-29001-100

Unavailable

RING SET, PISTON

12140-29010

$27.68

RING SET, PLSTON | 06:0.5 This part replaces 12140-29710.

12140-29010-050

$49.08

RING SET, PLSTON | OS:1.0 This part replaces 12140-29760.

12140-97311

Unavailable

PIN, PISTON | TO 12151-29001 This part replaces 12151-29000.

12151-29001

$15.27

CIRCLIP

09381-16001

$1.45

RN 16X21X19.6BR This part replaces 09263-16005.

09263-16015

$14.22

CRANKSHAFT SET | FROM 12001-29803; Includes Item(s) 7 - 12

12200-29810

Unavailable

CONECTING ROD | FROM 12161-29000 This part replaces 12161-93000.

12161-41500

$148.30

WASHER | 22x35x1

09160-22010

$7.10

PIN, CRANK

12211-29001

$43.83

RN 22X28X16 BRG This part replaces 09263-22006.

09263-22032

$29.98

CRANKSHAFT, RH

12221-29002

Unavailable

CRANKSHAFT, LH

12261-29001

Unavailable

PLATE, OIL GUIDE | K,L; TO 12511-29100

12511-29001

Unavailable

PLATE, OIL GUIDE | M,A

12511-29100

Unavailable

SHIM | 25x34x0.5

08221-25345

Unavailable

SPACER, CRANKSHAFT

12353-29001

Unavailable

SPACER | 25x38x6

09180-25035

Unavailable

OIL SEAL, RH

09283-26007

$6.65

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

$6.76

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$21.00

BEARING, LH

08163-62050

$29.98

BEARING, LH This part replaces 08113-62050.

09262-25003

$22.40

GEAR, PRIMARY DRIVE | NT:19

21111-29000

Unavailable

NUT

09140-18002

$4.20

WASHER | 18x32x0.8

09166-18001

$2.74

KEY

08341-31059

$2.50
