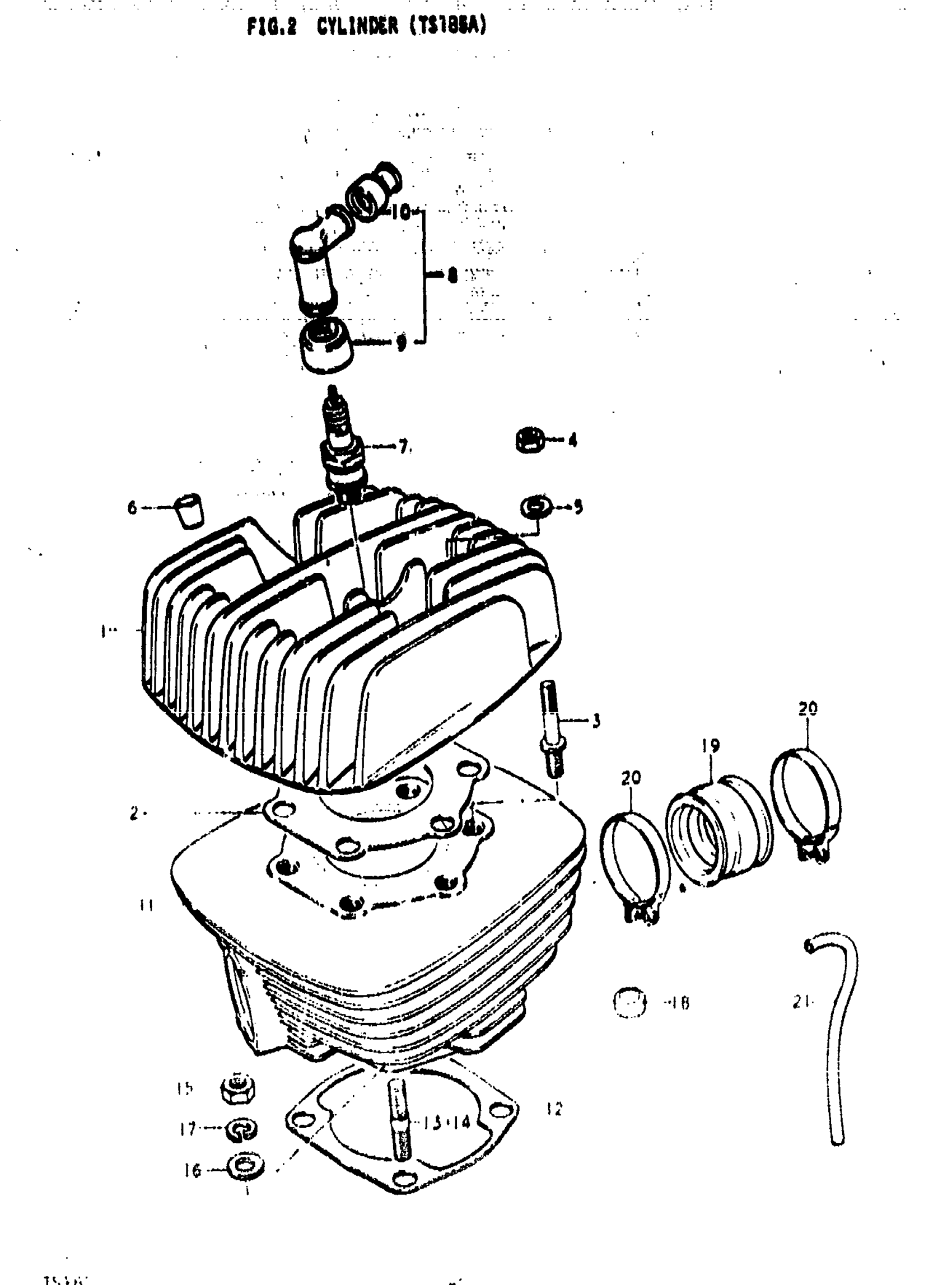

Suzuki TS185 (1976) CYLINDER (TS185A) Diagram

#

Description
Price

1

CYLINDER HEAD

11111-29600

Unavailable

2

GASKET This part replaces 11141-29600.

11141-29900

$23.67

3

STUD BOLT

09108-08018

$3.01

4

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.12

5

WASHER This part replaces 08322-21088.

08322-01087

$1.92

6

PAD, CYLINDER HEAD | TO 11252-25000 This part replaces 11151-25000.

11252-25000

$4.46

7

SPARK PLUG | NGK, 87HS

09482-00082

$2.83

7

SPARK PLUG | ND, W22FS

09482-00083

Unavailable

8

CAP SET,SPARK P | Includes Item(s) 9 - 10 This part replaces 33500-69810.

33500-69811

Unavailable

9

SEAL, SPARK PLUG

33541-69010

$4.29

10

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15

11

CYLINDER

11210-29601

Unavailable

12

GASKET, CYLINDER

11241-29600

Unavailable

13

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.00

14

BOLT,STUD This part replaces 01421-10608.

01421-1060A

$4.45

15

NUT This part replaces 08312-11108.

08310-00107

$2.25

16

WASHER This part replaces 08322-11108.

08322-01107

$1.95

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

18

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.67

19

PIN, INTAKE

13111-29630

Unavailable

20

CLAMP This part replaces 09402-48306.

09402-48208

$4.32

21

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.33
