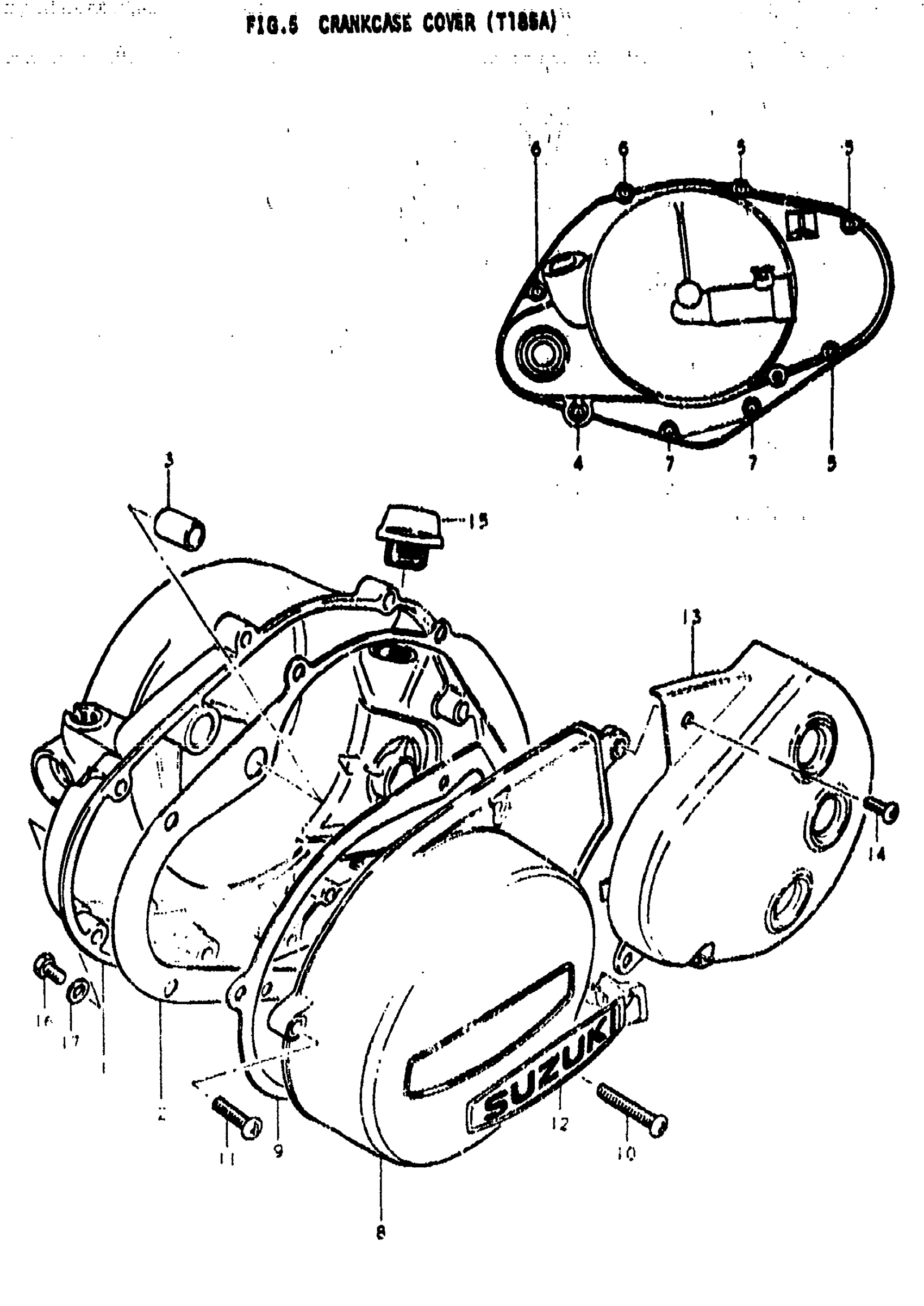

Suzuki TS185 (1976) CRANKCASE COVER (TS185A) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-29200

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-29000.

11482-29001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06657

$2.64

5

SCREW This part replaces 02112-06358.

02112-06357

$1.77

6

SCREW This part replaces 02112-06258.

02112-06257

$1.68

7

SCREW This part replaces 02112-06208.

02112-06207

$1.77

8

COVER, MAGNETO

11351-29200

Unavailable

9

GASKET

11483-29000

Unavailable

10

SCREW

02112-06307

$1.99

11

SCREW This part replaces 02112-06258.

02112-06257

$1.68

12

EMBLEM

68233-28000

$9.18

13

COVER, ENGINE SPROCKET | FROM 11361-29610

11360-29610

Unavailable

14

SCREW This part replaces 02111-05108.

02112-05107

$1.43

15

PLUG This part replaces 09259-19001.

09259-19005

$2.80

16

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

17

GASKET

09168-06001

$1.28
