1972 Yamaha TR3 (TR3) Radiator Diagram

← All diagrams

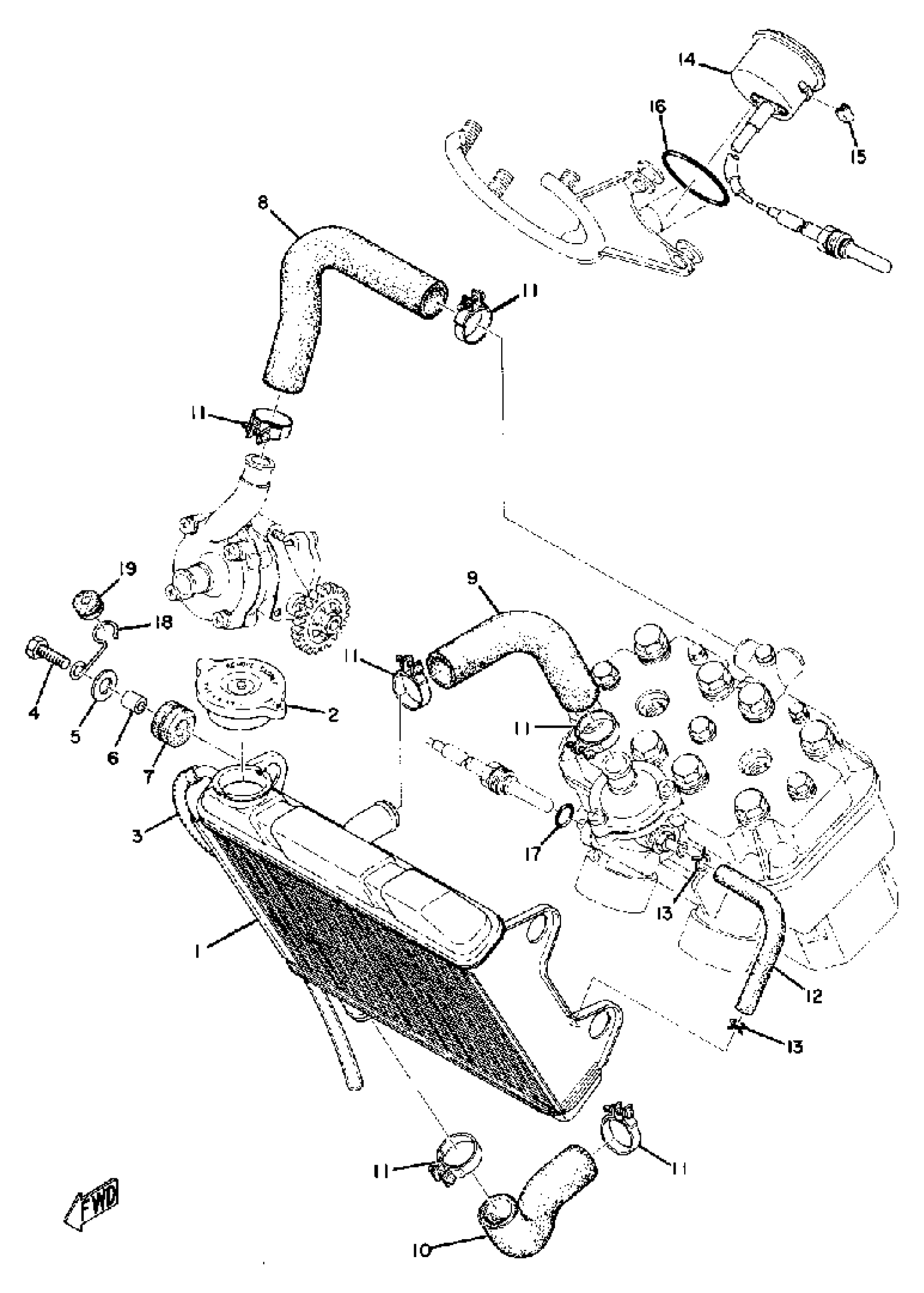

Find the part on the Radiator diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSEMBLY

(383-12460-01-00)

1
Out of stock

2

CAP, RADIATOR

11H-12462-00-00

1
Out of stock

3

PIPE, BREATHER

(383-12463-00-00)

1
Out of stock

4

BOLT, FLAT HD.DRILL

(95201-08025-00)

1
Out of stock

5

WASHER, PLATE

(90201-09368-00)

1
Out of stock

6

COLLAR (12X)

90387-085G3-00

1
Out of stock

7

GROMMET(87A)

90480-20527-00

1

$10.06

In stock

8

PIPE 1

(383-12481-00-00)

1
Out of stock

9

PIPE 2

(383-12482-00-00)

1
Out of stock

10

PIPE 4

(383-12484-00-00)

1
Out of stock

11

CLAMP, HOSE

90460-38292-00

1
Out of stock

12

PIPE 3

(383-12483-00-00)

1
Out of stock

13

CLIP(3BM)

90467-10135-00

1

$6.91

In stock

14

WATER TEMP METER

(409-83590-01-00)

1
Out of stock

15

CLIP

90468-10001-00

1
Out of stock

16

O-RING

93210-56077-00

1
Out of stock

17

O-RING (260)

93210-10118-00

—

$5.86

In stock

18

CLAMP

(90462-20002-00)

1
Out of stock

19

GROMMET

90480-10178-00

1
Out of stock
