1972 Yamaha TR3 (TR3) Crank - Piston Diagram

← All diagrams

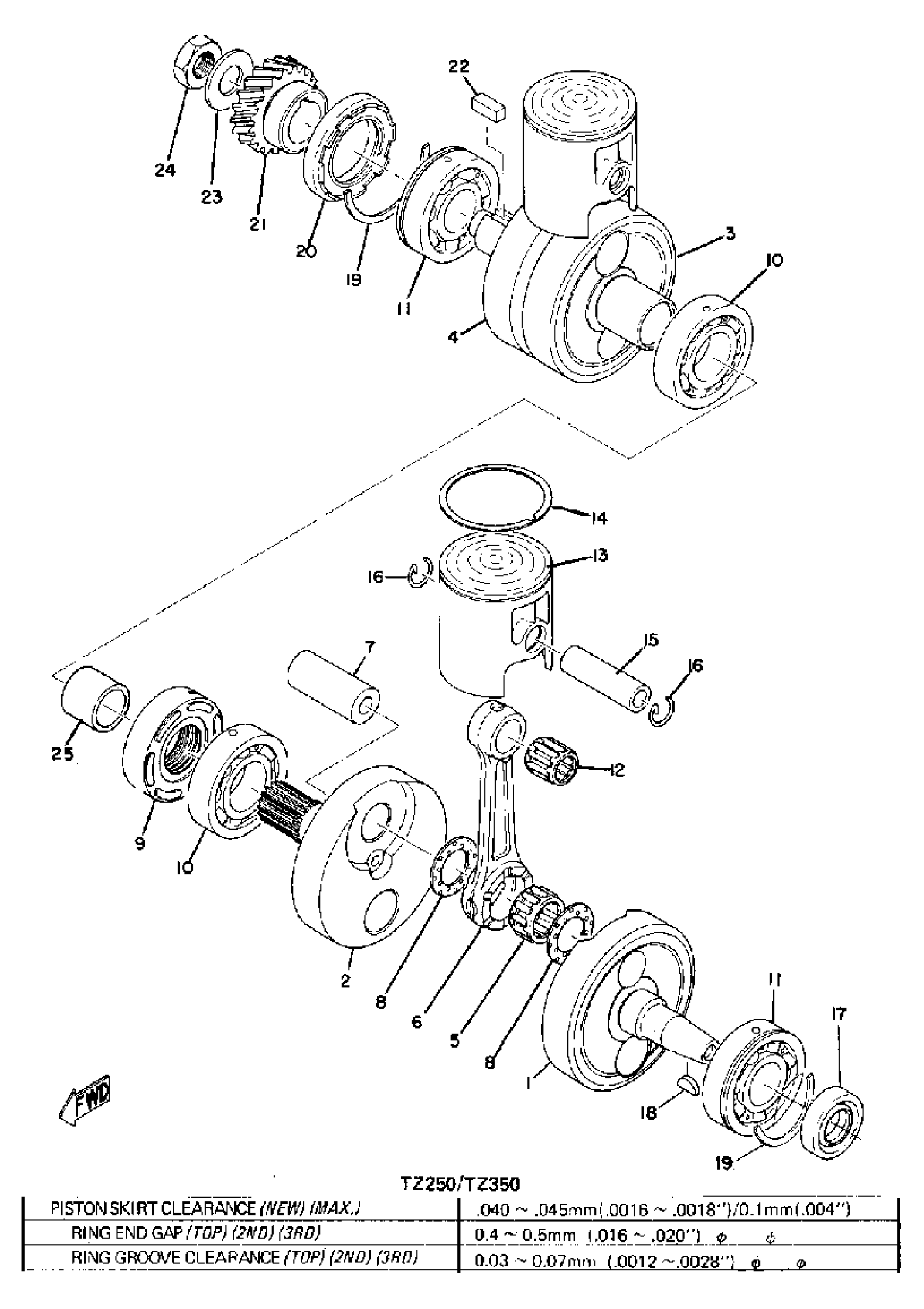

Find the part on the Crank - Piston diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. CRANK 1

328-11412-02-00

1
Out of stock

1

CRANKSHAFT ASSEMBLY

3G2-Y1140-00-00

1
Out of stock

2

CRANK 2

(328-11422-02-00)

1
Out of stock

3

CRANK 3

(328-11432-02-00)

1
Out of stock

4

CRANK 4

(328-11442-02-00)

1
Out of stock

5

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

6

CONNECTING ROD ASSEMBLY

3G2-11650-09-00

1
Out of stock

7

PIN, CRANK

8G8-11681-00-00

1

$24.98

In stock

8

WASHER (29L)

90209-22248-00

—
Out of stock

9

. SEAL, LABYRINTH 1

328-11515-00-00

1
Out of stock

10

. BEARING

93306-20614-00

1
Out of stock

11

. BEARING, CYLINDER #90

93390-00012-00

1
Out of stock

12

1

$23.03

In stock

12

BEARING, NEEDLE (24X)

93310-216L2-00

1

$28.54

In stock

13

PISTON STD (63.96MM)

1H4-11631-02-96

1
Out of stock

13

PISTON STD

(328-11631-01-96)

1
Out of stock

13

PISTON STD

(328-11631-01-97)

1
Out of stock

13

PISTON STD

(328-11631-01-98)

1
Out of stock

13

PISTON STD

(328-11631-01-99)

1
Out of stock

13

PISTON STD

(329-11631-00-96)

1
Out of stock

13

PISTON STD

(329-11631-00-97)

1
Out of stock

13

PISTON STD

(329-11631-00-98)

1
Out of stock

13

PISTON STD

(329-11631-00-99)

1
Out of stock

13

PISTON STD

(383-11631-01-97)

1
Out of stock

13

PISTON STD (53.97MM)

430-11631-01-96

1
Out of stock

14

RING,PISTON(STD)

328-11611-00-00

—

$33.43

In stock

14

RING, PISTON STD

329-11611-00-00

1
Out of stock

15

PIN,PISTON

280-11633-00-00

—

$27.37

In stock

15

PIN, PISTON

4L0-11633-00-00

—
Out of stock

16

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

17

OIL SEAL, SW-TYPE

93103-20046-00

1
Out of stock

17

OIL SEAL (20X40X10-360)

93103-20076-00

—

$25.78

In stock

18

KEY,WOODRUFF

90280-04005-00

1
Out of stock

19

CIRCLIP

278-17424-01-00

—
Out of stock

19

CIRCLIP 1

328-17424-00-00

1
Out of stock

20

OIL SEAL, SW-TYPE

(93103-40058-00)

1
Out of stock

20

OIL SEAL (40X62X10-360)

93103-40077-00

—
Out of stock

21

GEAR, PRI DRIVE (25T)

328-16111-00-00

1
Out of stock

21

GEAR, PRI DRIVE

(329-16111-00-00)

1
Out of stock

22

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

23

SPRING

214-16119-00-00

—
Out of stock

24

NUT

90170-16425-00

—
Out of stock

25

COLLAR (328-11513-00)

90387-32204-00

1
Out of stock
