1972 Yamaha TR3 (TR3) OIL Pump Diagram

← All diagrams

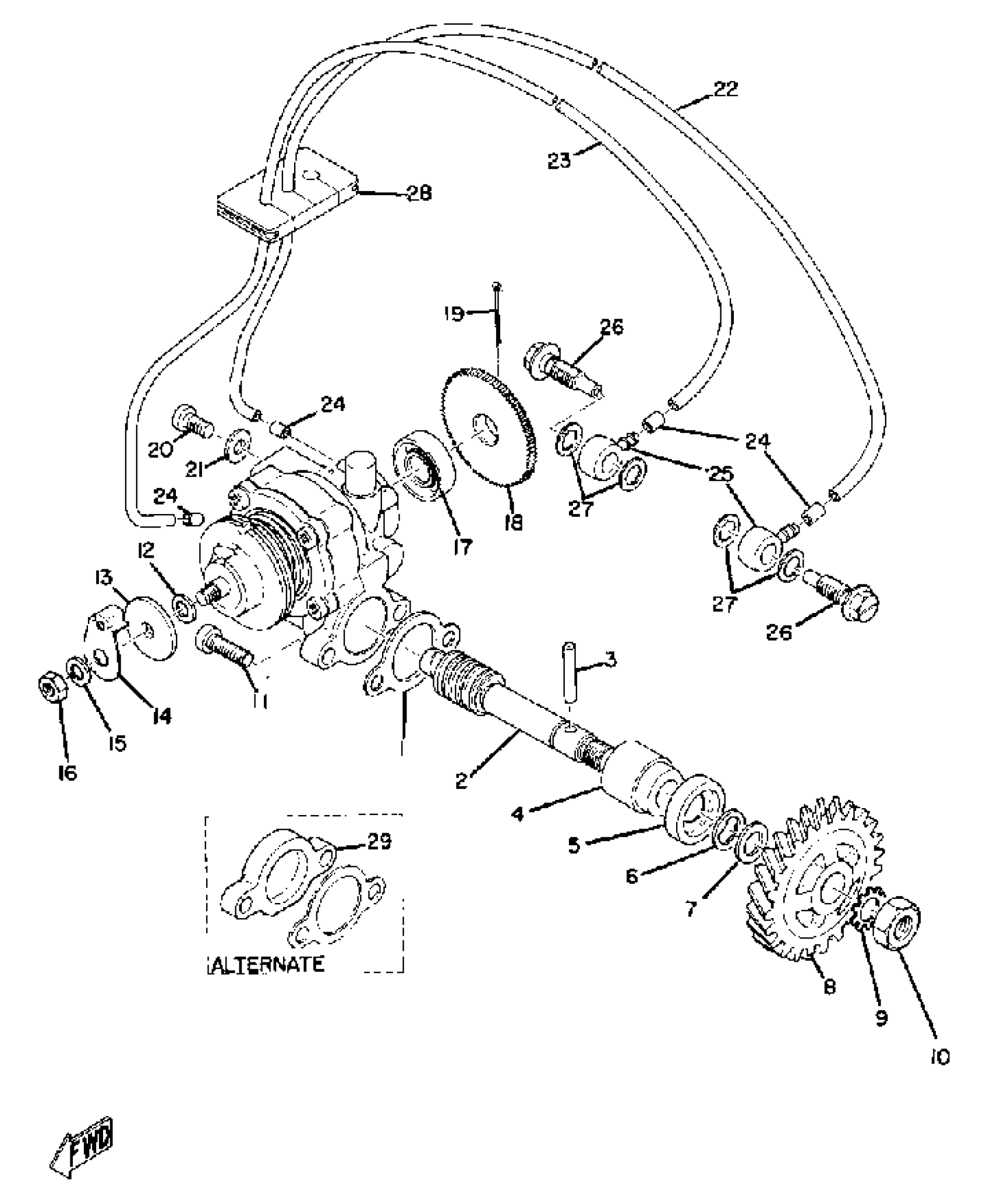

Find the part on the OIL Pump diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(328-13101-00-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

275-13175-02-00

1

$22.03

In stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

7

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

8

GEAR, PUMP DRIVE

(328-13178-00-00)

1
Out of stock

8

GEAR, PUMP DRIVE

(329-13178-00-00)

1
Out of stock

9

WASHER (688)

92990-08400-00

1

$3.46

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

18

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

19

. PIN, COTTER

91401-12018-00

1
Out of stock

20

SCREW, BIND

98980-04008-00

1

$3.26

In stock

21

GASKET 137131870000

90430-04004-00

—
Out of stock

22

HOSE (L700)

90445-05M07-00

1
Out of stock

23

HOSE (L700)

90445-05M07-00

1
Out of stock

24

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

25

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

26

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

27

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

28

HOLDER, OIL PIPE

278-13174-00-00

1
Out of stock

29

COVER, PUMP UNIT

161-15426-00-00

—
Out of stock
