1972 Yamaha TR3 (TR3) Crankcase Cover Diagram

← All diagrams

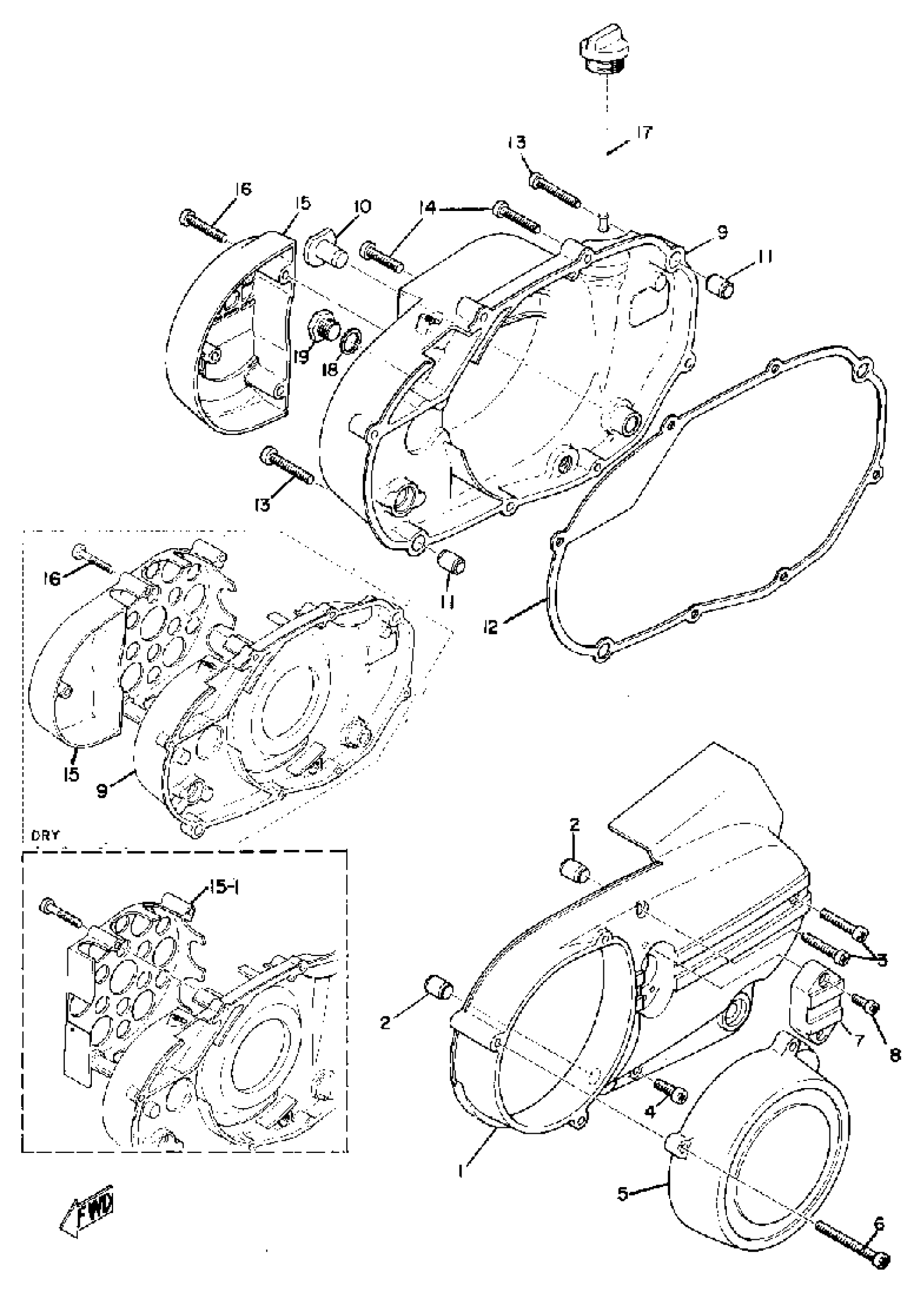

Find the part on the Crankcase Cover diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(328-15411-00-00)

1
Out of stock

1

COVER, OIL PUMP

(383-15416-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

SCREW, PAN

98507-06035-00

1

$6.18

In stock

4

SCREW, PAN

98517-06020-00

1
Out of stock

5

COVER, GENERATOR

(328-15415-00-00)

1
Out of stock

6

SCREW, PAN

98507-06060-00

1

$5.60

In stock

7

COVER, CAP

(328-15417-00-00)

1
Out of stock

8

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

9

COVER, CRANKCASE R

328-15421-10-00

1
Out of stock

9

COVER, CRANKCASE R

383-15421-11-00

1
Out of stock

10

PLUG(3AJ)

90338-22207-00

1

$3.92

In stock

11

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

12

1

$29.85

In stock

13

SCREW, PAN

98507-06040-00

1

$2.25

In stock

14

SCREW, PAN

98517-06030-00

1
Out of stock

15

COVER, OIL PUMP

328-15416-00-00

1
Out of stock

15

COVER, OIL PUMP

328-15416-10-00

1
Out of stock

15

COVER, OIL PUMP

383-15416-00-00

1
Out of stock

16

SCREW, PAN

98507-06040-00

1

$2.25

In stock

16

SCREW, PAN

98507-06040-00

1

$2.25

In stock

17

PLUG, OIL

278-15363-00-00

1
Out of stock

18

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

19

PLUG,STRAIGHT SCRW

90340-14033-00

1
Out of stock
