1970 Yamaha TR2 (TR2) Gear Unit Diagram

← All diagrams

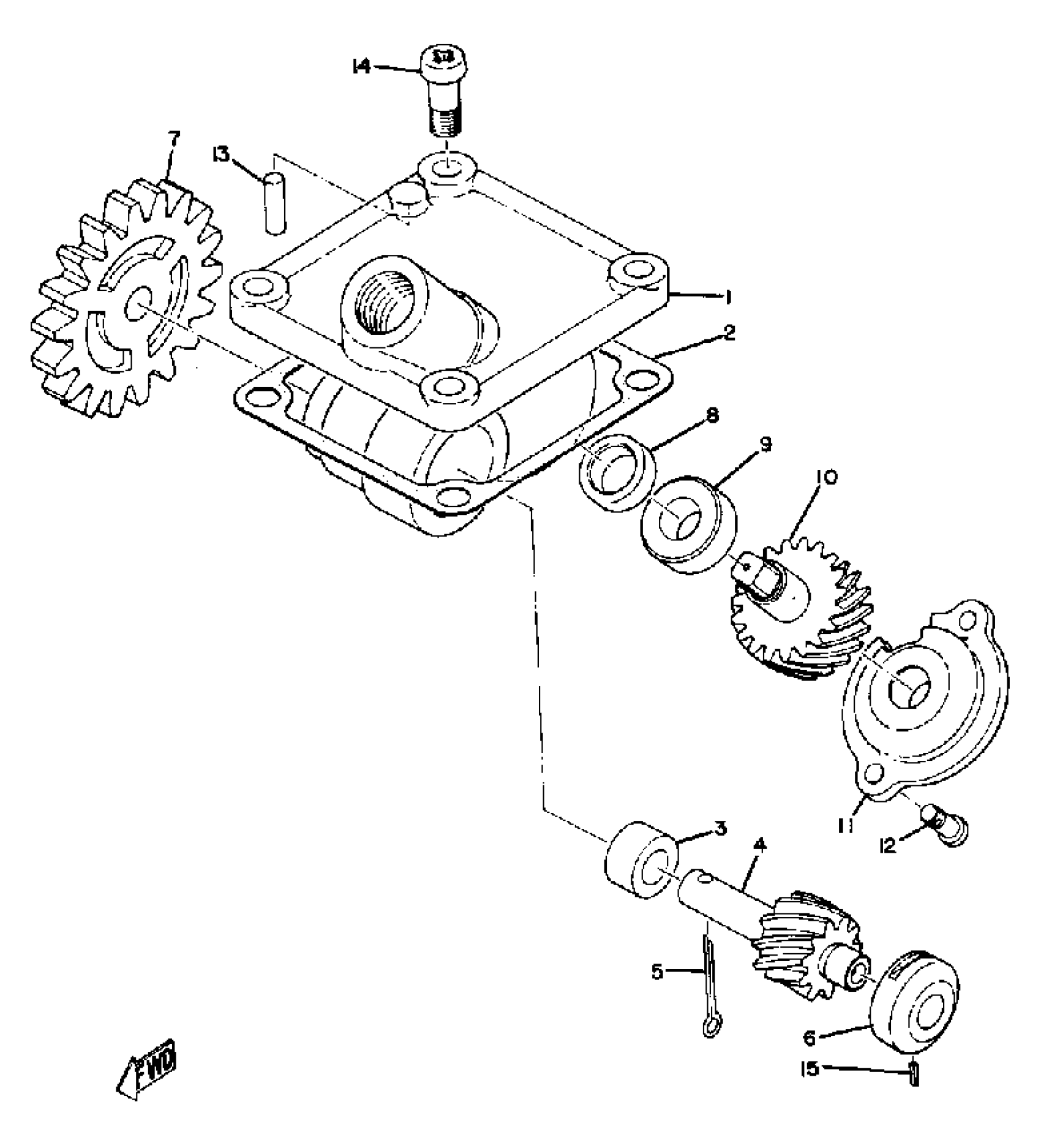

Find the part on the Gear Unit diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, TACH GEAR

(168-17811-01-00)

1
Out of stock

2

GASKET

(168-17818-00-00)

1
Out of stock

3

BUSH, SOLID

(90380-08003-00)

1
Out of stock

4

GEAR, DRIVE

(168-17831-00-00)

1
Out of stock

5

PIN COTTER

91490-30025-00

1
Out of stock

6

BUSH, DR GEAR OUTER

(168-17833-00-00)

1
Out of stock

7

GEAR, PRIMARY

(239-17851-00-00)

1
Out of stock

8

OIL SEAL,SDO-TYPE

93109-10023-00

1
Out of stock

9

BUSH, SOLID

(90380-10008-00)

1
Out of stock

10

GEAR, DRIVEN

(168-17842-00-00)

1
Out of stock

11

COVER, HOUSING

(168-17821-00-00)

1
Out of stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

14

SCREW, PAN

98507-06014-00

1

$6.18

In stock

15

. PIN, SPRING

91609-20008-00

1
Out of stock
