1970 Yamaha TR2 (TR2) Clutch Diagram

← All diagrams

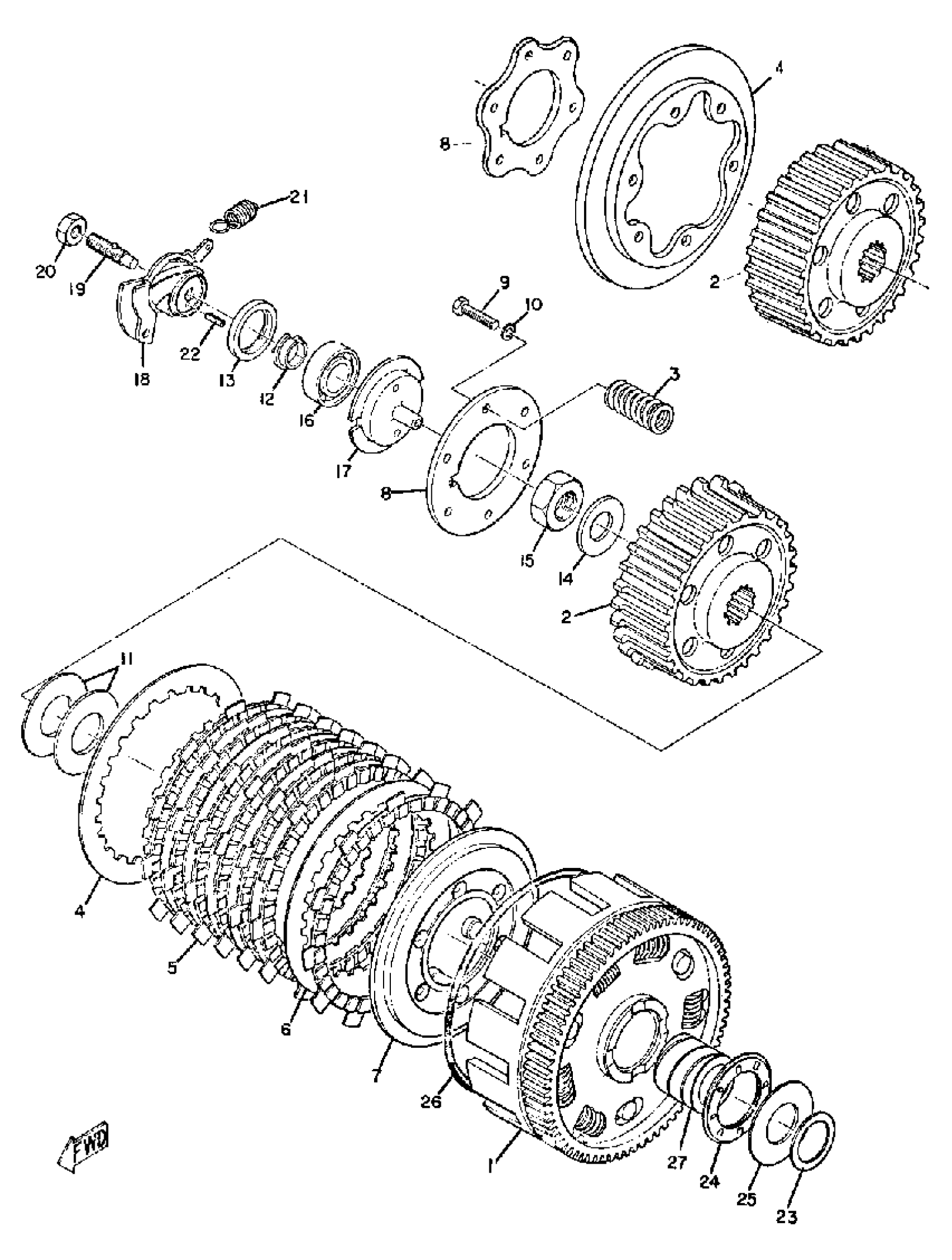

Find the part on the Clutch diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(239-16150-01-00)

1
Out of stock

2

BOSS, CLUTCH

(239-16371-01-00)

1
Out of stock

3

1

$11.72

In stock

4

PLATE, CLUTCH 1

(177-16324-00-00)

1
Out of stock

4

PLATE, CLUTCH 3

(239-16326-00-00)

1
Out of stock

5

PLATE, FRICTION

(240-16321-01-00)

1
Out of stock

6

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

7

PLATE, PRESSURE 1

(168-16351-91-00)

1
Out of stock

8

PLATE, PRESSURE 2

(239-16352-00-00)

1
Out of stock

9

SCREW, HEXAGON

(92603-06020-00)

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

12

PLUG, PUSH

(168-16349-00-00)

1
Out of stock

13

OIL SEAL

93101-25030-00

1
Out of stock

14

SPRING

214-16119-00-00

—
Out of stock

15

NUT

90170-18089-00

1
Out of stock

16

BEARING, CYLINDER.#16

(93316-00301-00)

1
Out of stock

17

CROWN, PUSH

(168-16348-00-00)

1
Out of stock

18

PUSH LEVER ASSEMBLY

(168-16340-00-00)

1
Out of stock

19

BOLT, SET

(90113-08025-00)

1
Out of stock

20

. NUT

95380-08700-00

1

$3.07

In stock

21

SPRING, TENSION

90506-10023-00

1
Out of stock

22

PIN, SPRING

91690-30014-00

1

$6.23

In stock

23

PLATE, THRUST 1

(168-16154-02-00)

1
Out of stock

24

BEARING, FLAT #41

93341-23504-00

1
Out of stock

25

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

26

O-RING

(93211-10097-00)

1
Out of stock

27

SPACER 1

(170-16181-00-00)

1
Out of stock
