2001 Suzuki TL1000S Transmission Diagram

← All diagrams

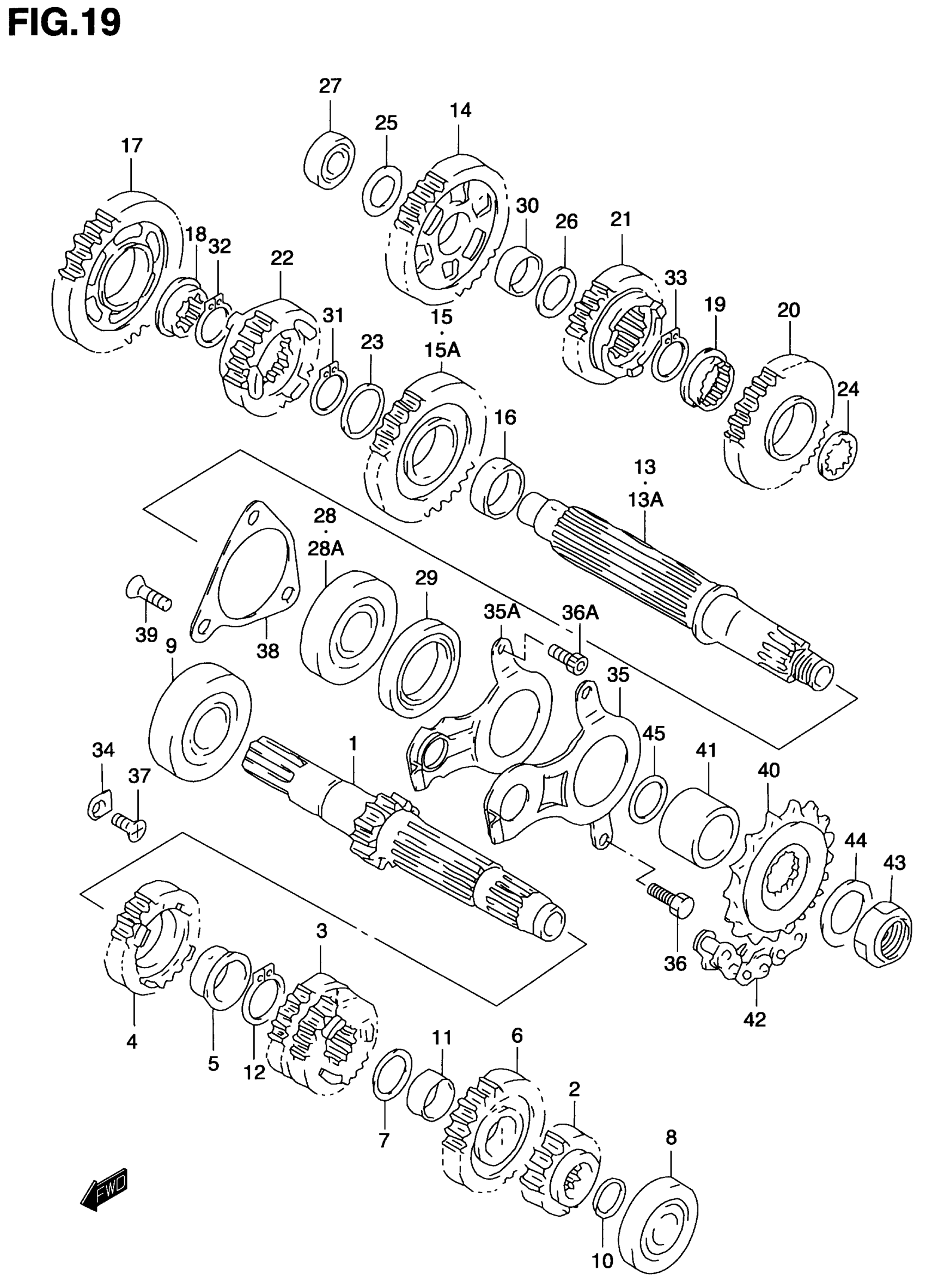

Find the part on the Transmission diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki TL1000S Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:12) | MODEL V This part replaces 24120-02F01.

24120-02F06

1
Out of stock

1

SHAFT, COUNTER (NT:12) | MODEL W This part replaces 24120-02F02.

24120-02F06

1
Out of stock

2

GEAR, 2ND DRIVE (NT:15)

24221-02F01

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE (NT:18) | MODEL V This part replaces 24231-02F00.

24231-02F01

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE (NT:18) | MODEL W

24231-02F01

1
Out of stock

4

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-02F01.

24251-02F11

1
Out of stock

5

BUSH, 5TH DRIVE GEAR This part replaces 24252-02F00.

24252-02F10

1
Out of stock

6

GEAR,6TH DRIVE (NT:24) This part replaces 24261-02F01.

24261-02F20

1
Out of stock

7

1

$2.92

In stock

8

BEARING, DRIVE SHAFT, LH | 20X47X14 This part replaces 09262-20081.

09262-20139

1
Out of stock

9

1

$25.11

In stock

10

1

$3.98

In stock

11

1

$31.78

In stock

12

CIRCLIP, 5TH DRIVE

09380-27001

1
Out of stock

13

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 24130-02F01.

24130-02F02

1
Out of stock

13A

SHAFT, DRIVE | MODEL W This part replaces 24130-02F03.

24130-02F04

1
Out of stock

14

GEAR, 1ST DRIVEN (NT:32) | MODEL V This part replaces 24311-02F01.

24311-02F02

1
Out of stock

14

GEAR, 1ST DRIVEN (NT:32) | MODEL W

24311-02F02

1
Out of stock

16

BUSH, 2ND

24322-02F01

1
Out of stock

17

GEAR, 3RD DRIVEN (NT:27) | MODEL V This part replaces 24331-02F00.

24331-02F12

1
Out of stock

17

GEAR, 3RD DRIVEN (NT:27) | MODEL W This part replaces 24331-02F01.

24331-02F12

1
Out of stock

18

BUSH, 3RD

24332-17E10

1
Out of stock

19

BUSH, 4TH

24332-17E10

1
Out of stock

20

NO DESCRIPTION AVAILABLE This part replaces 24341-02F00.

24341-02F11

1
Out of stock

21

GEAR, 5TH DRIVEN (NT:25) | MODEL V This part replaces 24351-02F01.

24351-02F03

1
Out of stock

21

GEAR, 5TH DRIVEN (NT:25) | MODEL W

24351-02F03

1
Out of stock

23

1

$4.00

In stock

24

WASHER, 3RD & 4TH | 27X36X2

09167-27002

1
Out of stock

25

WASHER, 1ST DRIVEN RH | 20X34X1

09181-20251

1
Out of stock

26

1

$3.97

In stock

27

BEARING, DRIVE SHAFT RH | 20X52X15

09262-20082

1
Out of stock

28

BEARING, DRIVE SHAFT LH | MODEL V 28X68X18

09262-28037

1
Out of stock

28A

1

$123.15

In stock

29

1

$15.48

In stock

29

1

$28.09

In stock

30

BUSH, 1ST DRIVEN

24312-02F00

1

$31.78

In stock

31

CIRCLIP, 2ND

09380-27001

1
Out of stock

32

CIRCLIP, 3RD

09380-27001

1
Out of stock

33

CIRCLIP, 4TH

09380-27001

1
Out of stock

34

RETAINER, CENTER SHAFT

24741-21A00

1
Out of stock

35

RETAINER, DRIVE SHAFT OIL SEAL | MODEL V

24751-02F00

1
Out of stock

35A

RETAINER, DRIVE SHAFT | MODEL W This part replaces 24751-02F01.

24751-06G00

1
Out of stock

36

BOLT | MODEL V This part replaces 01500-06123.

01500-0612A

3
Out of stock

36A

BOLT | MODEL W This part replaces 07130-06123.

07130-0612A

2
Out of stock

37

SCREW This part replaces 02112-06123.

02112-0612A

1
Out of stock

38

RETAINER, DRIVE SHAFT BRG | MODEL W

24741-02F00

1
Out of stock

39

SCREW, DRIVE SHAFT (6X12) | MODEL W

09126-06011

3
Out of stock

41

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 27531-24B10.

27531-24B11

1
Out of stock

42

CHAIN ASSY (RK50GSVZ3,104L) This part replaces 27600-17C20-104.

27600-24F30-104

1
Out of stock

43

NUT

09159-20004

1
Out of stock

44

WASHER (25X40X1.5)

09181-25268

1

$3.13

In stock

45

1

$5.46

In stock
