2001 Suzuki TL1000S Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

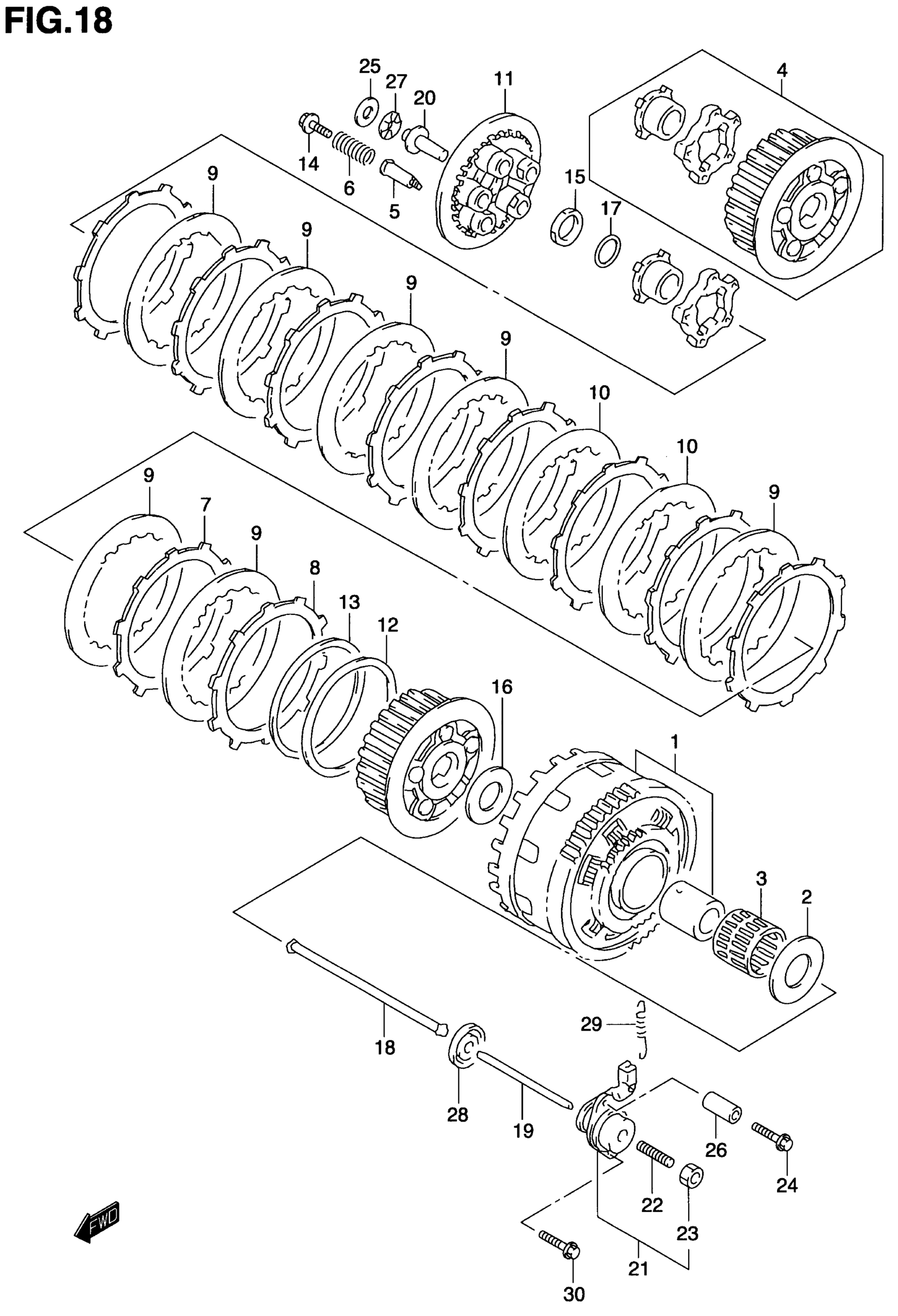

2001 Suzuki TL1000S Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN

21200-02810

1
Out of stock

2

WASHER (25X54X2.5) | MODEL V

09160-25067

1
Out of stock

2

WASHER (25X54X2.5) | MODEL W

09160-25071

1
Out of stock

3

BEARING (35X40X35.8)

09263-35017

1
Out of stock

4

CAM SET, CLUTCH

21610-02F00

1
Out of stock

5

BOLT, CLUTCH SPRING

21411-02F00

5
Out of stock

6

SPRING, CLUTCH ASSIST

21413-02F00

5
Out of stock

7

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-31E40.

21441-31E50

9
Out of stock

8

PLATE, CLUTCH DRIVE NO.2

21442-31E00

1
Out of stock

9

PLATE, CLUTCH DRIVEN NO.1 | T:1.6

21451-31E00

7
Out of stock

10

PLATE, CLUTCH DRIVEN NO.2 | T:2.0

21451-31E10

2
Out of stock

11

DISK, CLUTCH PRESSURE

21462-02F00

1
Out of stock

12

SEAT, WAVE WASHER

21471-31E00

1
Out of stock

13

WASHER, CLUTCH PLATE WAVE

21472-31E01

1
Out of stock

14

BOLT, CLUTCH SPRING

21482-13E00

5
Out of stock

15

NUT, CLUTCH SLEEVE HUB

09159-24010

1
Out of stock

16

.WASHER (25X50X2.5) | MODEL V 25X50X2.5

09160-25056

1
Out of stock

16

WASHER, CLUTCH SLEEVE | MODEL W 25X50X2.5

09160-25072

1
Out of stock

17

WASHER, CLUTCH SLEEVE | 24.2X35X2

09164-24006

1
Out of stock

18

ROD, CLUTCH PUSH RH

23110-38B00

1
Out of stock

19

ROD, CLUTCH PUSH LH

23111-34C00

1
Out of stock

20

PIECE, CLUTCH PUSH

23121-38B00

1
Out of stock

21

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 22 - 23

23200-15500

1
Out of stock

22

SCREW

09134-06010

1
Out of stock

23

.NUT

08310-00067

1
Out of stock

24

BOLT This part replaces 09103-06197.

09103-06195

1
Out of stock

25

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

1
Out of stock

26

SPACER, CLUTCH RELEASE

09180-06322

1
Out of stock

27

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

1
Out of stock

28

SEAL, CLUTCH PUSH | 6X34X5.5

09285-06015

1
Out of stock

29

SPRING, CLUTCH RELEASE

09443-08047

1
Out of stock

30

BOLT This part replaces 01550-06603.

01550-0660A

1
Out of stock
