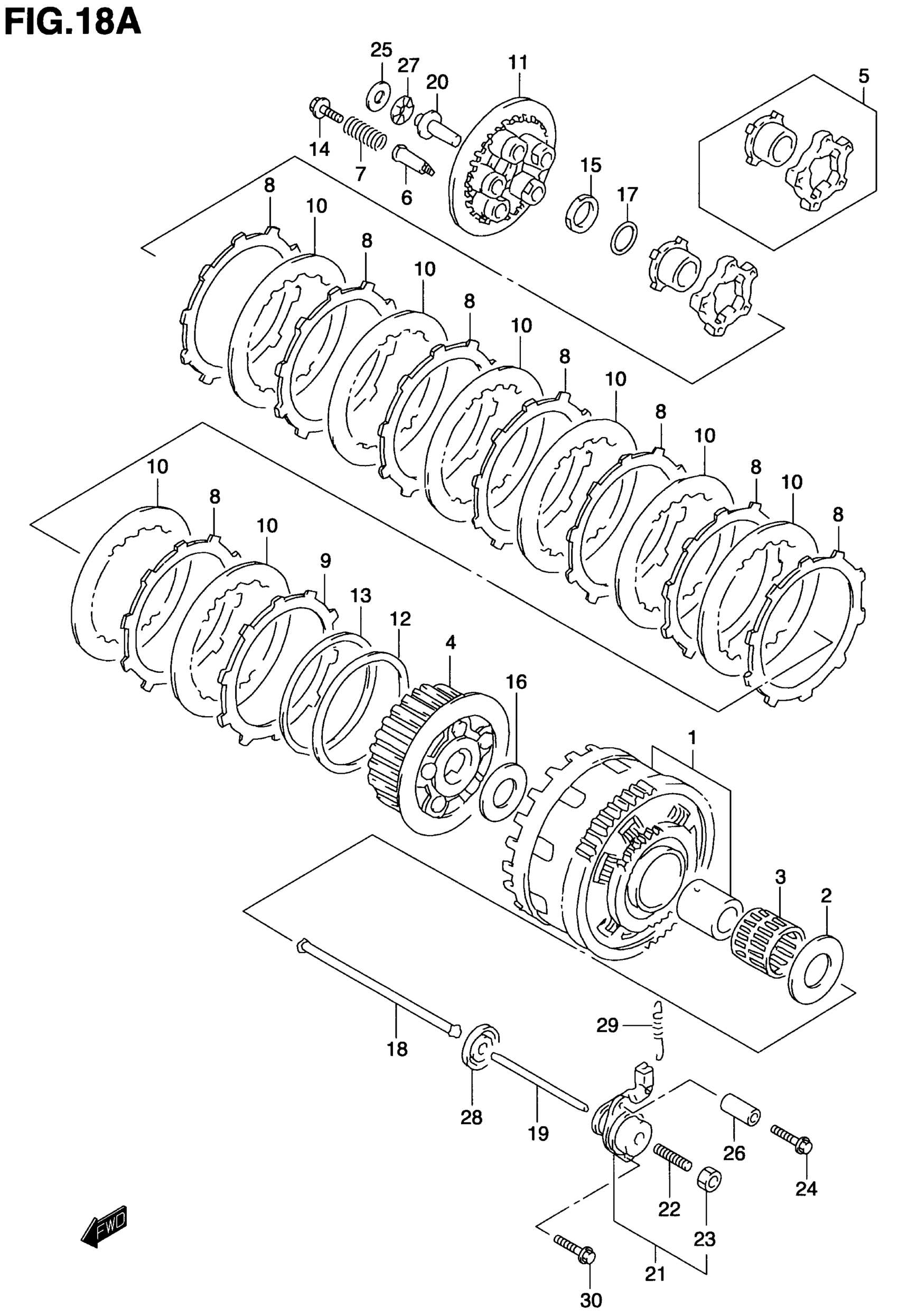

Suzuki TL1000S (2001) CLUTCH (MODEL X/Y/K1) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-02820

Unavailable

2

WASHER (25.1X54X2.5)

09160-25071

Unavailable

3

BEARING (35X40X35.8)

09263-35017

$37.12

4

HUB, CLUTCH SLEEVE

21410-02F10

Unavailable

5

CAM SET, CLUTCH

21610-02F12

$266.95

6

BOLT, SPRING SUPPORT | MODEL X/Y This part replaces 21481-02F10.

21481-02F12

$7.04

6

BOLT, SPRING SUPPORT | MODEL K1 This part replaces 21481-02F11.

21481-02F12

$7.04

7

SPRING, CLUTCH

21413-02F10

$8.72

8

PLATE, CLUTCH DRIVE | MODEL X This part replaces 21441-02F10.

21441-02F11

$32.63

8

PLATE, CLUTCH DRIVE | MODEL Y

21441-02F11

$32.63

8

PLATE, CLUTCH DRIVE | MODEL K1

21441-02F30

$32.63

9

PLATE, CLUTCH DRIVE NO.2 | MODEL X This part replaces 21442-02F10.

21442-02F11

$31.45

9

PLATE, CLUTCH DRIVE NO.2 | MODEL Y/K1

21442-02F11

$31.45

10

PLATE, CLUTCH DRIVEN | MODEL X/Y

21451-02F10

$14.78

10

PLATE, CLUTCH DRIVEN | MODEL K1

21451-02F30

$10.49

11

DISK, CLUTCH PRESSURE

21462-02F10

Unavailable

12

SEAT, WAVE WASHER

21471-02F10

$11.19

13

WASHER, CLUTCH PLATE WAVE

21472-02F10

$12.15

14

BOLT, CLUTCH SPRING | MODEL X/Y This part replaces 21482-02F10.

21482-02F12

$2.80

14

BOLT, CLUTCH SPRING | MODEL K1 This part replaces 21482-02F11.

21482-02F12

$2.80

15

NUT, CLUTCH SLEEVE HUB

09159-24010

$11.92

16

WASHER, CLUTCH SLEEVE | MODEL X/Y,25X50X2.5

09160-25072

Unavailable

16

.WASHER (25X50X2.5) | MODEL K1,25X50X2.5

09160-25056

$10.63

17

WASHER, CLUTCH SLEEVE | 24.2X35X2

09164-24006

$3.38

18

ROD, CLUTCH PUSH RH

23110-38B00

$21.22

19

ROD, CLUTCH PUSH LH

23111-05A01

$12.95

20

PIECE, CLUTCH PUSH

23121-38B00

$31.18

21

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 22 - 23

23200-15500

Unavailable

22

SCREW

09134-06010

$2.81

23

.NUT

08310-00067

$1.83

24

BOLT This part replaces 09103-06197.

09103-06195

$4.35

25

WASHER, CLUTCH PUSH | 15.5X218X1

09160-15045

$3.52

26

SPACER, CL RELEASE

09180-06322

$7.28

27

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$7.49

28

SEAL, CLUTCH PUSH | 6X34X5.5

09285-06015

$7.20

29

SPRING, CLUTCH RELEASE

09443-08047

Unavailable

30

BOLT This part replaces 01550-06603.

01550-0660A

$2.80
