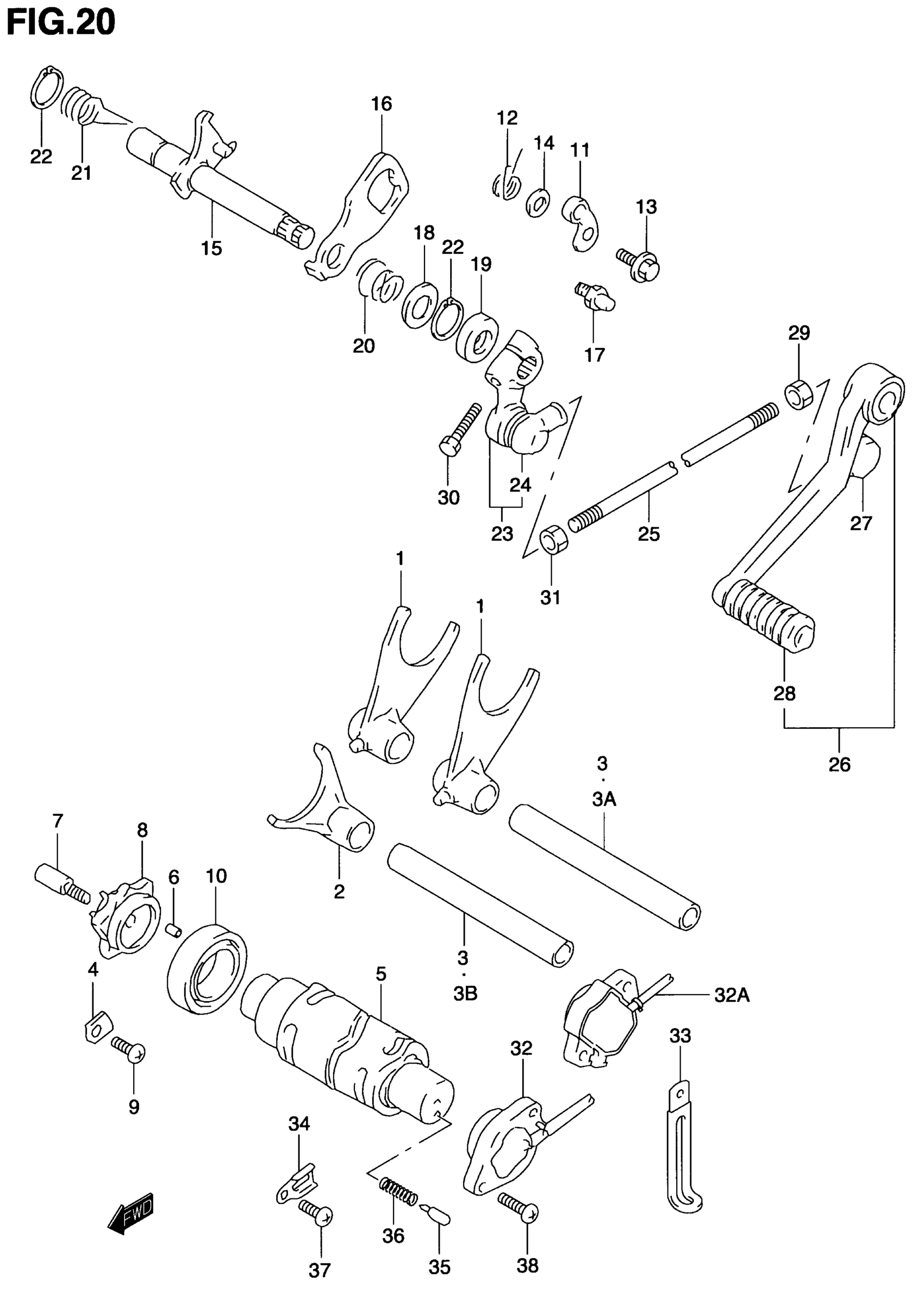

Suzuki TL1000S (2001) GEAR SHIFTING (MODEL V/W) Diagram

#

Description
Price

1

FORK, GEAR SHIFT This part replaces 25211-17E00.

25211-17E02

$81.95

2

FORK, GEAR SHIFT NO.3 This part replaces 25231-17E00.

25231-35F00

$119.43

3

SHAFT, GEAR SHIFT FORK NO.1 | MODEL V

25411-38A00

$33.02

3A

SHAFT, GEAR SHIFT FORK NO.1 | MODEL W

25411-02F00

Unavailable

3B

SHAFT, GEAR SHIFT FORK NO.2 | MODEL W

25411-02F10

Unavailable

4

RETAINER, SHIFT CAM

24741-21A00

$2.80

5

CAM, GEAR SHIFT | Includes Item(s) 6 This part replaces 25310-02F01.

25310-02F10

Unavailable

6

PIN (4X13.8)

04221-04089

$1.10

7

STOPPER, SHIFT CAM

25312-12C00

$9.08

8

PLATE, GEAR SHIFT

25381-13E10

$62.80

9

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

10

BEARING

08113-69050

$32.64

11

STOPPER, SHIFT CAM

25350-26D01

$18.30

12

SPRING, SHIFT CAM STOPPER This part replaces 25355-13E00.

25355-13E10

Unavailable

13

BOLT (6X14.3)

09111-06041

$2.63

14

WASHER

08211-06141

$1.61

15

NO DESCRIPTION AVAILABLE This part replaces 25510-02F01.

25510-02F02

Unavailable

16

PLATE, GEAR SHIFT

25512-13E11

$40.17

17

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

18

WASHER, GEAR SHIFT RH | 14X22X1.0

09181-14167

$2.55

19

SEAL, SHIFT SHAFT OIL | 14X22X6.0

09283-14006

$6.04

20

SPRING. GEAR SHIFT PLATE

09440-17009

$1.73

21

SPRING, SHIFT SHAFT

09444-20001

$4.80

22

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

23

ARM,GEAR SHIFT | Includes Item(s) 24 This part replaces 25520-19C02.

25520-19C03

$32.63

24

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

25

ROD, GEAR SHIFT LINK

25525-32C10

Unavailable

26

LEVER ASSY,GEAR | Includes Item(s) 27 - 28 This part replaces 25600-33E00.

25600-33E01

$130.72

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

28

RUBBER

25652-20C00

$4.98

29

NUT

09140-06011

$1.37

30

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.77

31

.NUT

08310-00067

$1.83

32

BASE ASSY, GEAR SHIFT TERM | MODEL V

37730-02F00

Unavailable

32A

BASE ASSY, GEAR SHIFT TERM | MODEL W

37730-02F10

$157.03

33

CLAMP (L:80)

09404-06429

$1.82

34

CLAMP, GEAR SHIFT

31497-45000

$2.17

35

CONTACT, GEAR SHIFT

09209-05011

$2.02

36

SPRING, GEAR SHIFT SW

09440-04010

$1.52

37

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.43

38

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45
