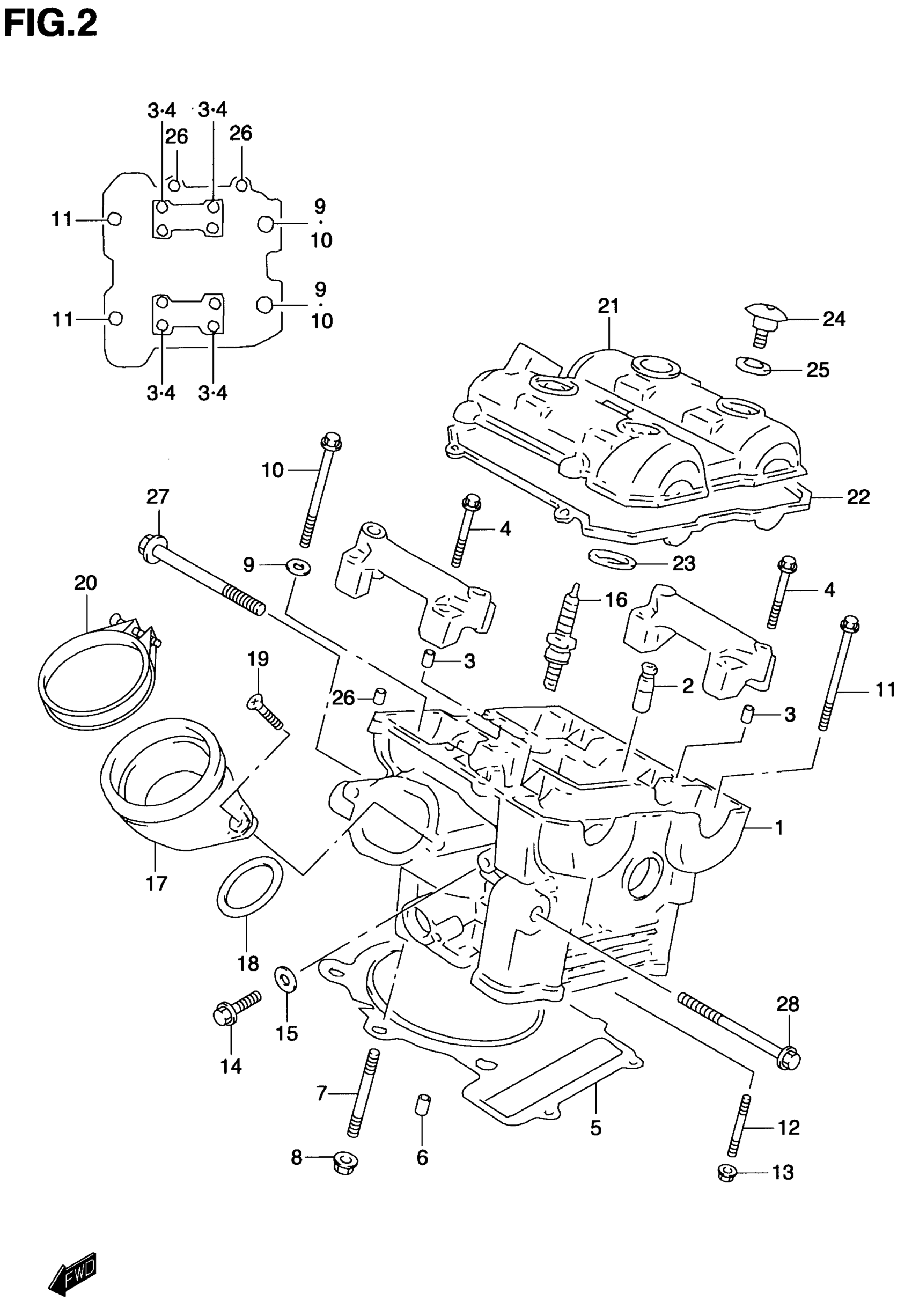

Suzuki TL1000S (2001) REAR CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 11100-02F00.

11100-02F01

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL W This part replaces 11100-02F30.

11100-02F31

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL X/Y/K1; Includes Item(s) 2 - 4

11100-02F31

Unavailable

2

GUIDE, VALVE

11115-32E70

$44.28

3

PIN

09206-08001

$1.77

4

BOLT (6X39)

09103-06026

$1.84

5

GASKET, CYLINDER HEAD | ~E.NO.111954 This part replaces 11141-02F00.

11141-02F01

$40.94

5

GASKET | E.NO.111955~

11141-02F01

$40.94

6

PIN

04211-13189

$2.19

7

STUD BOLT (8X35)

09108-08143

$4.12

8

NUT This part replaces 08316-10083.

08316-1008B

$2.65

9

WASHER

09160-10082

$1.62

10

BOLT (10X175) | MODEL V/W

09103-10276

$14.44

10

BOLT (10X175) | MODEL X/Y/K1

11161-02F00

Unavailable

11

BOLT (6X70)

09103-06103

$2.61

12

STUD BOLT (6X30)

09108-06096

Unavailable

13

NUT This part replaces 08316-10063.

08316-1006B

$2.50

14

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

15

GASKET

09168-06023

$2.01

16

SPARK PLUG (NGK,CR9EK) | ~F.NO.103237

09482-00410

$10.60

16

SPARK PLUG (DENSO,U27ESR-N) | ~F.NO.103237 This part replaces 09482-00411.

09482-00459

$5.58

16

SPARK PLUG (NGK,CR8EK) | F.NO.103238~

09482-00412

$9.72

16

SPARK PLUG (DENSO,U24ETR) | F.NO.103238~

09482-00413

$14.37

16

SPARK PLUG (NGK,CR8EK) | ~F.NO.103237 OPT

09482-00412

$9.72

16

SPARK PLUG (DENSO,U24ETR) | ~F.NO.103237 OPT

09482-00413

$14.37

16

SPARK PLUG (NGK,CR9EK) | F.NO.103238~ OPT

09482-00410

$10.60

16

SPARK PLUG (DENSO,U27ESR-N) | F.NO.103238~ OPT This part replaces 09482-00411.

09482-00459

$5.58

16

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

$13.63

16

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

$16.80

17

PIPE, INTAKE REAR

13101-02F00

Unavailable

18

O RING

09280-55005

$5.88

19

SCREW,6X16 This part replaces 09120-06010.

09120-06010-XC0

$2.29

20

CLAMP This part replaces 09402-70203.

09402-70902

$5.09

21

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 11172-02F00.

11172-02F02

Unavailable

21

COVER, CYLINDER HEAD | MODEL W/X/Y/K1

11170-02F11

Unavailable

22

GASKET

11173-02F00

$33.68

23

GASKET

11178-17E00

$6.08

24

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.07

25

WASHER

09161-11008

$4.06

26

PIN

09206-08001

$1.77

27

BOLT

01550-10807

$5.83

28

BOLT

01550-10707

$5.63
