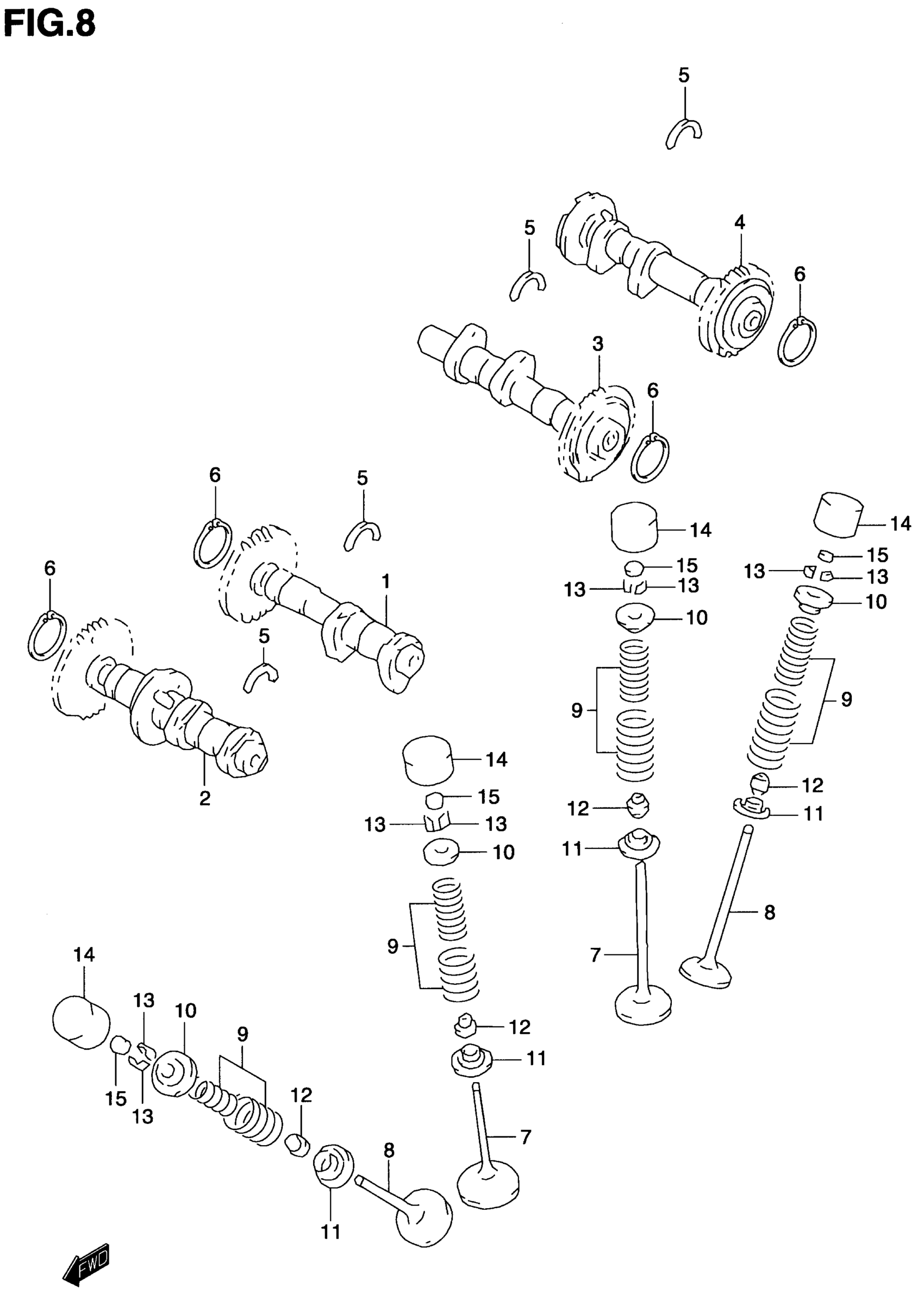

Suzuki TL1000S (2001) CAM SHAFT / VALVE Diagram

#

Description
Price

1

CAM SHAFT ASSY, INTAKE FRONT | MODEL V

12701-02F00

Unavailable

1

CAM SHAFT ASSY, INTAKE FRONT | MODEL W/X/Y ~F.NO.Y2100073

12701-02F40

Unavailable

1

CAM SHAFT ASSY, INTAKE FRONT | MODEL Y F.NO.Y2100074~ This part replaces 12701-02F41.

12701-02F50

Unavailable

1

CAM SHAFT ASSY, INTAKE FRONT | MODEL K1

12701-02F50

Unavailable

2

CAM SHAFT ASSY, EXHAUST FRONT | MODEL V

12702-02F00

Unavailable

2

CAM SHAFT ASSY, EXHAUST FRONT | MODEL W/X/Y ~F.NO.Y2100073

12702-02F40

Unavailable

2

CAM SHAFT ASSY, EXHAUST FRONT | MODEL Y F.NO.Y2100074~ This part replaces 12702-02F41.

12702-02F50

Unavailable

2

CAM SHAFT ASSY, EXHAUST FRONT | MODEL K1

12702-02F50

Unavailable

3

CAM SHAFT ASSY, INTAKE REAR | MODEL V

12703-02F00

Unavailable

3

CAM SHAFT ASSY, INTAKE REAR | MODEL W/X/Y ~F.NO.Y2100073

12703-02F40

Unavailable

3

CAM SHAFT ASSY, INTAKE REAR | MODEL Y F.NO.Y2100074~ This part replaces 12703-02F41.

12703-02F50

Unavailable

3

CAM SHAFT ASSY, INTAKE REAR | MODEL K1

12703-02F50

Unavailable

4

CAM SHAFT ASSY, EXHAUST REAR | MODEL V

12704-02F00

Unavailable

4

CAM SHAFT ASSY, EXHAUST REAR | MODEL W/X/Y ~F.NO.Y2100073

12704-02F40

Unavailable

4

CAM SHAFT ASSY, EXHAUST REAR | MODEL Y F.NO.Y2100074~ This part replaces 12704-02F41.

12704-02F50

Unavailable

4

CAM SHAFT ASSY, EXHAUST REAR | MODEL K1

12704-02F50

Unavailable

5

C RING

09390-22006

$2.47

6

CIRCLIP This part replaces 08331-31266.

08331-3126A

Unavailable

7

VALVE, INTAKE

12911-02F00

$54.60

8

VALVE, EXHAUST

12912-02F00

$80.88

9

SPRING SET, VALVE | MODEL V/W/X

12920-02F00

Unavailable

9

SPRING SET, VALVE | MODEL Y/K1

12920-02F10

Unavailable

10

RETAINER,VALVE SPRING | MODEL V/W/X This part replaces 12931-02F00.

12931-02F10

$13.89

10

RETAINER,VALVE SPRING | MODEL Y/K1

12931-02F10

$13.89

11

SEAT,VALVE SPRING

12933-38400

$4.98

12

SEAL, VALVE STEM OIL

09289-05015

$6.04

13

COTTER, VALVE

12932-24400

$1.98

14

TAPPET This part replaces 12891-02F00.

12891-02F10

$48.15

15

SHIM, TAPPET (T:2.30)

12892-41C00-230

$12.85

15

SHIM, TAPPET (T:2.35)

12892-41C00-235

$13.35

15

SHIM, TAPPET (T:2.40)

12892-41C00-240

$13.35

15

SHIM, TAPPET (T:2.45)

12892-41C00-245

$13.35

15

SHIM, TAPPET (T:2.50)

12892-41C00-250

$13.35

15

SHIM, TAPPET (T:2.55)

12892-41C00-255

$13.35

15

SHIM, TAPPET (T:2.60)

12892-41C00-260

$12.85

15

SHIM, TAPPET (T:2.65)

12892-41C00-265

$12.85

15

SHIM, TAPPET (T:2.70)

12892-41C00-270

$12.85

15

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.12

15

SHIM, TAPPET (T:2.80)

12892-41C00-280

$12.85

15

SHIM, TAPPET (T:2.85)

12892-41C00-285

$13.35

15

SHIM, TAPPET (T:2.90)

12892-41C00-290

$12.85

15

SHIM, TAPPET (T:2.95)

12892-41C00-295

$13.35

15

SHIM, TAPPET (T:3.00)

12892-41C00-300

$13.10

15

SHIM, TAPPET (T:3.05)

12892-41C00-305

$13.35

15

SHIM, TAPPET (T:3.10)

12892-41C00-310

$12.85

15

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

15

SHIM, TAPPET (T:3.20)

12892-41C00-320

$13.10

15

SHIM, TAPPET (T:3.25)

12892-41C00-325

$13.35

15

SHIM, TAPPET (T:3.30)

12892-41C00-330

$13.35

15

SHIM, TAPPET (T:3.35)

12892-41C00-335

$13.35

15

SHIM, TAPPET (T:3.40)

12892-41C00-340

$13.35

15

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

15

SHIM, TAPPET (T:3.50)

12892-41C00-350

$13.35

16

SHIM SET, TAPPET INC.REF.NO.15-5~15-25 (5PCS.EACH) & NO.17 INC.REF.NO.15-5~15-25 | OPT NOT SHOWN

12800-41810

$1,242.87
