2001 Suzuki TL1000S Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

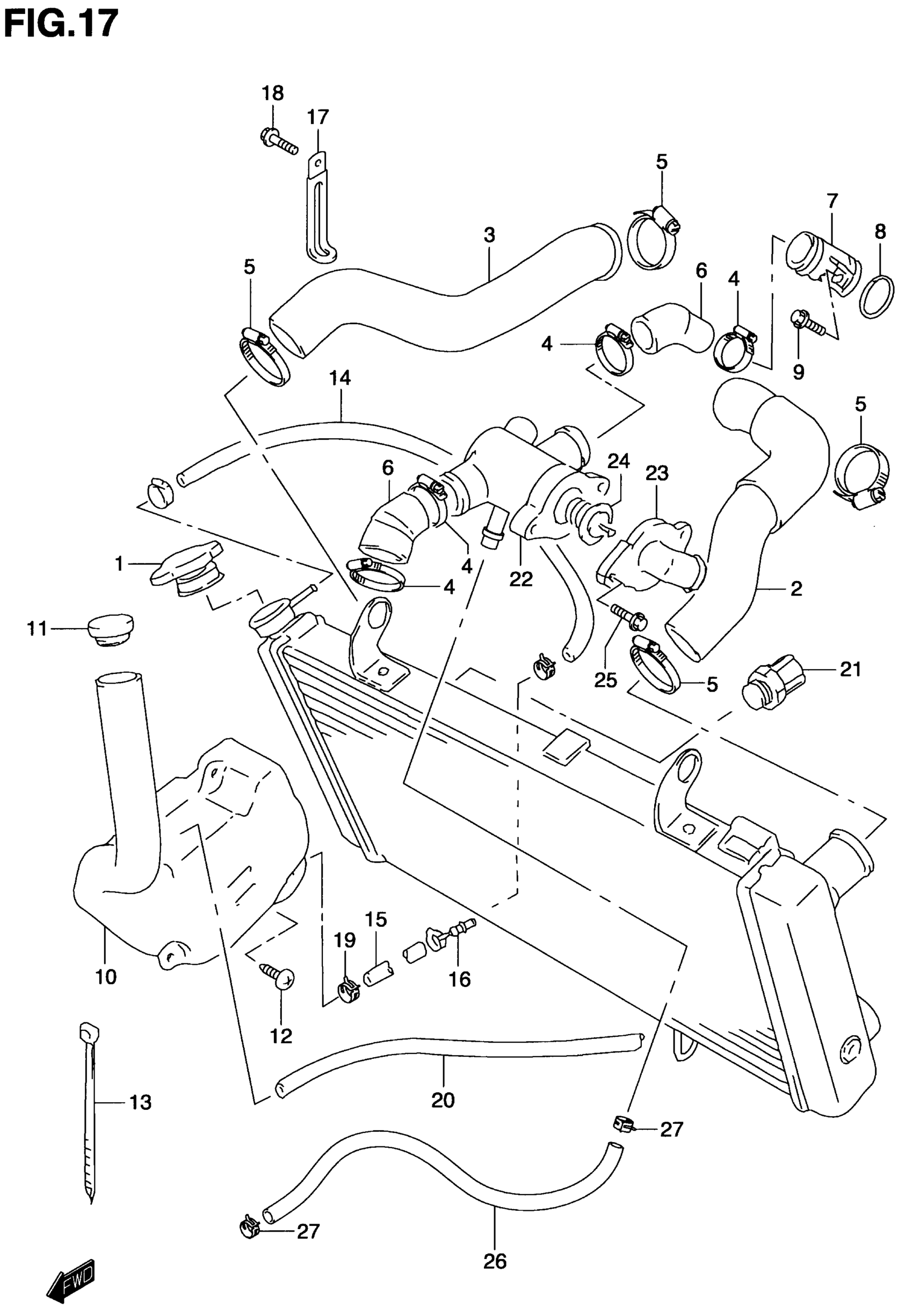

2001 Suzuki TL1000S Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR | MODEL V/W This part replaces 17730-12C01.

17730-08J00

1
Out of stock

1

CAP, RADIATOR | MODEL X/Y/K1 This part replaces 17730-12C20.

17730-08J00

1
Out of stock

2

HOSE, RADIATOR INLET

17851-02F00

1
Out of stock

3

HOSE, RADIATOR OUTLET | MODEL V

17852-02F00

1
Out of stock

3

HOSE, RADIATOR OUTLET | MODEL W/X/Y/K1

17852-02F10

1
Out of stock

4

CLAMP

09402-28511

4
Out of stock

5

CLAMP

09402-38511

4

$11.46

In stock

6

HOSE, CONNECTOR INLET

17853-02F00

2
Out of stock

7

UNION, CONNECTOR HOSE | MODEL V This part replaces 17890-02F00.

17890-06G20

2
Out of stock

7

UNION, CONNECTOR HOSE | MODEL W/X/Y/K1 This part replaces 17890-02F00.

17890-06G20

1
Out of stock

7

UNION, CONNECTOR HOSE FRONT | MODEL W/X/Y/K1 This part replaces 17890-02F10.

17890-06G10

1
Out of stock

8

O RING

09280-18009

2
Out of stock

9

BOLT | MODEL V This part replaces 01550-06163.

01550-0616A

2
Out of stock

9

BOLT | MODEL W ~E.NO.111960 This part replaces 07130-06163.

07130-0616B

2
Out of stock

9

BOLT | MODEL W E.NO.111961~ This part replaces 07130-06123.

07130-0612A

2
Out of stock

9

BOLT | MODEL X/Y/K1 This part replaces 07130-06123.

07130-0612A

2
Out of stock

10

TANK ASSY, RESERVOIR | Includes Item(s) 11

17910-02F00

1
Out of stock

11

CAP

17932-12C00

1
Out of stock

12

SCREW

09136-05034

2
Out of stock

13

CLAMP This part replaces 09407-17401.

09407-17402

1
Out of stock

14

HOSE, INLET NO.1 | L:600?270

09352-50901-600

1
Out of stock

15

HOSE, INLET NO.2 | L:600?180

09352-50901-600

1
Out of stock

16

UNION

09364-06005

1
Out of stock

17

CLAMP This part replaces 09404-06432.

09404-06039

1
Out of stock

18

SCREW This part replaces 03541-05083.

03541-0508A

1
Out of stock

19

CLIP

09401-08411

4
Out of stock

20

HOSE (5X9X600) | MODEL V,L:600?560

09352-50901-600

1
Out of stock

20

1

$34.43

In stock

21

SWITCH,RDTR FAN This part replaces 17680-33E00.

17680-33E01

1
Out of stock

22

CONNECTOR, THERMOSTAT INLET | MODEL V

17662-02F00

1
Out of stock

22

CONNECTOR,THERMOSTAT INLET | MODEL W/X/Y/K1 This part replaces 17662-02F10.

17662-02F11

1
Out of stock

23

CAP,THERMOSTAT CONNECTOR

17663-42E00

1
Out of stock

24

THERMOSTAT,WATE | MODEL V This part replaces 17670-32C10.

17670-32C11

1
Out of stock

24

THERMOSTAT,WTR, | MODEL W/X/Y/K1 This part replaces 17670-50F00.

17670-50F01

1
Out of stock

24

THERMOSTAT, WATER | MODEL V OPT

17670-32C20

1
Out of stock

25

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

26

HOSE, WATER BYPASS | MODEL W/X/Y/K1 This part replaces 17856-02F10.

17854-24F00

1
Out of stock

27

CLIP | MODEL W/X/Y/K1 This part replaces 09401-12409.

09401-12414

1
Out of stock
