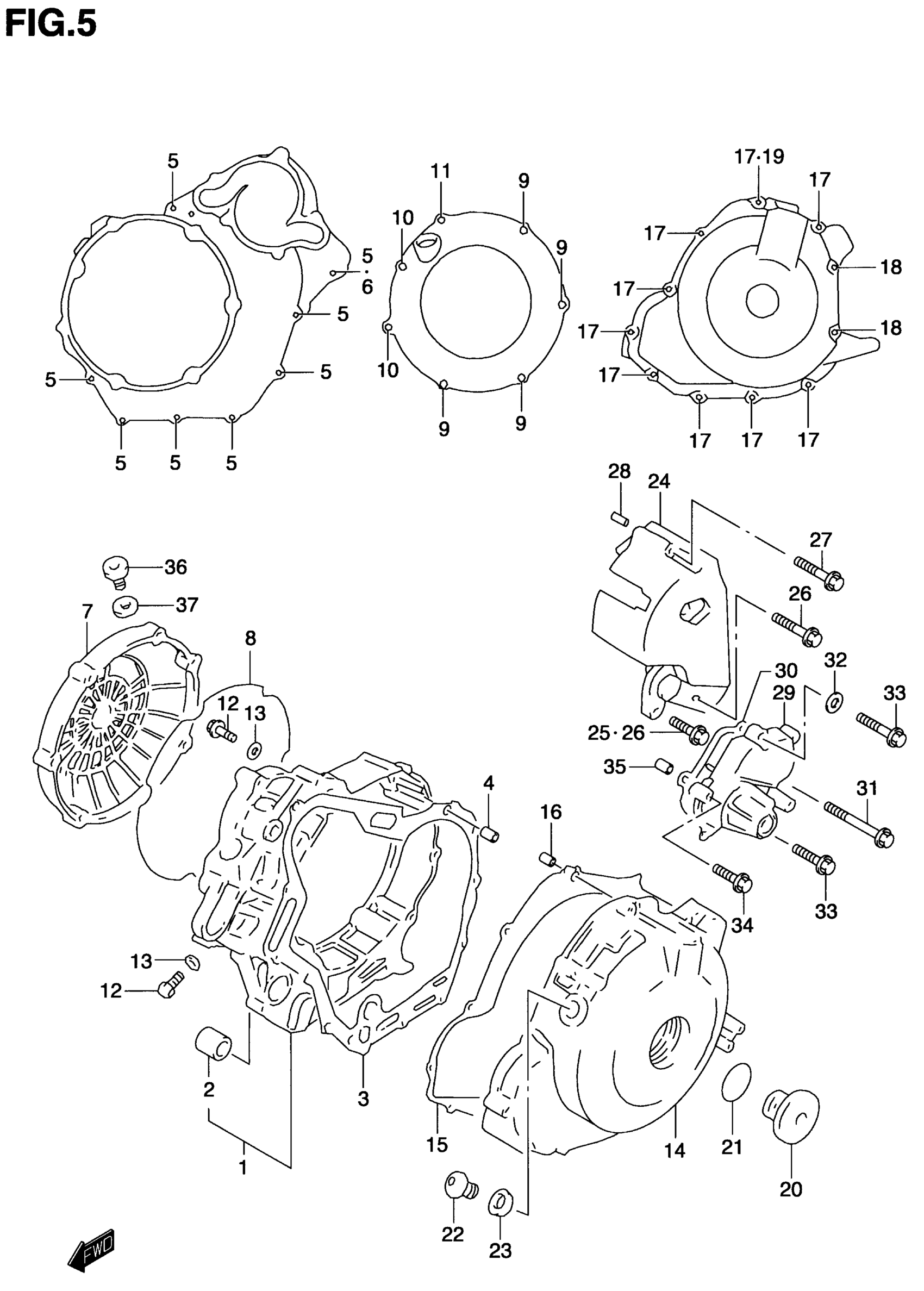

Suzuki TL1000S (2001) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL V This part replaces 11340-02F00.

11340-02F10

Unavailable

1

COVER, CLUTCH | MODEL W/X/Y/K1; Includes Item(s) 2

11340-02F10

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$16.66

3

GASKET, CLUTCH COVER | MODEL V/W/X This part replaces 11482-02F00.

11482-02F10

$22.54

3

GASKET | MODEL Y/K1

11482-02F10

$22.54

4

PIN

04211-09149

$1.64

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

GASKET (5.8X11X1.2) | MODEL V/W/X

09168-06024

$2.19

6

GASKET (5.8X13X1.2) | MODEL Y/K1

09168-06023

$2.01

7

COVER, CLUTCH OUTER | MODEL V ?11370-02F10 W/11484-02F10 01547-06757(2PCS) This part replaces 11370-02F00.

11370-02F10

$178.92

7

COVER, CLUTCH OUTER | MODEL W/X/Y/K1

11370-02F10

$178.92

8

O RING | MODEL V

11484-02F00

$35.80

8

O RING | MODEL W/X/Y/K1

11484-02F10

$21.40

9

BOLT

01547-06307

$2.06

10

BOLT | MODEL V This part replaces 01547-06803.

01547-0680B

$2.92

10

BOLT,CARB | MODEL W/X/Y/K1 This part replaces 01547-06757.

09103-06522

$3.20

11

BOLT

01547-06857

$3.58

12

BOLT | MODEL V This part replaces 01550-06103.

01550-0610A

$1.97

12

BOLT | MODEL W/X/Y/K1 This part replaces 01550-06103.

01550-0610A

$1.97

13

GASKET | MODEL V

09168-06004

$1.43

13

GASKET | MODEL W/X/Y/K1

09168-06004

$1.43

14

COVER,MAGNETO | MODEL V ?11351-02F01 W/01547-06357 This part replaces 11351-02F00.

11351-02F03

Unavailable

14

COVER,MAGNETO | MODEL W/X/Y/K1 This part replaces 11351-02F01.

11351-02F03

Unavailable

15

GASKET, MAGNETO COVER | MODEL V/W/X This part replaces 11483-02F00.

11483-02F10

$16.06

15

GASKET | MODEL Y/K1

11483-02F10

$16.06

16

PIN

04211-09149

$1.64

17

BOLT

01547-06357

$2.01

18

BOLT

01547-06707

$2.77

19

GASKET (5.8X11X1.2) | MODEL V/W/X

09168-06024

$2.19

19

GASKET (5.8X13X1.2) | MODEL Y/K1

09168-06023

$2.01

20

PLUG

09259-36021

$12.45

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

22

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

23

GASKET

09168-14002

$2.83

24

COVER, ENGINE SPROCKET

11360-02F00

Unavailable

25

BOLT | MODEL V

01547-06257

$2.01

26

BOLT | MODEL V

01547-06357

$2.01

26

BOLT | MODEL W/X/Y/K1

01547-06357

$2.01

27

BOLT,CARB This part replaces 01547-06757.

09103-06522

$3.20

28

PIN

04211-09149

$1.64

29

COVER, GEAR SHIFT | MODEL V This part replaces 11381-02F00.

11381-02F01

Unavailable

29

COVER, GEAR SHIFT | MODEL W/X/Y/K1

11381-02F01

Unavailable

30

GASKET, GEAR SHIFT COVER | MODEL V/W/X This part replaces 11485-02F00.

11485-02F10

$4.70

30

GASKET | MODEL Y/K1

11485-02F10

$4.70

31

BOLT

09103-06126

$4.12

32

GASKET (5.8X11X1.2) | MODEL V/W/X

09168-06024

$2.19

32

GASKET (5.8X13X1.2) | MODEL Y/K1

09168-06023

$2.01

33

BOLT (CHROME)

01547-06257

$2.01

33

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

34

BOLT (CHROME)

01547-06357

$2.01

34

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

35

PIN

04211-09149

$1.64

36

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$6.76

37

O RING

09280-17003

$1.64
